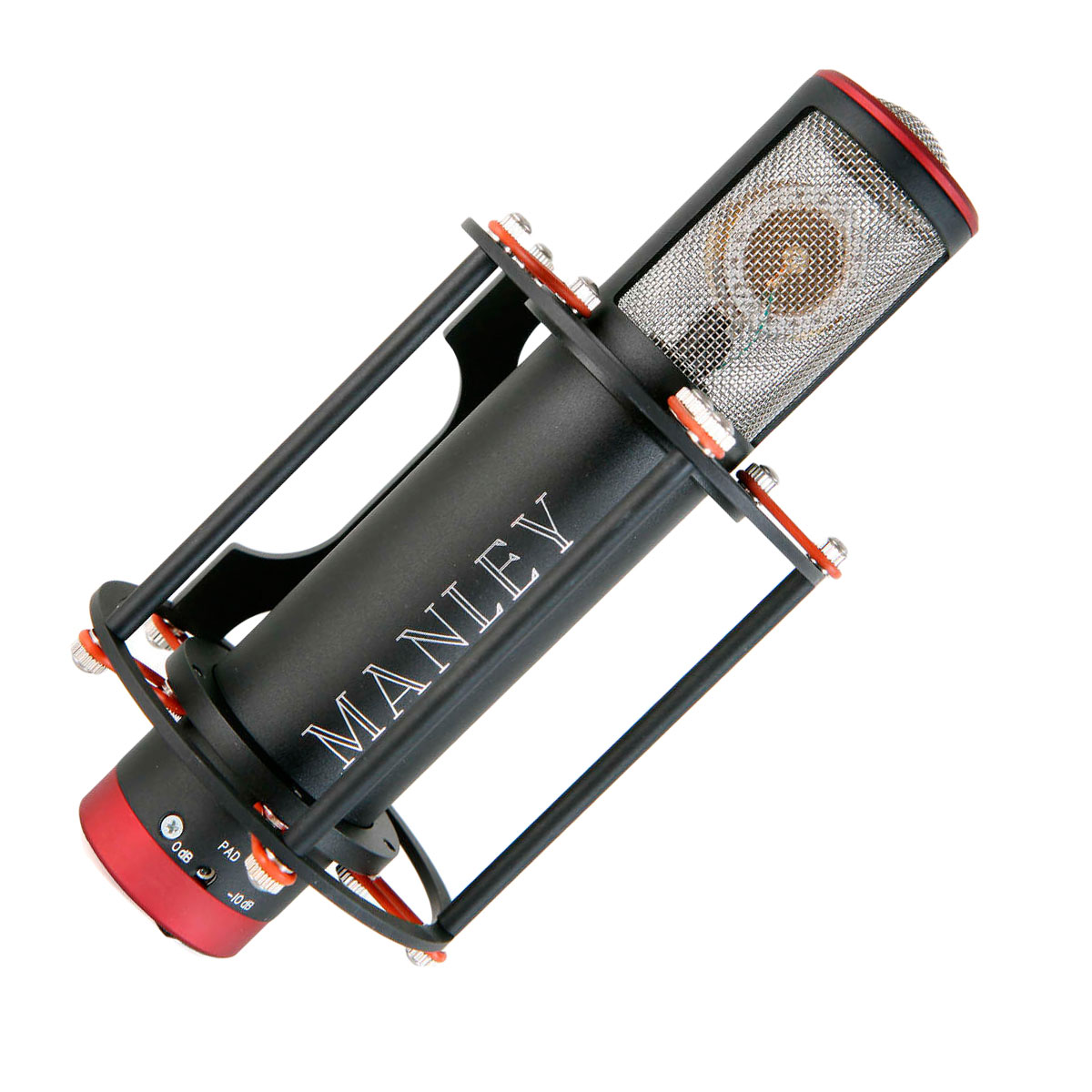

Manley Reference Cardioide Mic Black

Description

The Reference Cardioid Microphone shares the same electronic attributes as the Gold Reference Series, but has a center-fixed cardioid-only capsule with a thicker gauge (6 micron) gold sputtered diaphragm. With the similar film thickness and construction, similar high frequency resonance (a little edge), similar proximity effect and pretty good immunity from pops and sibilance problems, our Reference Cardioid more closely recalls how many of the vintage European tube mics such as the beloved U47 sounded like when they were new. Its rich tonal balance and liquid character is consistently admired for instruments such as guitars, drum overheads, saxophone, and especially vocals. With your present mic, if you find yourself leaning on your compressors and boosting 5 or 10K to score a bit more testosterone, then the Reference Cardioid just might be the mic you’re looking for to cure what ails ya. If you seem to be constantly boosting 12-18K and trying to get a clean, intimate sound, then probably the Reference Gold would be the safest bet.

- All-Tube triode design 12AT7 (2011 build. Previous versions used 12AX7 and 6072.)
-10 dB switchable pad
- Frequency response: 10Hz-30KHz
- Sensitivity: 17mV/Pa
- Noise typically -120dB EIN
- Max SPL: 150dB
- Actual output impedance 200 Ohms
- Weight: 2.25 lbs (mic)
- Weight: 2.5 lbs (PSU)
- Size: 4.5" x 9.7" x 4.5" (mic)
- Size: 5" x 8.2" x 3.4" (PSU)
- Shipping weight: 15 lbs
- Selected matched pairs available
- Outboard Power Supply is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
- Operating Mains Voltage changeable with power transformer re-wiring via internal jumpers and fuse value change.
- Mains Voltage Frequency: 50~ 60Hz
- Mains Fuse: 250mA @ 100~120V; 125mA @ 220~240V operation
- Power Consumption: 70mA @ 120V = 8.4 Watts
Brand reference number: REFCARD

Testimony

5,0 /5
5★
4★
3★
2★
1★
Quality
Quality / price
Use
Ah, the famous Manley Reference Cardioid! If the brand needs no introduction, let's talk about the microphone. Cardioid as its name indicates and equipped with a 12AT7 tube (older models had different tubes, if I am not mistaken), the Reference Cardioid stands out primarily for its very neat, very clean design. The build quality is there and it shows: the finish is perfect. Inspired by vintage German microphones, this mic nevertheless brings a certain modern freshness when plugged in, thanks to its capsule with a diaphragm coated with 6 microns of gold. Very sensitive, it indeed offers a very modern sound full of details. In the bass, it is precise and rather round. In the mids and highs, it is extremely detailed and quite bright, without being harsh to the ear, which is a real plus. Depending on the preamp you use it with (I recommend, for example, Neve-type preamps...), you can influence the tone of the Reference Cardioid to attenuate or, on the contrary, highlight this characteristic brightness, which is very suitable for modern pop recordings (I mainly think of vocal takes, male or female...) In short, an excellent microphone that has its place in any studio producing somewhat modern music!... (Show more)
Certified
Posted on 17/01/2019
By Adrien P.
