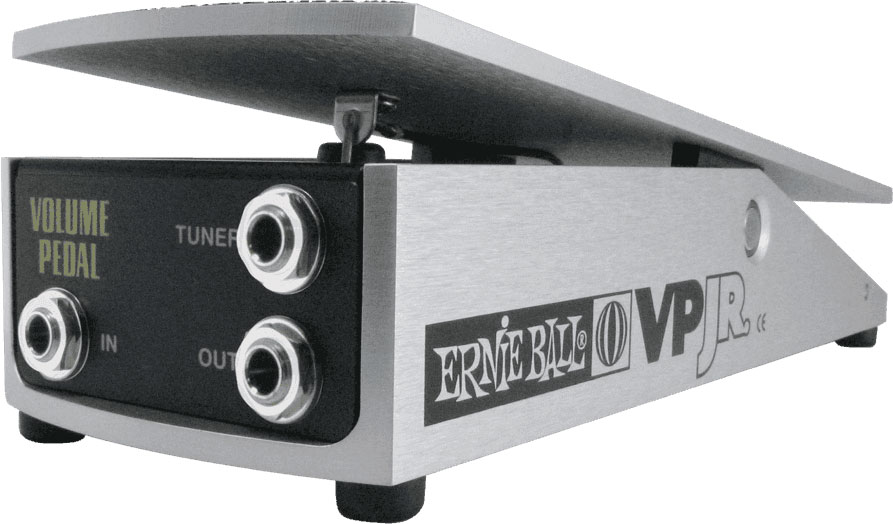

Ernie Ball Effects 6180 VOLUME PEDAL JUNIOR VPJR

Description

Essential Information About the Ernie Ball Volume Pedal Jr 250K

  • Compact format: reduced footprint (approximately 22% smaller than a standard pedal), ideal for optimizing a pedalboard.
  • 250k potentiometer designed according to Ernie Ball specifications, perfectly suited for passive pickup guitars.
  • Dedicated tuner output: stay connected to the amp and tune easily.
  • Curve adjustment via internal mini-switch: two action sensitivities for more gradual or faster swells.

A pedalboard classic, designed for passive instruments

The Volume Pedal Jr 250K follows in the footsteps of Ernie Ball volume pedals, which have become benchmarks for controlling level without touching the guitar's potentiometer. This "Junior" version retains the spirit of the original model while reducing size, and adopts a 250k value specifically chosen to respect the behavior of passive electronics (traditional guitars, most passive basses).

Who is it for, and in which styles?

This pedal is aimed at both beginner musicians and professionals seeking simple, reliable, and precise foot control. It excels in rock, blues, indie, metal, and ambient: volume management in rhythm parts, highlighting solos, crossfading between two guitars, or volume swells in a "violin" style.

Live, it becomes a true personal mixing tool. In the studio, it allows automating volume rises/falls manually... but with the foot, delivering an immediate and musical gesture.

Controls, ergonomics, and design

The Ernie Ball Volume Pedal Jr 250K is an analog passive operation pedal, designed as a "master volume" foot controller. The mini-switch located behind the Jack input, under the moving part, allows choosing between two response curves (two action sensitivities) to adapt the volume rise speed to your playing style.

Its aluminum chassis is built to withstand touring, and movement is transmitted to the potentiometer via a Kevlar cable known for its durability. The potentiometer is connected via connectors, making replacement faster. The rough coating improves foot grip, useful on stage.

Sound

A volume pedal does not intentionally "color" the sound: here, the goal is smooth and musical level control, with good dynamics under the foot. Depending on your signal chain (cable length, buffers, position in the chain), a passive pedal can interact with impedance: placed in the right spot, it remains very natural. On modern pedalboards, it's a classic, used by guitarists across diverse universes, from alternative rock to more experimental textures.

Technical Specifications

Type and compatibility

  • Type: mono "Junior" volume pedal
  • Potentiometer value: 250k (suitable only for passive electronics instruments)
  • Technology: analog (passive operation)
  • Expression pedal: yes

Settings

  • Internal mini-switch: 2 action sensitivities (volume curves)
  • Mini-switch location: behind the Jack input, under the moving part

Connectivity and bypass

  • Input: Jack
  • Outputs: Jack, tuner output
  • True bypass: no

Construction

  • Robust aluminum chassis
  • Potentiometer drive system via Kevlar cable
  • Potentiometer connected with connectors (simplified replacement)
  • Rough coating for optimal grip

Dimensions

  • (W) 8.9 x (L) 25 x (H) 6 cm

Included accessories

  • Power supply: not included (not required for operation)
  • Documentation: according to packaging

Power consumption

  • Required voltage: none (passive pedal)
  • Consumption: 0 mA
Brand reference number: MER 6180

Testimony

5,0 /5
5★
4★
3★
2★
1★
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
Excellent! Be careful, the curve is exponential, so it's not always easy to manage if used as a foot volume knob. For electric guitar effects without attack, it's really good. Quality and sensitivity are top-notch. A plus: very pleasant reduced size.
Certified
Posted on 24/03/2016
By Rémy R.
The top volume pedal in a mini version! Fits perfectly into my Boss BCB-60 Pedalboard. The little extra? The tuner input allows tuning without having the guitar sound on!
Certified
Posted on 02/04/2016
By Gilles P.
ADVISED BY STEPHANE ;; A GOOD VERY GOOD PRODUCT ONLY HAPPINESS SIMPLE EFFECTIVE PRECISE
Certified
Posted on 15/03/2015
By Dominique L.
excellent volume pedal very precise in play a bit expensive but well when you love it!
Certified
Posted on 14/04/2015
By Joel D.
good reliable simple and sturdy product little noise or interference
Certified
Posted on 27/12/2014
By Claude A.
Does its job well, very good volume pedal :)
Certified
Posted on 14/02/2015
By Bryan M.
classic, robust and efficient
Verified
Posted on 24/09/2024
By didier delfino
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
