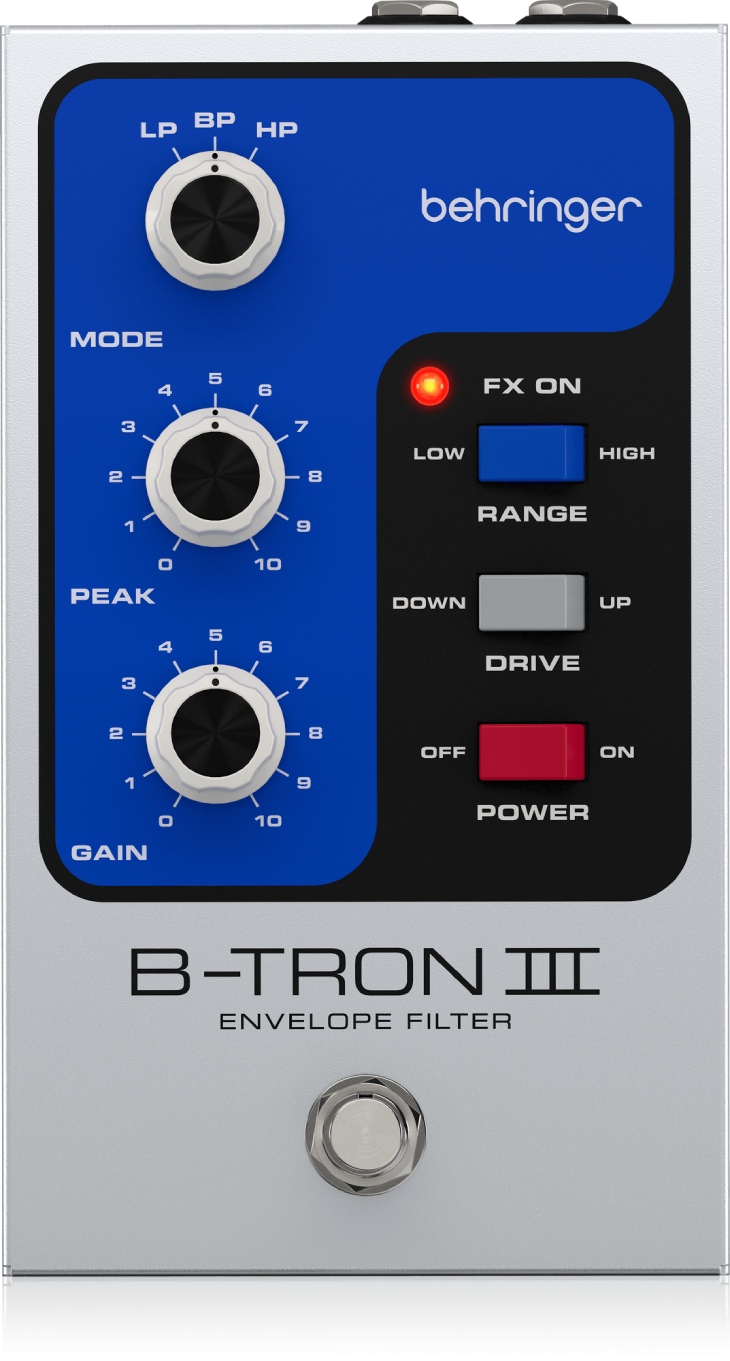

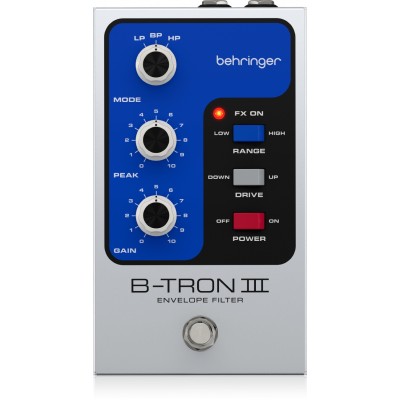

Behringer B-TRON III Envelope Filter

Register here and stay informed about the next restock

Description

Essential Information About the Behringer B-TRON III Envelope Filter Pedal

  • Vintage envelope filter / auto-wah with organic behavior thanks to a 100% analog optical circuit
  • 3 filter types (low-pass, band-pass, high-pass) to go from funky "quack" sounds to sharper textures
  • Up/Down modes to choose the sweep direction and achieve "Wah" or "Wow" sensations depending on your playing
  • True bypass and wide input range, ideal for guitar, bass, and keyboards

An Envelope Filter in the Spirit of the Great Seventies Classics

The B-TRON III follows the tradition of auto-wahs that marked the 1970s, when the envelope filter became an essential ingredient in funk rhythms and elastic bass lines. Here, Behringer relies on a fully analog optical approach to achieve a smooth, very "alive" response that truly follows the attack of the right hand and dynamic variations.

With its various filter modes and performance-oriented settings, it targets the "vocal" and percussive sound associated with vintage pedals, while remaining easy to integrate into a modern pedalboard.

Who Is the B-TRON III For, and Which Styles Does It Excel In?

This pedal is suitable both for musicians discovering envelope filters and for guitarists/bassists already familiar with dynamic effects. It particularly shines in funk, soul, disco, rock, and fusion, but also becomes a very inspiring tool in electro and more experimental textures when placed in front of clean sounds, compressors, or light fuzz.

In live settings, it allows riffs to stand out without increasing volume, simply by sculpting the envelope. In the studio, it proves formidable on bass and keyboards to create rhythmic movements perfectly synced with the playing, without needing to automate a filter in post-production.

Settings, Modes, and Handling: Simple Yet Highly Adjustable

The B-TRON III combines direct controls and switches designed to quickly reach the ideal "sweet spot." The Mode selector lets you choose between low-pass, band-pass, and high-pass filters to adjust the amount of retained bass, mid presence, or sweep brightness.

The Peak control affects resonance (the "bite" and "vowel" effect), while the Gain control adjusts sensitivity and level, handy for switching from single-coil guitars to active basses or keyboards. The Range (Low/High) and Drive (Up/Down) switches complete the setup: you can go from a round, fat, and "bubbling" envelope filter to a sharper, snappier effect, and choose the sweep direction to radically change the feel under your fingers.

Finally, the true bypass ensures an unaltered signal when the effect is off, ideal if you chain multiple gain pedals, a fuzz, or want to preserve the instrument's dynamics.

The Sound

The B-TRON III's sonic signature is its elastic and expressive character: it transforms the attack into a filter movement, delivering a very "speaking" sound. In low-pass mode, you easily get a round and smooth groove, perfect for funk bass and chicken-scratch rhythms. In band-pass mode, the famous "quack" stands out with great projection in the mix. In high-pass mode, the effect becomes brighter and edgier, ideal for parts that need to cut through.

Envelope filters of this family are linked to many iconic sounds (vintage funk, experimental rock, modern textures), and this type of character is found in artists known for their filtered and dynamic effects. The B-TRON III allows you to approach these sensations by adjusting resonance, filter range, and sensitivity to achieve either a subtle, musical sweep or a pronounced "synth-like" effect.

Technical Specifications

Effect Type

  • Envelope filter / auto-wah
  • Fully analog optical circuit
  • True bypass

Modes and Adjustment Ranges

  • Filter types: low-pass, band-pass, high-pass
  • Resonance (Shape / Q): 1.5 to 14
  • Gain: up to +40 dB

Controls and Switches

  • Potentiometers: Mode, Peak, Gain
  • Switches: Range (Low/High), Drive (Up/Down), Power (On/Off)
  • Footswitch: effect activation/bypass
  • LED: activation indicator

Audio Connectivity

  • Instrument input: 6.35mm TS unbalanced jack
  • Amplifier output: 6.35mm TS unbalanced jack

Audio Performance

  • Input impedance: 1 M?
  • Max input level: +30 dBu
  • Output impedance: less than 600 ohms
  • Max output level: +13 dBu

Format and Construction

  • Robust metal housing, vintage aesthetic
  • Dimensions (H x W x D): 61 x 100 x 171 mm
  • Weight: 0.68 kg

Included Accessories

  • User documentation
  • Power supply: not included

Power Consumption

  • Power supply: 9 V DC, center negative (2.1 x 5.5 mm coaxial connector)
  • Recommended adapter: 100 mA or higher
  • Consumption: 0.25 W (about 28 mA at 9 V)
  • Compatible with 9 V battery
Brand reference number: 0709-ALB86-001
