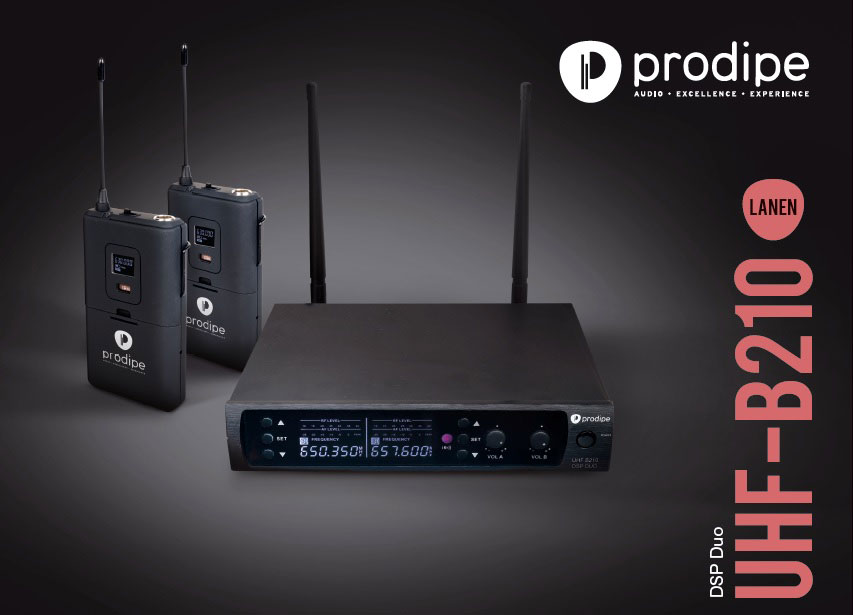

Essential Information About the Prodipe UHF Microphone System "B210 DSP Duo"
- DSP processing offering a clear and precise "wired" sound reproduction in UHF.
- Designed for instrument microphones from the Série 21 (SB21, BL21, VL21, GL21, CL21).
- 630-680 MHz band with management of 2 x 50 frequencies for greater flexibility.
- Range up to 60 m, balanced XLR output and unbalanced 6.35mm Jack output.
From Série 21 to UHF: "Wired" Sound Without the Cable
Designed to transpose the sound of wired microphones from the Série 21 into UHF, the B210 DSP Duo relies on digital processing that preserves the definition and balance of the signal. Instrumentalists and singers alike experience a musicality very close to wired, while gaining freedom of movement.
For Which Uses and Musicians?
Ideal for musicians, concert performers, and demanding artists, this system is suitable for stages, rehearsals, and touring performances. Optionally paired with a P2L lavalier microphone or a headset microphone, it also perfectly meets the needs of conferences and oral presentations.
Key Features and Innovations
High-Definition DSP Processing
The digital processing optimizes the signal to preserve the natural timbre of voice and instruments. The stated dynamic range (>90 dB) and controlled harmonic distortion (<0.1%) contribute to a clean and detailed sound.
Robust UHF Transmission
The electronics are designed to resist interference and ensure signal integrity. The 630-680 MHz band, FM modulation, and a 10 mW transmission power provide a stable connection up to 60 m under normal conditions.
Série 21 Integration and Practical Options
The bodypack directly accommodates your Série 21 instrument microphones (saxophones/brass, double bass, violin/viola, guitar/ukulele, cello). Optional accessories include the
P2L lavalier microphone (small condenser capsule) which preserves voice timbre, while lightweight and comfortable headset microphones are designed for singing, speech, and mobile use.
Connections and Setup
The receiver offers a balanced XLR output and an unbalanced 6.35mm Jack output for easy integration with a mixing console or sound system. The transmitter operates with 2 LR6 (AA) batteries for approximately 8 hours of autonomy, and the receiver is powered by 100-240 V via a 12 V power supply.
Technical Specifications
General
System - Main Functions
- Transmission type: UHF
- Bandwidth: 630-680 MHz
- Frequencies: 2 x 50
- Dynamic range: >90 dB
- Harmonic distortion: <0.1%
- Frequency response: 30 Hz to 20 kHz
- Range: 60 m
System - Transmitter
- Power: 10 mW
- Modulation type: FM
- Power supply: LR6 (AA) 1.5 V x 2 (approx. 8 h)
System - Receiver
- Power supply: AC 100-240 V (50-60 Hz)
- Voltage: 12 V
- S/N ratio: >96 dB
- Sensitivity: RX < -94 dBm
- Unbalanced audio output: 6.35mm Jack
- Balanced audio output: XLR
