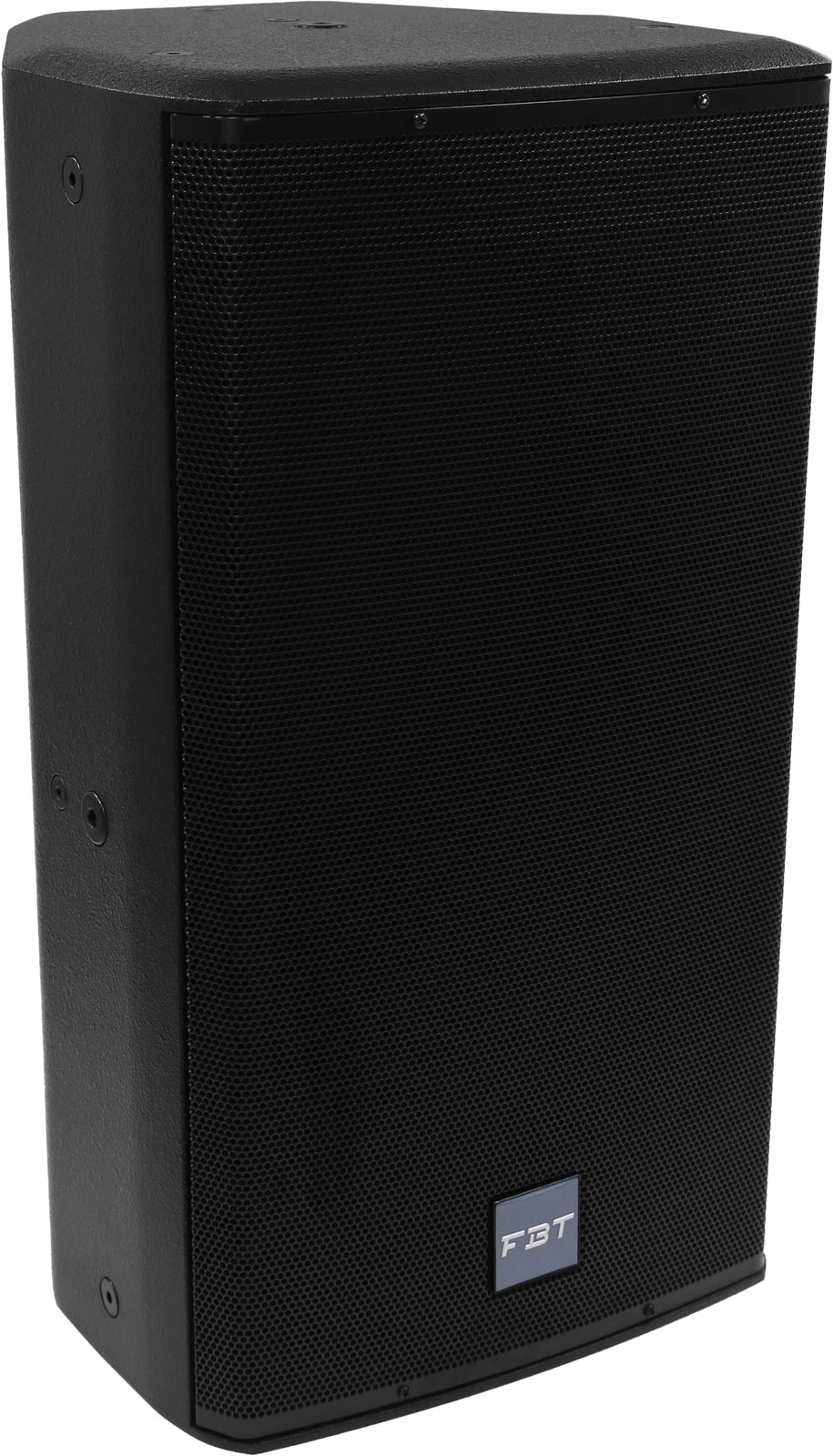

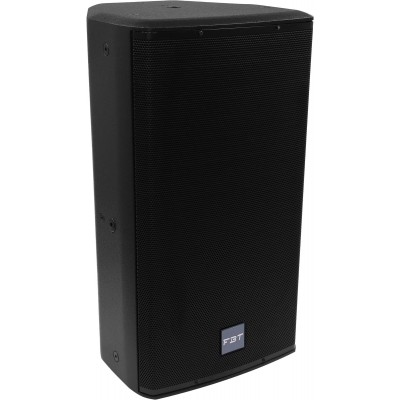

- FBT Install Archon 112
- Passive PA speaker
- Archon Series
- Ref FBT: 36330
- Configuration: 2 channels
- Color: Black
- Recommended amp: 1000 W RMS
- RMS power: 500 W
- Peak power: 2000 W
- Nominal impedance: 8 Ω
- Speaker: âˆ...12" (âˆ...305 mm), coil âˆ...3" (âˆ...76.2 mm)
- Tweeter: âˆ...1.4" (âˆ...35.56 mm), coil âˆ...2.5" (âˆ...63.5 mm)
- Constant directivity, rotating horn
- Dispersion: 70° H x 50° V
- Frequency response: 50 Hz ⢠18 KHz
- Sensitivity: 99 dB (@1W/1m)
- Max peak SPL: 133 dB
- Cutoff frequency: 1.6 KHz
- Recommended high pass filter: 40 Hz - 24 dB/oct
- Housing: 15 mm Baltic birch plywood
- Grille: Steel with dust-proof fabric
- Input connectors: 2x Speakon NL4 + Euroblock
- Setting up / gripping:
- Rear handle
- Base âˆ...35 mm
- Threaded attachment points: 12 x M10
- Accessories included: rotating FBT logo
- Dimensions: 660 x 365 x 380 mm
- Weight: 22 kg
Brand reference number:
FBTARCHON112
