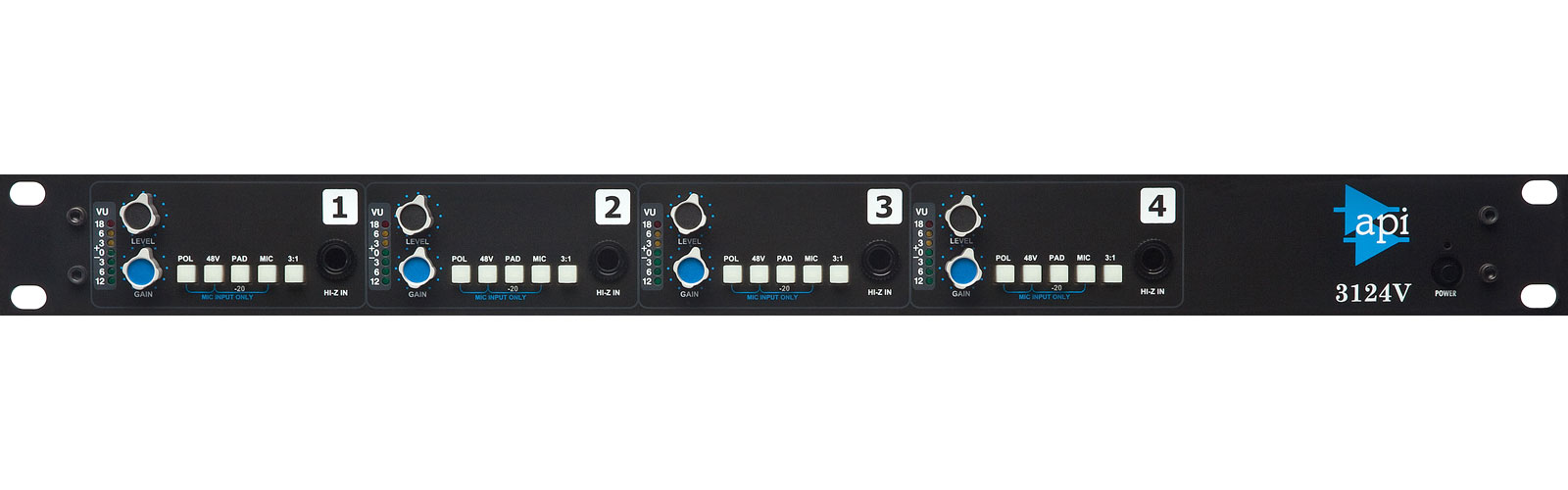

The API 3124V model uses the same mic preamp circuitry found in all API consoles. It features the RE-115 K micro input transformer and the same output transformer as all API products. Additionally, the 3124V offers variable output level control and a 3:1 switchable output transformer selection. The 3124V gives you internal 48V phantom power, selectable for each channel on the front panel. The -20dB attenuator, also on the front panel, acts on the microphone and line inputs.
Features:
- Microphone preamp, instrument, 4-channel line
- Classic PLC circuit design
- API 2520 OP amplifier
- 3:1 output transformer switchable per channel
- +48 V phantom power, -20 dB attenuator pad and polarity switching per channel
- LED meters as well as adjustable output gain and volume per channel
- 4x XLR inputs
- 4x high-impedance inputs: 6.3 mm jack
- 4x XLR outputs
- 19" rack format - 1U
