The Union Audio elara.4 mk2 is the updated version of the compact, four-channel analog DJ mixer, engineered to meet the highest standards in sound and build quality. With new and improved features, the elara.4 mk2 combines classic analog warmth with modern technology in a robust, versatile device. Each of the four channels includes both phono and line inputs, allowing seamless integration of a wide range of audio sources. The thoughtfully designed layout features smoothly weighted 45 mm line faders, precise 3-band EQs, and an intuitive interface?giving DJs full control and creative freedom. Built with carefully selected components, the elara.4 mk2 delivers a warm, rich sound along with outstanding reliability.
Whether you're in the club, studio, or at home, the elara.4 mk2 offers professional-level quality and flexibility. One of the standout features is the Master EQ/Isolator section with a variable crossover, which allows for powerful and creative sound shaping in combination with the channel EQs. A newly added microphone input (XLR) expands the mixer's capabilities to include live vocals, announcements, or streaming use. Combined with a comprehensive cue system and versatile connectivity (including XLR master, booth, and aux outputs), the elara.4 mk2 is the perfect tool for those seeking the ideal balance between tradition and innovation.

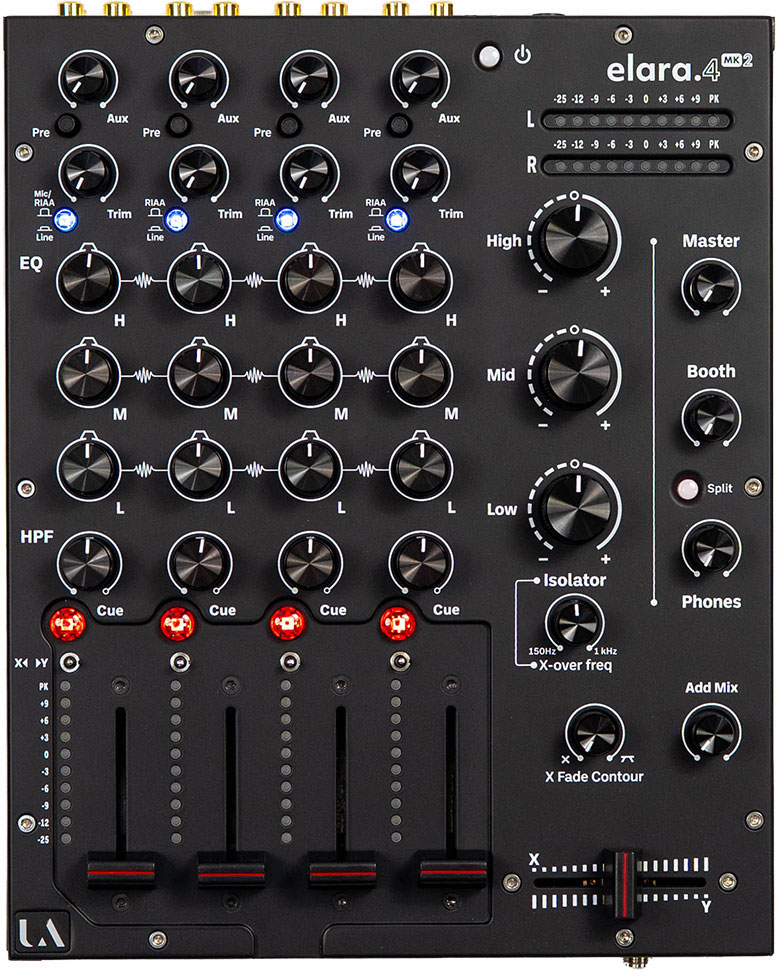

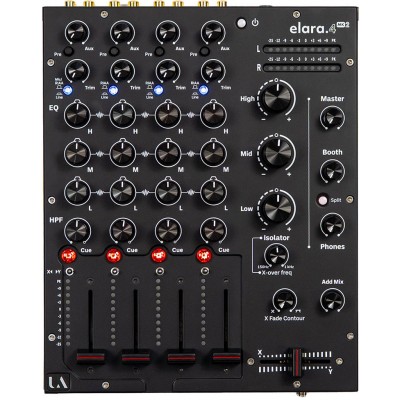

Features: 4-channel mixer with dual (phono/line) inputs per channel Precise 3-band EQ per channel 1 aux send for external effects and advanced routing Switchable aux return/master insert for outboard gear Ergonomic layout with 45 mm line faders and 10-segment LED metering per channel Advanced cue system with split cue and add-mix functions Master EQ/isolator with variable crossover control Innofader crossfader with adjustable curve Microphone input (balanced XLR) - ideal for vocals, announcements, or streaming Universal headphone connectors: 6.3 mm (1/4") and 3.5 mm jack Flexible outputs: balanced XLR master out, 6.3 mm booth out, stereo RCA record out Premium construction with precision-machined metal faceplate Analog circuitry and components for classic, warm sound High-quality build and rugged metal housing for reliable use in clubs, studios, or home setups Universal internal power supply with auto voltage switching for global compatibility Made in the UK
Technical Specifications - Union Audio elara.4 mk2 Mixer Number of Channels: 4 Dual Inputs per Channel: Switchable phono and line Faders: 45 mm linear faders Crossfader: Innofader with adjustable curve EQ: Precise 3-band EQ per channel High-Pass Filter: -3 dB at 1800 Hz (fully open) Channel EQ Frequencies: 200 Hz, 1100 Hz, 2000 Hz Master EQ/Isolator: Variable crossover (150 Hz - 1 kHz) Aux Send: 1 per channel Aux Return / Master Insert: Switchable Cue System: Split cue and add-mix function Channel Metering: 10-segment LED per channel Microphone Input: Balanced XLR Phono/Line Inputs: 4x dual (switchable) Master Out: 2x XLR balanced Booth Out: 2x 6.3 mm jack Record Out: 2x RCA Headphone Outputs: 6.3 mm and 3.5 mm jack Headphone Output Power: 900 mW RMS at 36 Ohm Total Harmonic Distortion + Noise (THD+N): 0.01% (unweighted, 0 dBu, 20 Hz-20 kHz) Frequency Response (Line In ? Mix Out): ±0.5 dB from 30 Hz to 30 kHz RIAA Accuracy: ±0.5 dB from 20 Hz to 20 kHz Fader Attenuation (Shutoff): > -80 dB Channel Crosstalk: < -75 dB @ 1 kHz Residual Noise (Mix Out): < -98 dBu (22 Hz - 22 kHz, unweighted) Noise (Line In ? Mix Out, Unity): < -81 dBu Maximum Output Level (Mix Out, 0.5% THD): +27 dBu Dynamic Range: 108 dB Power Supply: External switching power supply (SMPSU) Input Voltage: 90-260 VAC Output: 18 V DC, 30 W Efficiency: LEVEL VI Front Panel: Precision-machined metal Housing: Premium metal chassis Origin: Made in the UK
Dimensions & Weight: Mixer Dimensions: 23.0 x 28.3 x 8.8 cm (W x H x D, incl. knobs) Mixer Weight: 3.25 kg Shipping Dimensions: 37 x 36 x 19 cm Shipping Weight: 4.85 kg
