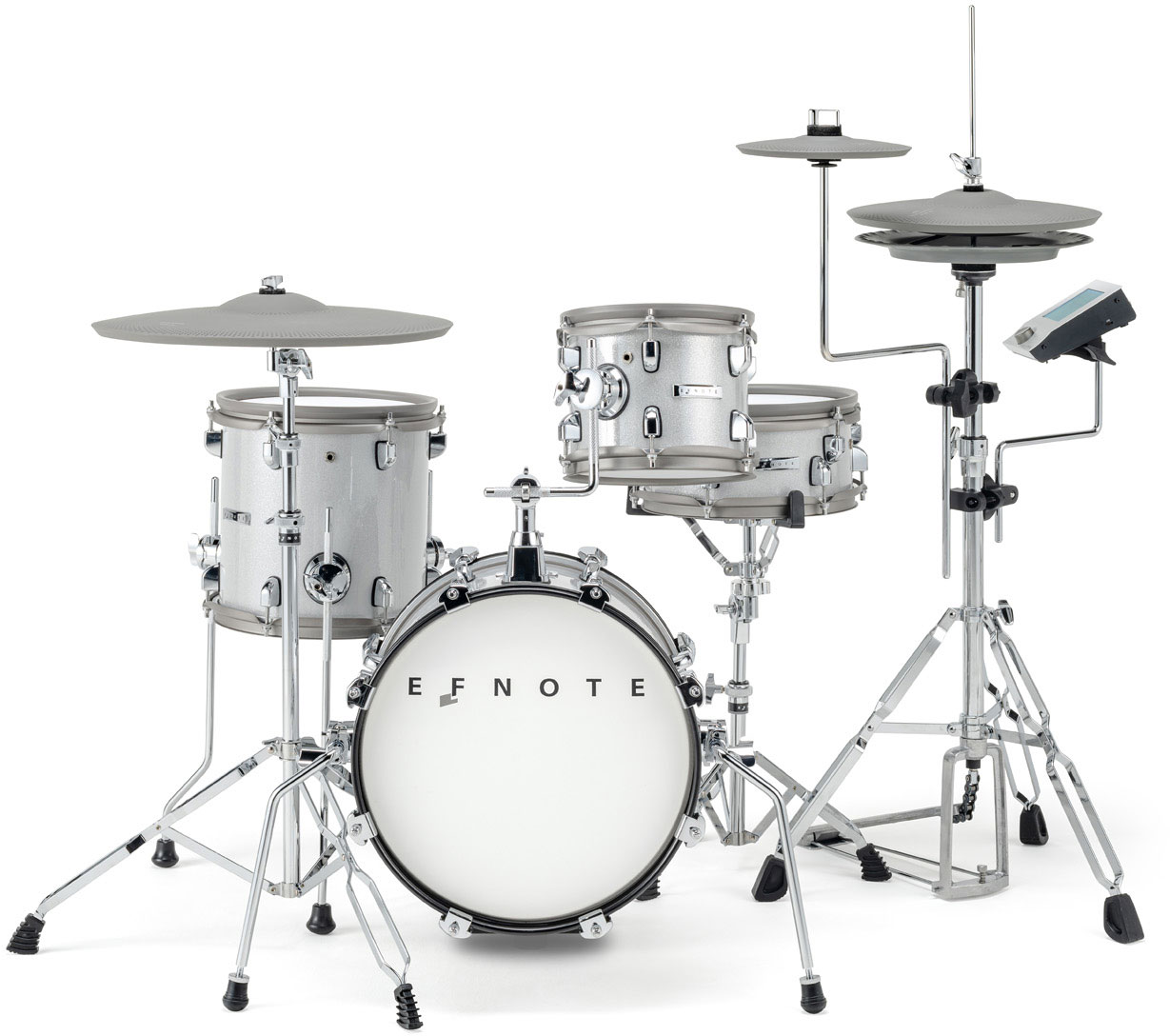

EFNOTE MINI
EFNOTE mini, even more rugged than the compact EFNOTE 5 batteries. The best performance is concentrated in the smallest size, making it unique. You'll be surprised and delighted by the EFNOTE mini. It's also the ideal way for children to really enjoy playing drums. Let them touch real musical instruments from an early age to develop their musical sensibilities and tastes. Establish a quality standard from an early age, adapted to their smaller size.
CHARACTERISTICS:
Sound module:
- Line output (1/2): 2x 1/4" TS Phone (+4dBu, asymmetrical)
- Phones output (3/4) : Téléphone stéo 3.5 mm (320 mW + 320 mW @32Ω)
- Audio input: Téléphone stéo 3.5 mm (+2dBu Max)
- USB: Type C USB 2. 0 Hi-Speed
- Audio: 8-channel output (48kHz/24bit) / 2-channel input (48kHz/16bit), Mac/Windows ASIO
- MIDI: Input/Output
- Bluetooth audio input: (A2DP)
- Bluetooth MIDI input/output: (Bluetooth Low Energy/GATT)
- Bluetooth MT mission frequency: 2402--2480 MHz, Maximum mission power: 2.5 mW EIRP
- Prepared drum kits: 12 (modifiable)
- User drum kits: 18
- Instruments: Acoustic drums/Cymbals (stéréo), Percussions (stéréo)
- Level, pan, tune, étouffement (for each pad)
- EQ à 2-band (for each pad)
- Ambient effects (8 types)
- Power supply DC 12 V, 600 mA (Max)
Delivered without bass drum head, hi-hat stand, throne or headphones.

Configuration:
- 1 bass drum pad 14 "x10"
- 1 snare drum pad 10 "x4. 5" three play zones
- 1 tom pad 8 "x6.5" two play zones
- 1 bass tom pad 10 "x10" two play zones
- 1 hi-hat pad 12" two play zones
- 1 Splash/Crash cymbal pad 8" three play zones with é tufting function
- 1 Ride 16" cymbal pad with three play zones and tufting function
- Maillaillées 2-Ply skins
- Dimensions: Approx. 115 (L) x 70 (W) cm
- Tom Stand, Splash Stand, Module Stand included
- EFD-SS10 Snare Stand
- EFD-CS3 Cymbal Stand
SPLASH CYMBALS 8“ À LA RIDE 20“
Playing area à 360° multi-sensor Cymbal ride à 3 zones (curve/edge/bell) and Splash/Crash (curve/edge). 360° free-swinging design and active thin edge.
FÛTS MULTI-CAPTEUR
Multiple sensors for a dynamic sound high résolution
SPECIALISÉ E IN ACOUSTIC SOUND
True Sound Collection
Newly recorded vintage drum and cymbal collections, including a 12-inch snare and a 10-inch crispy hi-hat.
Perfectly reproduces raw drum and ambient sounds
All acoustic drum/cymbal sounds are carefully recorded and mastered by EFNOTE.
PLAYER-CENTERED DETECT
ELISE™, EFNOTE's award-winning detection processor
The "Stroke Scope" displays your hit points on a timeline.
The "Accuracy Score" evaluates the accuracy of your strokes.
ULTRA COMPACT SOUNDMODULE
Ultra-compact form with complécifications Ergonomic operation with touchscreen For a nicer look of the whole kit

CONNECTIVITÉ
- The Bluetooth audio input lets you listen to Spotify™ / YouTube™ with your smartphone.
- USB (type C) supports 2-in/8-out audio and 16-channel MIDI for multitrack recording on your Mac/PC
- 3.5 mm (1/8") headphone output
- 3.5 mm (1/8") audio input for audio players
- 2 1/4" jack outputs for speakers
