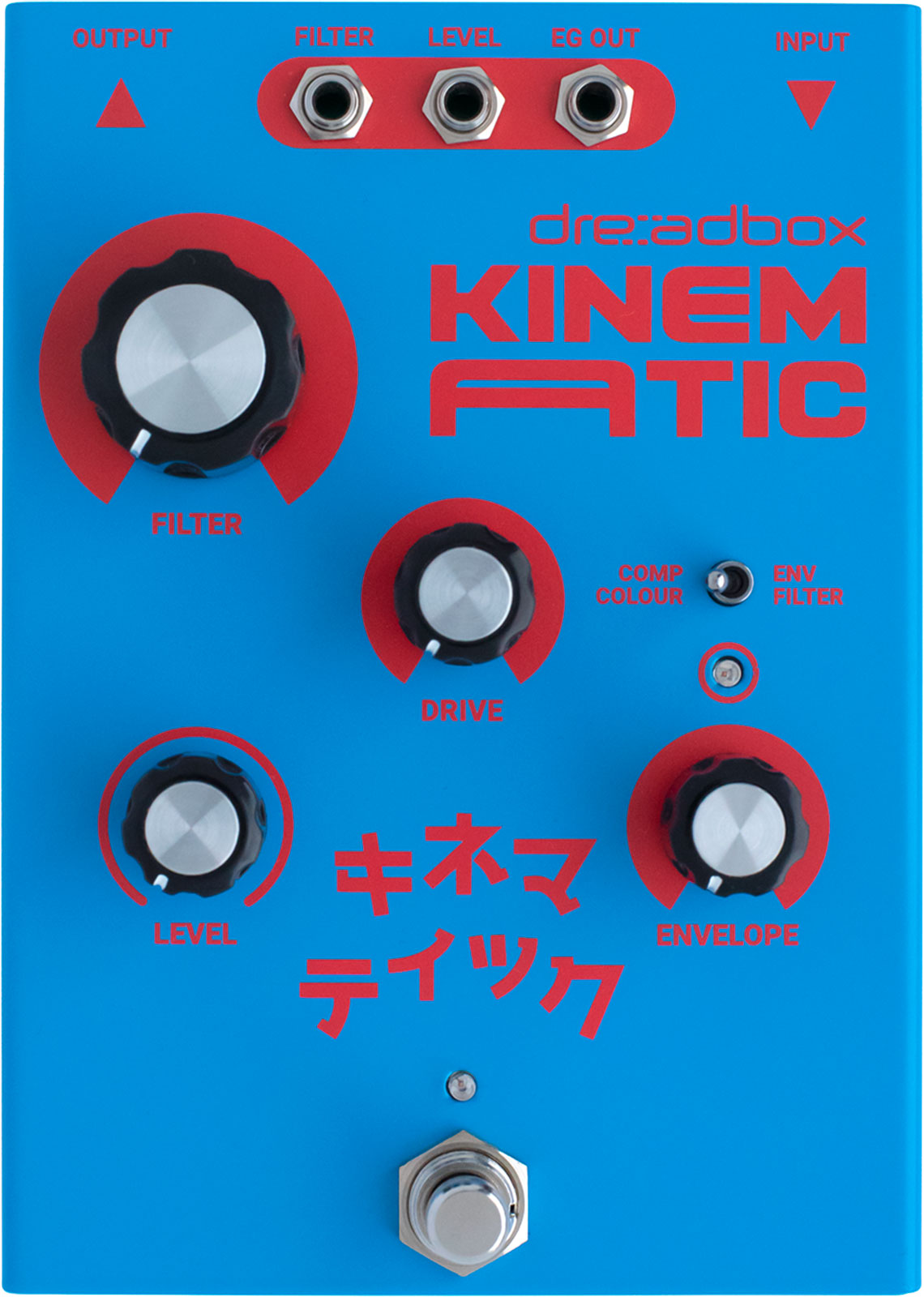

The Dreadbox KINEMATIC is a VCA based Compressor and an Envelope Filter effect pedal suitable for fretted instruments and synthesizers, with eurorack compatibility. This is not all however ; KINEMATIC features an integrated drive circuit that can add soft overdrive up to big, fat distortion to your sound. The Envelope Filter provides a slow envelope curve that can be used as Auto Wah or Low Pass Filter, while the Compressor offers a substantial level boost in addition to providing soft to limiting brickwall-style compression. Its three patch points grant CV control over the Filter and Level knobs and provide you with an EG output, making the KINEMATIC a perfect device for synth fans.
Features
Compressor / Filter Effects Pedal
Fully Analog VCA based Compressor
offers Level Boost up to +18dB
Envelope Filter with slow Envelope curve useable as Auto Wah or Low Pass Filter
2 modes of operation :
COMP COLOUR : Compressor with Frequency Booster
ENV FILTER : 12 dB Low Pass Filter with Auto Wah
Integrated post Diode Overdrive Circuit :
adds drive in the end of the circuit
Extreme compression ratio for brickwall style limiting compression
3 patch points to interact with modular and CV gear :
FILTER : accepts CV to control the Filter at +/- 5V
LEVEL : accepts CV to control the Filter at +/- 5V
it
