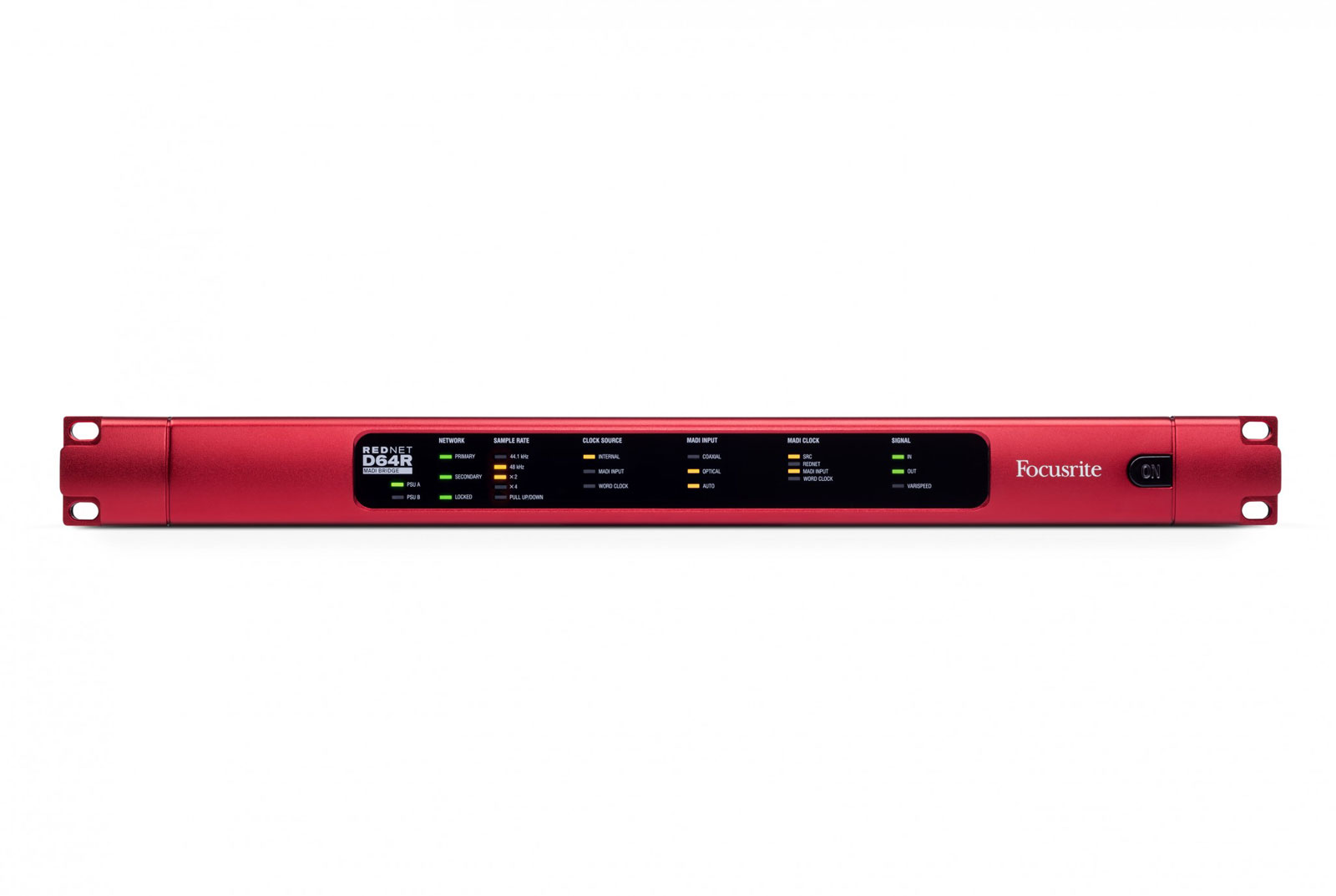

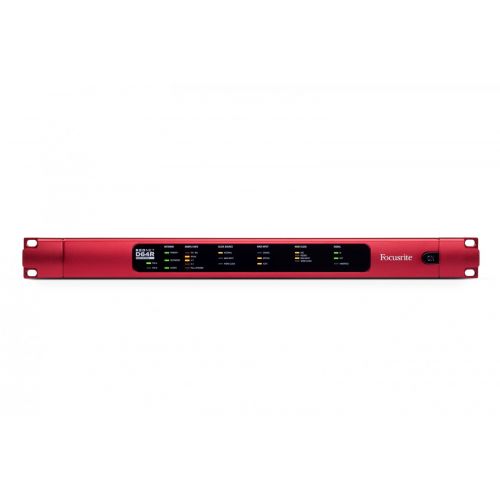

The D64R interface allows any MADI/AES10 system to be integrated into your RedNet network and supports up to 64 channels whether your MADI system uses an optical or coaxial connection. The D64R benefits from an asynchronous sample rate converter (ASRC) per channel which allows you to freely interface a MADI system and a RedNet system whatever the sample rate at which each operates.
Features - Supported sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz - 2x Dante network connection - Coaxial and optical MADI input and output - Wordclock input and output - Redundant power supply (2 integrated power supplies) - 19" rack format - 1U - Dimensions: 482 x 308 x 44mm - Weight: 4.32kg
