A New Era Begins

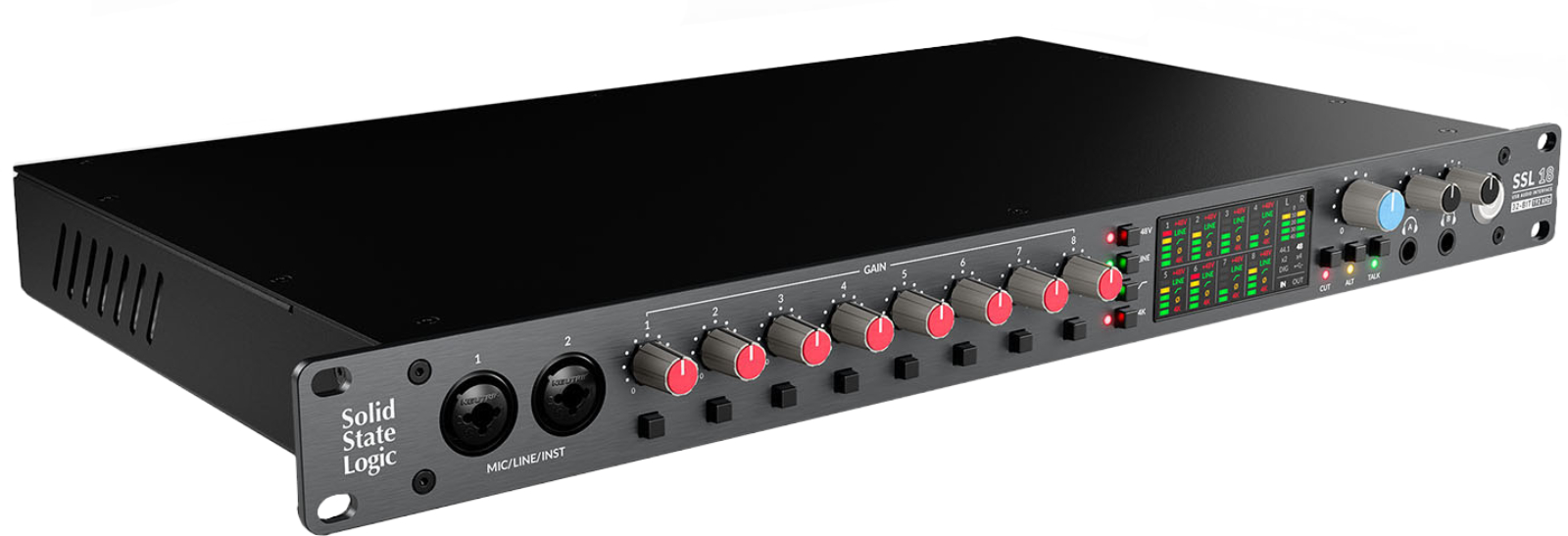

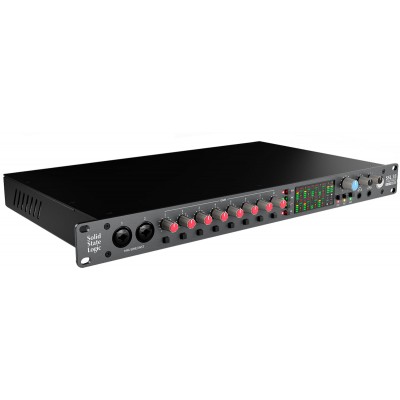

Introducing the SSL 18, Solid State Logic’s first-ever rackmount USB audio interface. Built on our unmatched expertise in analog and digital design, the SSL 18 delivers exceptional audio performance and a studio-ready feature set, with the signature SSL sound and superior quality that professionals trust. Welcome to a new era of rackmount audio interfaces. The SSL 18 exceeds expectations for a 19" rackmount USB audio interface in its class.
Best-in-Class Audio Performance
Its next-generation 32-bit/192kHz converters allow the SSL 18's analog design to impress! With an unmatched 120dB dynamic range on all mic, line, and instrument inputs, capturing your sources like never before. Enjoy 125dB dynamic range on the monitor and line outputs to listen to your music with uncompromising fidelity. Need to practice with headphones? No problem, with the unbeatable 120dB dynamic range offered by the dual headphone outputs.
Legacy 4K Analog Behavior
SSL 4000 Series (often referred to as "4K") consoles are renowned for imparting a unique "mojo" to sounds and instruments that pass through them. This "mojo" comes from the multiple stages of distortion harmonic distortion of compressors, VCA faders, and other crucial components such as solid-state mixing amplifiers. Using modern components, SSL has developed a circuit that distills these two essential characteristics of 4K sound into a single design. Legacy 4K Analogue Enhancement injects a finely tuned, smooth-sounding harmonic distortion and a high-frequency EQ boost to bring the high frequencies “to the fore” while remaining highly musical, giving your sound the 4K mojo and presence that artists and engineers have loved for decades.
Features:
- USB audio interface
- Resolution: 32 bits/192 kHz
- 2 microphone/instrument/line inputs on XLR/6.3 mm jack combination sockets
- 8 microphone/line inputs on XLR/6.3 mm jack combination sockets
- Talkback Mic input on XLR/6.3 mm jack combination socket
- 2 ADAT 44.1 / 48 kHz inputs (8 channels at 96 kHz)
- 2 S/PDIF inputs (coaxial or optical)
- Word Clock input on BNC
- MIDI input/output on 3.5 mm mini jack
- 10 line outputs on 6.3 mm balanced jack (+9 dBu / +24 dBu optional for outputs 1/2 and 3/4, Send 9/10)
- Return on 2x 6.3 mm jack
- 2 stereo headphone outputs on 6.3 mm jack - separately adjustable with 3 impedance levels (Standard / High Sensitivity / High Impedance)
- USB-C port
- +24 dBu working level for all inputs and outputs
- 120 dB dynamic range on all headphone inputs and outputs
- 125 dB dynamic range on monitor and line outputs
- 8 microphone preamplifiers (67 dB gain range, -130.5 dBu ON, +48 V, 120 dB dynamic range, HPF, 4K switch)
- Inputs 1/2 switchable to instrument level
- Talkback input with integrated Listen Mic compressor (also usable as line input for stems with LMC)
- Legacy "4K" switch for sound coloring based on the SSL 4000 series
- Stereo loopback with selectable loopback source
- Included: SSL Production Pack software
- Control via the free SSL 360° app
- Dimensions (W x H x D): 482 x 294 x 43 mm
- Weight: 4 kg
