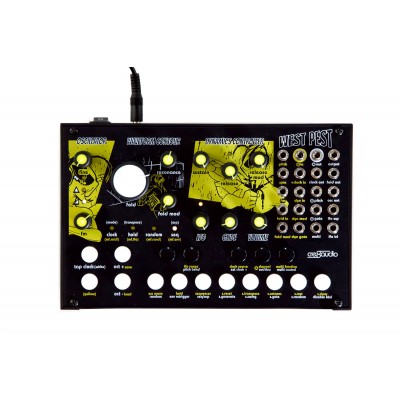

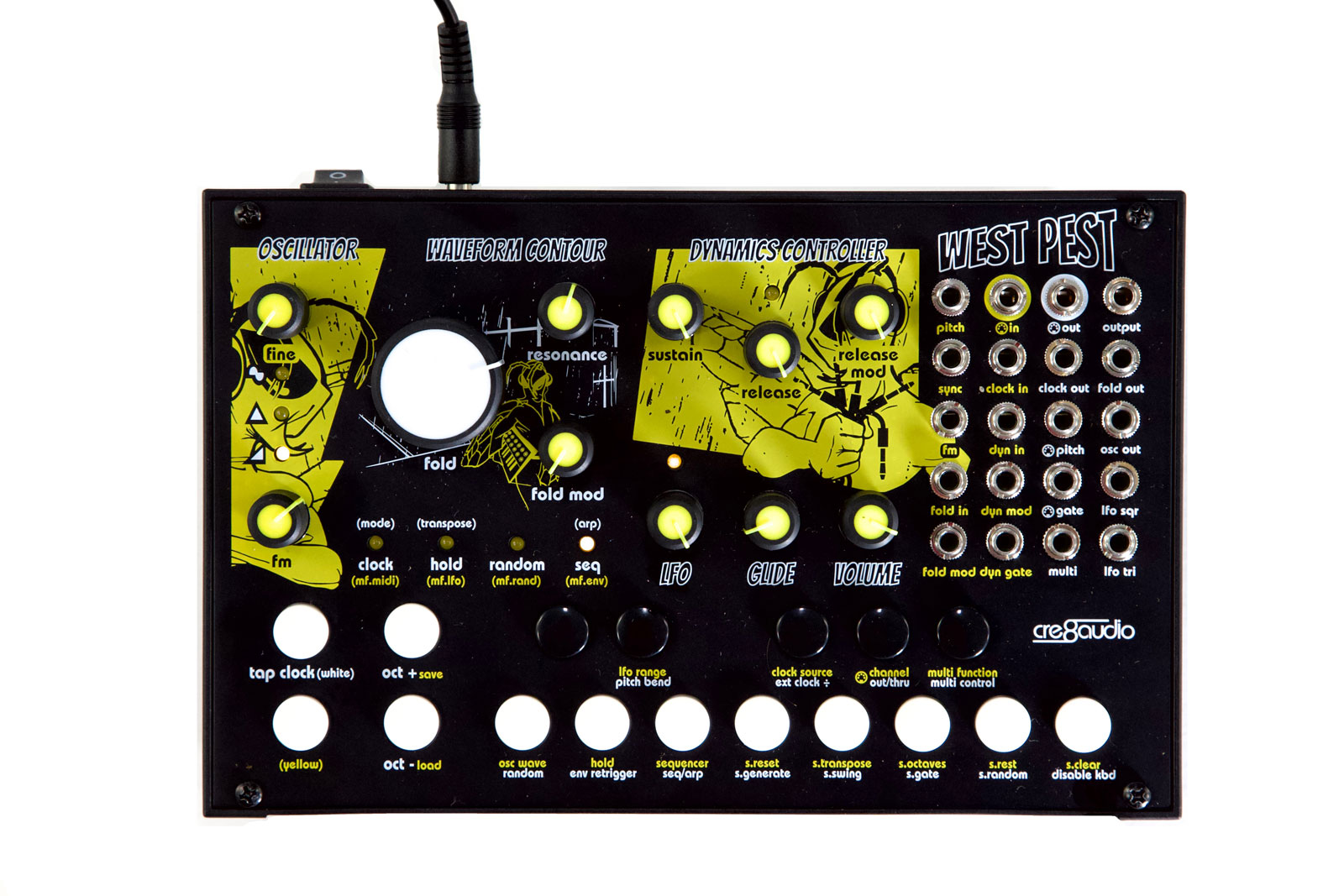

West Coast style monophonic synthesizer with additive elements
Controllable via MIDI, CV, and built-in button keyboard Fully patchable - use the West Pest components as separate modules with external devices or reroute its internal patching. (It's like having 8 individual modules).
32 step sequencer with up to 13 presets
Generative sequencing mode
Clock-synchronized arpeggiator
The step sequencer can be manipulated and transposed via MIDI and the built-in button keyboard. Pittsburgh Modular Synthesizer developed 100% analog oscillator
Oscillator waveforms - sine, triangle and saw - waveforms can be combined.
The oscillator includes frequency modulation (FM).
The famous Pittsburgh Modular Synthesizer wave shaping circuitry - folds the input waves back on themselves to increase harmonic content.
PGH Dynamics Section - an alternative to an envelope generator and VCA, the Dynamics Controller is a Pittsburgh Modular invention that adds a control dimension to a vactrol-free low-pass gate circuit, adding a release time. (more on this in the user guide)
Dual range analogue LFO with square and triangle wave outputs. LFO Range High: 2 Hz to 500 Hz Low: 41 seconds to 5 Hz
Digital multi-modulation tool - CV modulation control, random generator, and additional LFO and envelope generator.
Internal clock with tap tempo and can be clocked by an external source Built-in clock divider
Can be used standalone in its included case or removed and used as a module in eurorack format
Specifications for use as a eurorack module
Width when used as a module = 40hp Depth = 25mm 250mA power consumption with +12V rail 190mA power consumption with -12V rail Oscillator input voltage range = 0-10V
Included in the box - 1x West Pest, 1x power supply 5x Nazca Noodles patch cables, 2x 3.5mm to 5 pin MIDI Din
