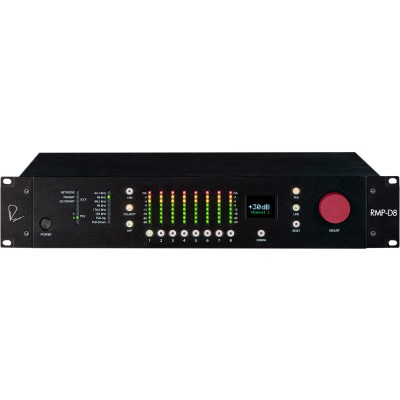

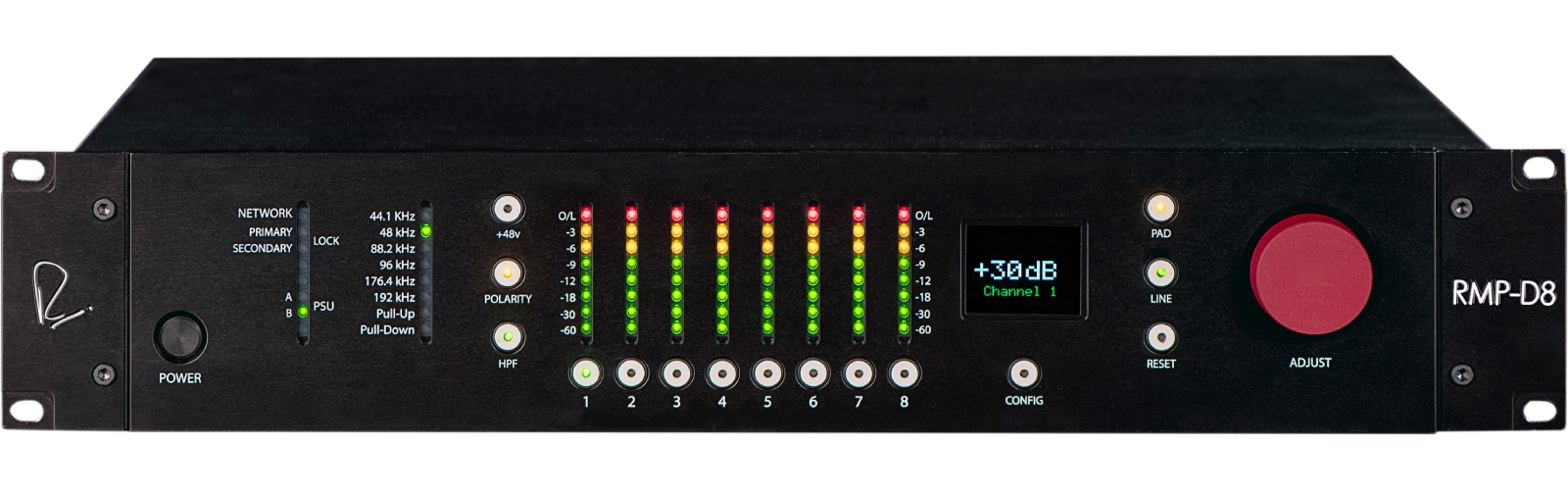

Over the past decade, the world's leading audio engineers have chosen Rupert Neve Designs as one of the only analog rigs that can accompany their tours. With mastering-quality 24-bit 192kHz converters and full Dante protocol integration, the RMP-D8 finally offers the live world what studios have always coveted: Rupert Neve Designs sound.
The heart of the RMP-D8 lies in the modular mic preamp boards adding Mr Rupert Neve's custom transformer design. Unlike other Dante integrated mic preamp models that rely primarily on a single IC for gain and tone, each channel of the RMP-D8 is equipped with a Class A mic preamp, powering a custom, standards-compliant transformer. high levels of Rupert Neve Designs standalone preamps.
The RMP-D8's audio signal will work with any Dante device in environments ranging from concert halls, clubs to studios. Overall, the RMP-D8 brings the classic sound of Rupert Neve Designs to a connected world with the Dante protocol.
Features
- 8-channel Dante microphone preamplifier
- 8 microphone/line inputs with transformers (XLR / TRS jack combo)
- Switchable per channel: +48V phantom power, 80 Hz high pass filter, phase inversion and -10 dB attenuator
- AD converter with 24-bit / 192 kHz resolution
- 8 AES digital outputs (4x XLR)
- 2 Ethercon connectors for primary and secondary Dante networks
- Redundant power supply unit with lockable device socket (2x IEC C14)
- USB port for firmware updates
- Frequency response: 30 - 45000 Hz
- Gain range: 60 dB
- Signal-to-noise ratio: 84.4 dB
- Dynamic range: 110 dB
- Maximum input level: +25.5 dBu
- 19" rack format - 2U
The heart of the RMP-D8 lies in the modular mic preamp cards featuring Mr. Rupert Neve’s custom transformer designs. Unlike other integrated Dante mic preamp designs that rely primarily on a single IC for gain & tone, each channel on the RMP-D8 has a fully-realized class-A microphone preamplifier feeding a custom transformer, maintaining the high standards of Rupert Neve Designs’ standalone preamplifiers.
The RMP-D8’s audio signal will work with any Dante device across settings ranging from concert halls to arenas, clubs, studios, houses of worship, and educational facilities.
All in all, the RMP-D8 brings the classic sound of Rupert Neve Designs into the Dante-connected world.
Features
• 8 mic / line inputs with 48V phantom power, polarity reverse, input pad & high-pass filter controls
• 1dB-stepped class-A mic preamplifiers with 60dB gain and remote control capability
• Custom Rupert Neve Designs transformers for the larger-than-life tone of Rupert’s classic modules
• 24-bit / 192kHz Mastering-Grade Converters with precision-controlled internal clocking and enhanced jitter reduction
• Ultra-reliable, redundant power supplies capable of operating anywhere in the world
• Dante integration with redundant network ports for reliability
• Gain-compensated secondary output
• 4 dual-channel AES outputs on XLR connectors
• Large OLED display with full local control,· accurate and easy-to-read meters
• Compatible with Dante Virtual Soundcard and Dante Via for direct computer integration
• Reinforced steel chassis for enhanced RF shielding and rugged touring use in challenging environments
