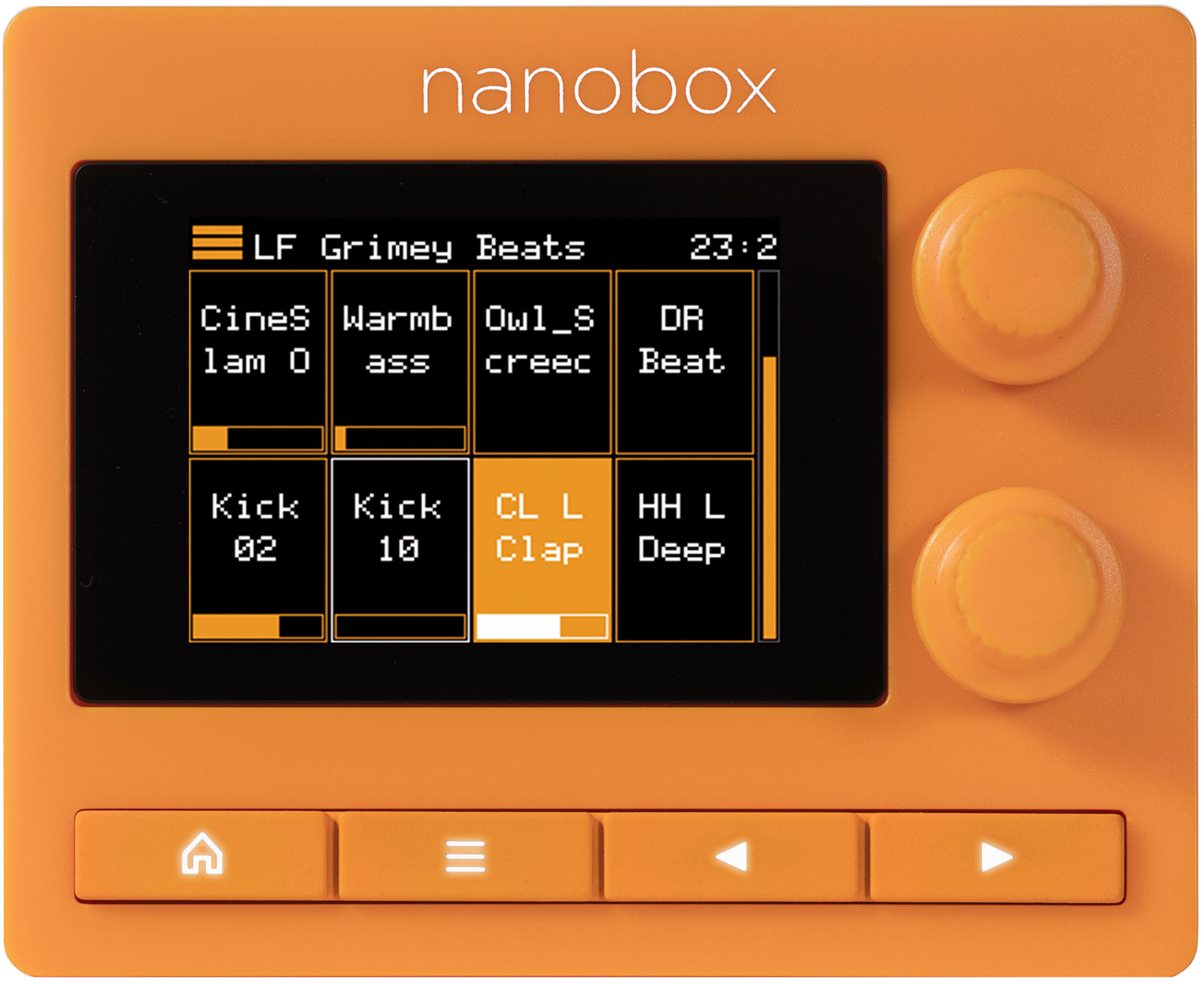

The Nanobox Tangerine delivers powerful sampling in an ultra portable form factor. With this Nanobox, you can add recording, sample playback, clip launching, slicing, and musically intelligent looping capabilities to your desktop or travel rig. With an intuitive touch screen interface, Nanobox Tangerine makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via MIDI. Load multi-sample banks with over 500 samples for amazing instrument reproduction. Tweak your configurations to get them just right, then save them to multiple presets for future reuse.
TOP Features
Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Play multi-sample banks with up to 16 velocity layers and 576 WAV files loaded in one preset
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen or MIDI input as one shots or melodic notes
Control how samples start and stop by choosing from trigger, toggle, gate and piano (New!) launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, level, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, and MIDI note and channel mapping
Quickly and easily use MIDI mapped controls for more tactile access to common parameters
Record up to 16 sequence layers per preset.
Get into the groove with a fast, fluid, and intuitive workflow
Make music anywhere thanks to a compact and nearly indestructible design
2″ touch screen, 2 knobs and 4 buttons in a 3.75″ x 3″ x 1.5″ package
Recording capabilities
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
What is included ?
Nanobox Tangerine – Compact Streaming Sampler
MicroSD card with 85 presets and over 1500 wav files
Color matched USB power cord
Type B TRS MIDI To MIDI 5 Pin DIN adapter
Quick Start Guide
Technical Specs
Power: USB-C connection 5V, 500mA
3.5mm audio input and output
Maximum input and output level: 2Vrms
DAC and ADC resolution: 24-bit
Internal resolution: 32-bit
Sample rate: 48kHz
MIDI Input: 3.5mm Type A/B auto sensing
MIDI Output: 3.5mm, Type A or Type B selectable
Clock Input: 1,2, 4, 8, 12 or 24 PPQ selectable
MIDI support: Program Change, Note On/Off, Velocity, Mod Wheel, Aftertouch, CC mappings to common parameters, program changes and clock
