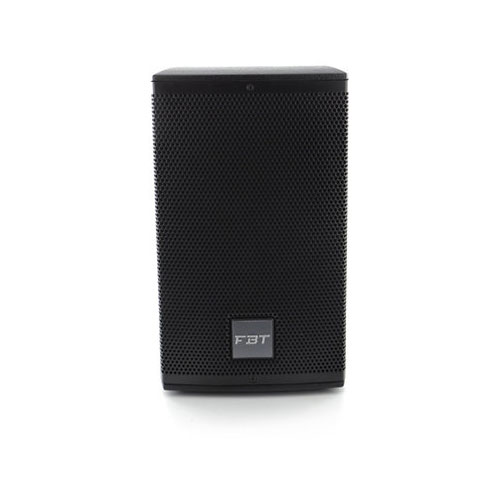

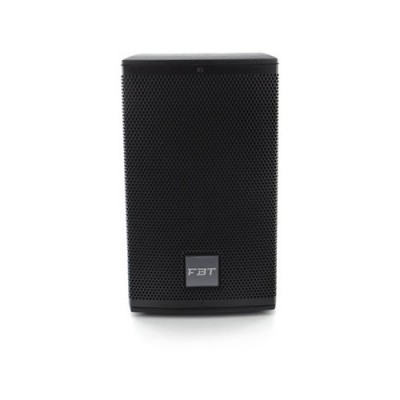

- FBT Install Archon 105
- Passive PA speaker
- Archon Series
- Ref FBT: 36250
- Color: Black
- Configuration: 2 channels
- Recommended amp: 200 W RMS
- RMS power: 100 W
- Peak power: 400 W
- Nominal impedance: 8 Ω
- Speaker: âˆ... 5" (âˆ... 127 mm), coil âˆ... 1.25" (âˆ... 31.75 mm)
- Tweeter: âˆ... 1" (âˆ... 25.4 mm), coil âˆ... 1" (âˆ... 25.4 mm)
- Constant directivity horn
- Dispersion: 110° H x 110° V
- Frequency response: 70 Hz ⢠22 KHz
- Sensitivity: 89 dB
- Max peak SPL: 115 dB
- Cutoff frequency: 3 KHz
- Recommended high pass filter: 60 Hz - 24 dB/oct
- Housing: 12 mm (0.47") birch plywood
- Grille: steel with dust protection
- Threaded attachment points: 4 x M5
- Accessories included: FBT rotating logo badge
- Input connection: Euroblock
- Dimensions: 180 x 180 x 300 mm
- Weight: 4 kg
Merkreferentie:
FBTARCHON105
