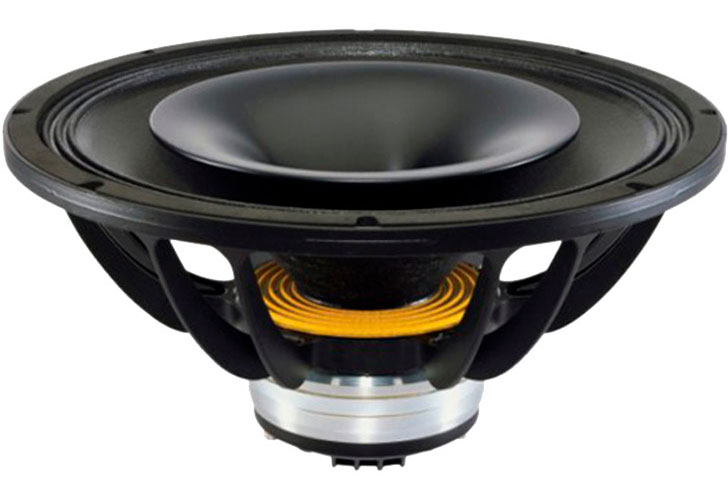

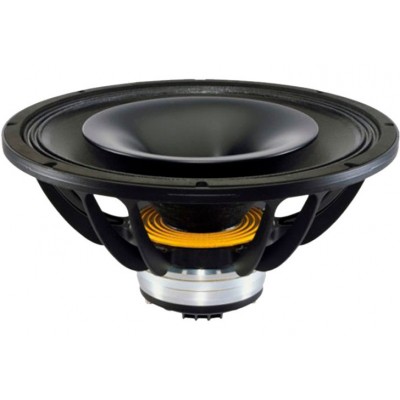

- B&C 15 HCX 76 Coaxial 15" (38cm) + 1.3"
- Power 800 + 80W AES / 8 + 8 Ohms
- Sensitivity LF: 99db - HF: 107 1w/1m
- Bandwidth 40Hz - 18KHz
- Voice coil: LF 3" (64 mm) Copper wire HF: 3" (64 mm) Diaph Titanium
- Magnet: Neodymium
- Total diameter: 393 mm Height 200 mm
- Weight: 5.6 Kg
- Recommended load: 100 Liters with tuning at 40Hz
- Fs (LF): 38Hz
- Qts 0.28
- Xmax 4.5mm
- LF Triple roll suspension
- Exponential cone waterproof treatment before - Coverage: 60x40° on roof mounted in front of the engine.
Merkreferentie:
BC15HCX76
