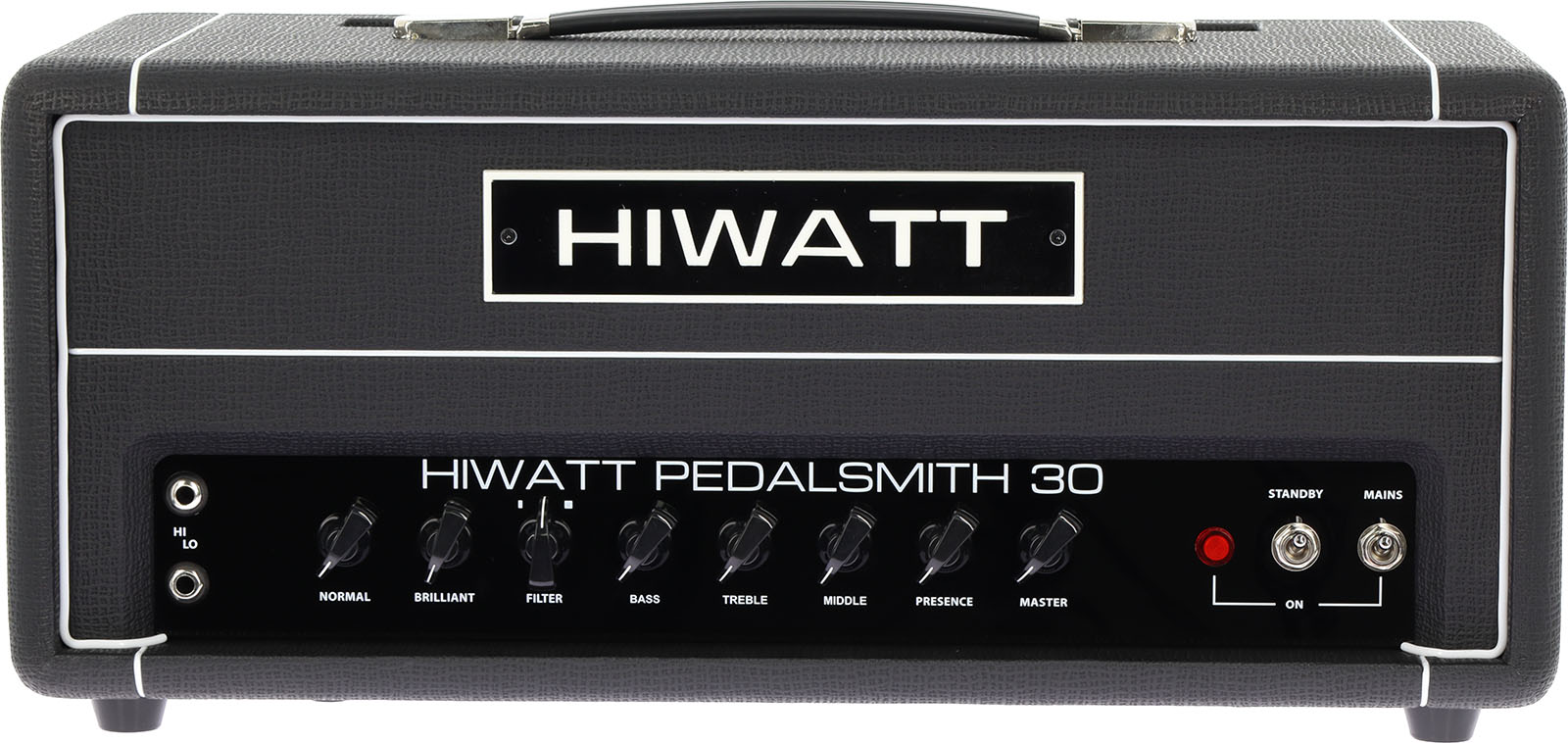

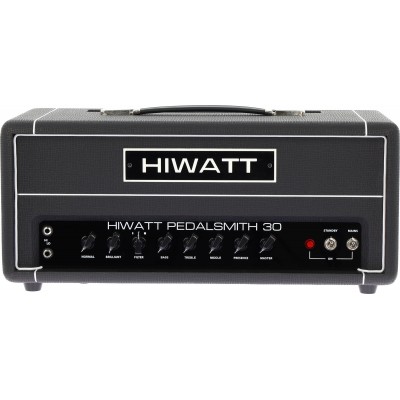

Hiwatt Pedalsmith
The Hiwatt Pedalsmith is based on the legendary DR504, whose sound has been heard on albums by bands such as The Who, Led Zeppelin, and Pink Floyd since the circuit was designed in the 1970s, as well as on contemporary artists such as IDLES and Russian Circles.
The Pedalsmith 30 retains the legendary Hiwatt two-channel (Normal/Brilliant) design with High/Low inputs, while incorporating modern enhancements such as a silent effects loop and internally paired inputs. This combination provides easy access to classic guitar tones while offering the freedom to create your own sounds.
In the clean position, the Pedalsmith 30 delivers high power with exceptional dynamics, capable of handling any combination of pedals without losing clarity. Pushed into overdrive, it offers inspiring and rich tube-like compression and crunch without ever overwhelming the natural sound of your guitar.
Equipped with 6V6 tubes, the Pedalsmith 30 delivers 30 watts of power, allowing for expressive saturation even at low volumes, ideal for rehearsals, small gigs, or home studios.
Features:
- Power: 30 watts
- Power tubes: 2 x 6V6
- Preamp tubes: ECC83 (12AX7)
- Channels: 2 channels with separate volumes
- Equalization: 3 bands (Bass, Mid, Treble)
- Additional controls: Presence, Master Volume 1, Master Volume 2 Effects loop: Yes Construction: PCB board for more affordable production
