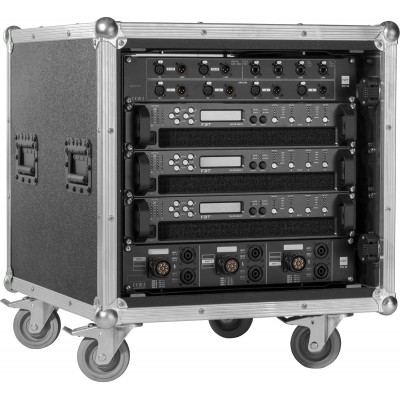

- FBT MYRACK
- Amplification set for Line Array Myra
- Lot composed of:
- FBT SD 16 x1:
- Audio and network distribution panel
- Digital AES/EBU: 4 XLR connectors (2 inputs / 2 links)
- Analog: 8 XLR connectors (4 inputs / 4 links)
- Ethernet: 4 RJ45 connectors (1 input / 4 links)
- Dimensions: 482 x 88 x 150 mm (2U)
- FBT TALOS 20K4 T x3:
- Advanced system amplifier
- 4 Speakon connectors for speakers
- 8 XLR audio input connectors
- 2 AES3 XLR audio input connectors
- 2 RJ45 network audio ports (primary / secondary)
- 1 Ethernet communication port
- Dimensions: 482 x 88 x 360 mm (2U)
- FBT PS 12 x1:
- Power distribution panel for speakers
- 6 Speakon NLT4 connectors
- 3 8-pin CA-COM connectors (Amp1 / Amp2 / Amp3)
- Dimensions: 482 x 88 x 150 mm (2U)
- FBT PB 32 x1:
- Main power distribution panel
- 1 three-phase 32A CEE power cord for the main power input
- 1 three-phase 16A CEE socket for the connection socket
- 1 type F ?Schuko? socket (auxiliary)
- 4 circuit breakers type C 16A (Aux / Amp1,2,3)
- Dimensions: 482 x 88 x 220 mm (2U)
- FBT Touring rack 10U x1:
- Rack cabinet 10 transportable unit
- 2 Lexan doors
- 4x 100 mm casters
- Dimensions: 696 x 675 x 652 mm
Merkreferentie:
FBTMYRACK
