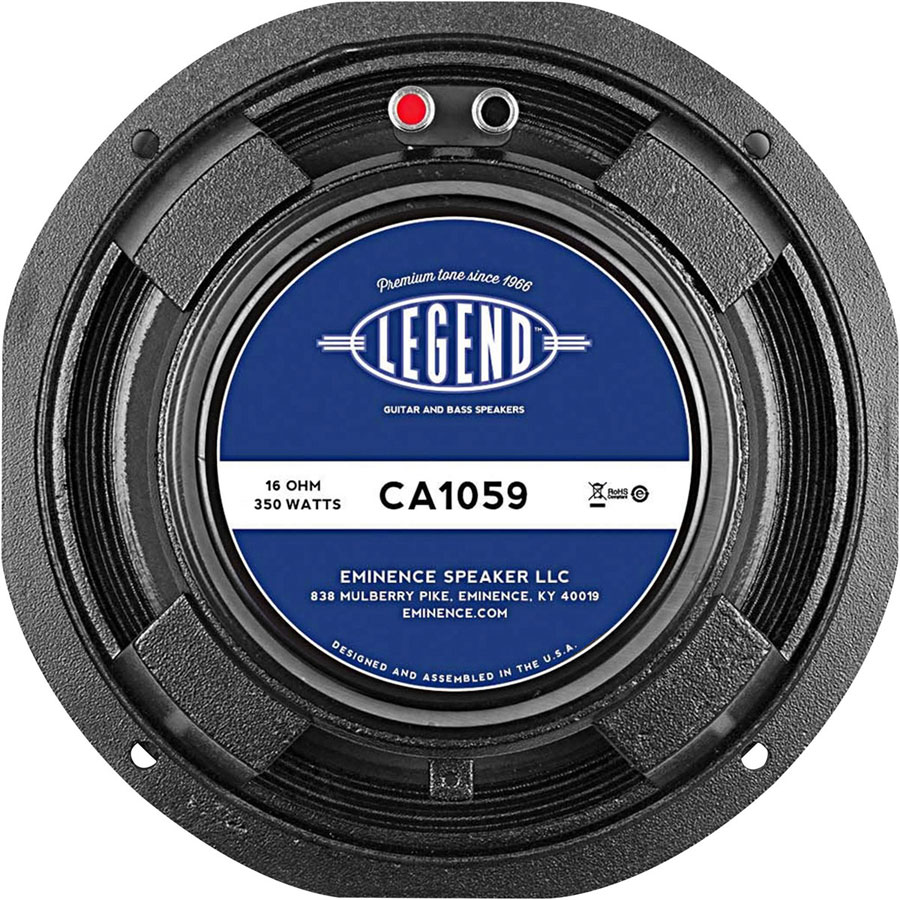

Eminence Legend CA105916 10" Bass Guitar

Inscreva-se aqui para ser informado quando este artigo voltar a estar disponível.

Descrição

- Eminence Legend CA105916

- Loudspeaker

- Manufacturer Ref : 101623-U

- Series : Legend

- Applications : Bass | Bass Amp

- Speaker : âˆ...10" (254 mm)

- Nominal impedance : 16 Ω

- Program power : 350 W

- Nominal power : 175 W

- Resonance frequency (fs) : 46 Hz

- Usable frequency range : 50 Hz â­¢ 3.4 kHz

- Sensitivity : 98.3 dB

- Total Q (Qts) : 0.26

- Voice coil : âˆ...2" (51 mm)

- Maximum linear excursion (Xmax) : 4.7 mm

- Compliance equivalent volume (Vas) : 74.87 liters / 2.64 cu.ft.

- Max displacement volume: Vd = Sd × Xmax = 35 cm² × 4.7 mm = 164.5 cc (approx.)

- Loudspeaker displacement volume: (Cone volume) = Sd × Cone height = 35 cm² × (Cone height not specified, estimate based on Xmax and Mms needed for accuracy)

- Overall diameter: âˆ...10.5" (267 mm)

- Voice coil: Edgewound Aluminum

- Voice coil support: Polyimide

- Magnet: Ferrite

- Frame material: Die Cast Aluminum

- Diaphragm: Paper

- Diaphragm edge: Cloth

- Dimensions: âˆ...266 mm x 115 mm

- Weight: 5.06 kg
Referência marca: EMILEGENDCA105916
