The SF-24 Coincident Stereo Microphone is the phantom-powered version of our popular SF-12 ribbon microphone. It combines the exceptional stereo separation, imaging, and high-quality sonic performance of the SF-12 with our active ribbon microphone circuitry. The SF-24's output (38 dB) is higher than that of the SF-12 (-52 dB), allowing it to compete with phantom-powered condenser microphones. The SF-24 features innovative circuitry and specially designed transistors to achieve ultra-low noise (induced noise level below 18 dB).

Like the SF-12, the SF-24 consists of two matched ribbon microphones mounted one on top of the other, forming a coincident pair, each oriented at a 45-degree angle from the center (a classic Blumlein configuration). The two 1.8-micron ribbon drivers feature a magnet/pole element structure that ensures a wide, linear frequency response with no significant peaks or drops, as well as outstanding transient response. This provides excellent frequency response at any positioning angle, as well as minimal off-axis coloration.*

Features:
- Active pressure gradient dynamic microphone
- Distinctive characteristic: Figure-8 crossover
- Element: Aluminum ribbon (1.8 micron)
- Frequency response: 40 Hz - 15 kHz +/- 2 dB
- Sensitivity: -38 dBv (reference: 1 V/pa +/- 1 dB)
- Induced noise level: < 18 dB
- Output impedance: 200 Ohms
- Nominal load impedance: 1 kOhm
- Max. SPL: 100 dB : >130 dB
- Output connector: 5-pin male XLR (stereo*)
- Phantom power: 48 V only
- Supply current: 4 A per channel
- Dimensions: 270 mm x 39 mm (base), 25 mm (top)
- Weight: 583 g

Marken Referenznummer: SF-24

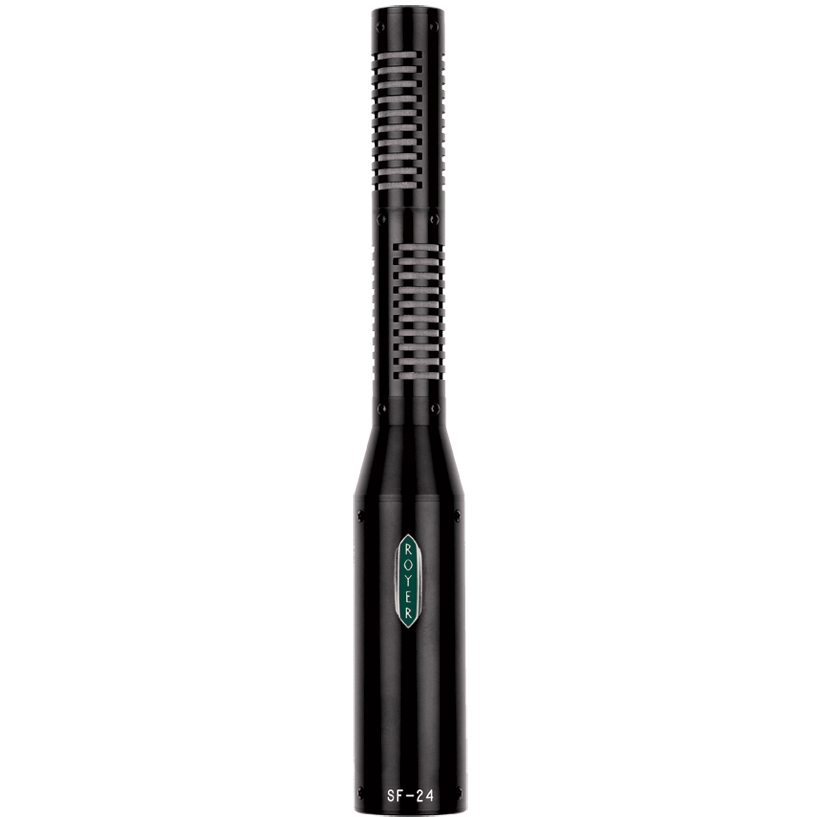

Royer Labs SF-24
