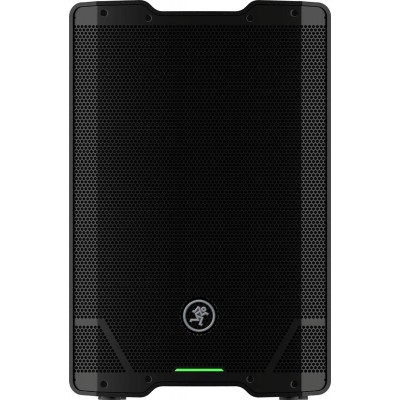

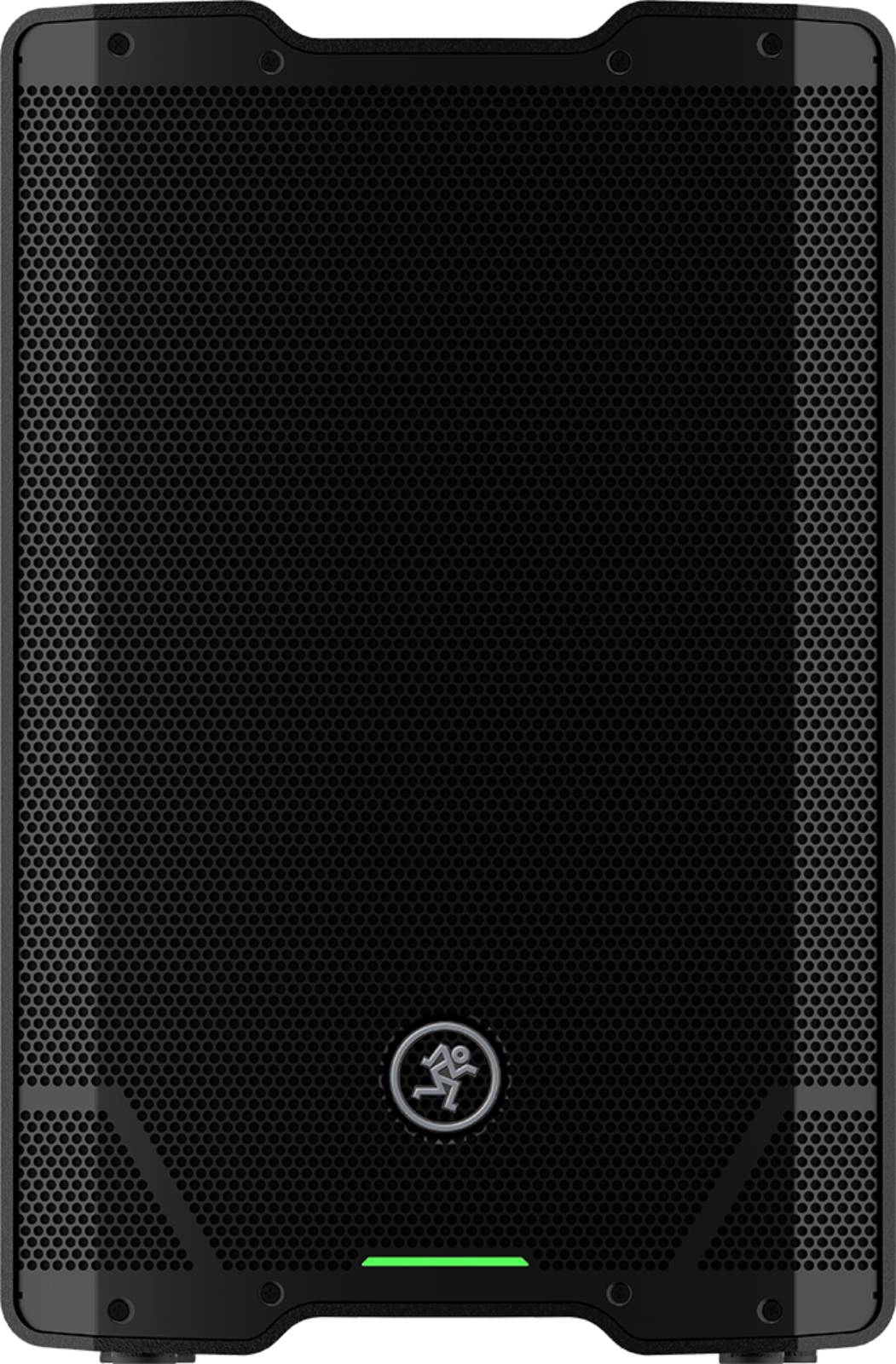

Mackie SRT 210 active bluetooth speaker

SRT ™ Professional powered speakers are designed for musicians, DJs, events, bars, clubs and more

What does the advanced DSP module do
Mackie's filtering technology is not the typical treatment of a speaker. The goal of our Advanced Impulse ™ DSP is to eliminate any anomalies that speakers and horns produce to a signal, thus making the speakers "invisible" and producing nothing but clean sound. . By smarter (and more fully) utilizing the benefits of FIR filtering, the Advanced Impulse DSP eliminates unwanted acoustic anomalies over the entire dispersion area (horizontal and vertical), as well as the frequency range and time domain.

The main way to do this is to measure the negative frequency response and time domain impacts that each transducer and horn in the system introduces - on-axis as well as off-axis - and reverse / correct these anomalies before the signal does not reach the speaker. The result is that the speaker output is fully corrected to achieve flat, clear, time-aligned, and consistent sound across all domains of time, space, and response.

SYM-X ™ Pavilion
The custom horn of each SRT Series loudspeaker has been designed with the goal of bringing out the best in the RF transducer while maintaining the flattest response possible at the crossover point. Surprise, surprise ... we found it. The special design of this horn allows the compression motor to run at near maximum efficiency. This means it gets louder and sounds better with less effort. The transition between low frequencies and high frequencies is a balanced and flat response, resulting in incredibly smooth mids in the SRT series speakers.

Innovative limiter system
Other speakers have some sort of protection and limitation to help them get an extra dB or two out of the speaker. This almost always comes at the expense of sound quality and usually results in decreased bass response and the internal limiter “pumping” sound having a bad day.

When operating at very high levels (watch out for the ears), the processor-controlled control system analyzes the audio signal and identifies problem areas, then dynamically applies multiband compression to those specific frequencies rather than lowering the overall output. . This helps keep levels where you want them and keeps the sound quality you expect.

Speaker control and streaming
With the SRT Connect ™ app available for iOS and Android® devices, you have full control of everything, and up to two speakers simultaneously. Quickly access volume levels, equalizer, meters and other setups. Plus, you can save memory presets to streamline setup at your next gig.

When you connect to another SRT series speaker, you have control of the entire system in the app, all in one view. There is no need for additional pairings or exchanges on your device.

For an incredibly simple music playback system, you can stream music directly from any compatible device using Bluetooth.

A real workhorse for entertainment professionals
- Powerful 1600W Class D amplifiers designed for ultra reliable and consistent performance
- Customized high efficiency transducers ensure maximum clarity and precision
- Built-Like-A-Tank ™ to conquer every gig while being lightweight for easy loading
- Universal power supply (100-240VAC) with power factor correction for stable operation even with unstable AC power
Advanced Impulse ™ DSP - Proprietary Acoustic Tuning
- Crystal clear sound throughout the scatter area means the whole room is the focal point
- Precision crossover and temporal alignment of the transducers ensure balanced and precise sound
Custom Sym-X ™ Horn
- Allows full efficiency of the HF transducer by minimizing distortion and increasing efficiency
- Creates a perfectly symmetrical and flat response at the crossover point for an exceptionally smooth midrange
- The horn charging frequency is set below that of the conductors
LF capability for maximum efficiency and optimum performance at the crossover point
- Coverage: 90˚ horizontal x 60˚ vertical
A transparent system
limitation and protection
- A dedicated processing module monitors and protects the amplifier in real time
- Sound quality and tonal balance are maintained even under severe limitation
- With powerful multiband compression, the amplifier can target specific frequency ranges to avoid system overload rather than reducing everything at the expense of overall output
- Limiting the input allows you to control the signal from your source. So if you send an audio signal that is a little too hot, the speaker will cool it down.

SRT Mix Control ™ Integrated 4-channel digital mixer with Bluetooth
- Two independent channels that support signals from microphones, lines and instruments
- Dedicated 1/8 "stereo auxiliary channel
- Stream music from any Bluetooth® enabled device.
- High contrast color display for easy access to mixer and processing with one button
- Adjust channel levels and EQ
- Voting methods specific to the application and to the location
- Alignment delay - up to 100 feet
- Save and recall up to 10 user presets
- Screen saver plus dimmer and contrast control
- System lock with a 4-digit code
- Switching on and off of the front LED and signaling of the modes present
Complete wireless control via the SRT Connect ™ App
- The SRT Connect ™ application allows you to access
to all tweaks and settings, including EQs, levels and presets

Strengths
- The latest Bluetooth technology provides a range of 100 meters between connected speakers
- Stereo or dual zone link modes allow discrete control of the inputs and outputs of the entire system in two rooms or zones
- Creates an amazingly clean installation in minutes
Versatile configuration options
- The cabinet's dual-angle design allows it to be used as a high-performance floor monitor
- Double angle pole mount provides optimum coverage and minimal reflections in most venues; the 7 degree downward tilt is perfect when the speakers are on high stages.
- M10 support points for professional installation

TECHNICAL CHARACTERISTICS:

- Type: active speaker
- 1.4 “compression driver, 10“ loudspeaker
- 1600 W peak class D amplifier
- Bandwidth: 47 Hz - 20 kHz, coverage: 90 ̊ x 60 ̊
- Max SPL: 134 db
- Finish: Black
- Assembly: on foot
- Dispersion (H x V): 90 ° x 60 °
- Category: sound system
- Enclosure structure: polypropylene
- Amplification: Active
- Inputs: 2 x XLR / jack combo, stereo minijack
- Outputs: XLR mix out, 2 x XLR
- Tweeter: 1.4 "
- Controls: input gain
- Multimedia player: Bluetooth
- Transport: 2 handles
- Diameter h-p: 10 "
- Frequency response: 47 Hz - 20 kHz
- Insert type: 35mm well, M10
- Number of ways: 2 ways
- Application: Front, Back
- Max SPL: 134 dB
- Power: 1600 W
- Base width: 35 mm
- Peak power: 1600 W
- RMS / peak power: 1600 W
- Mixer: Yes
- Amplified: Yes
- Cutaway: Yes
- Bluetooth: Yes
- EQ: Yes
- DSP: Yes

- Dimensions (mm): 584 x 384 x 328
- Weight (kg): 14 kg
