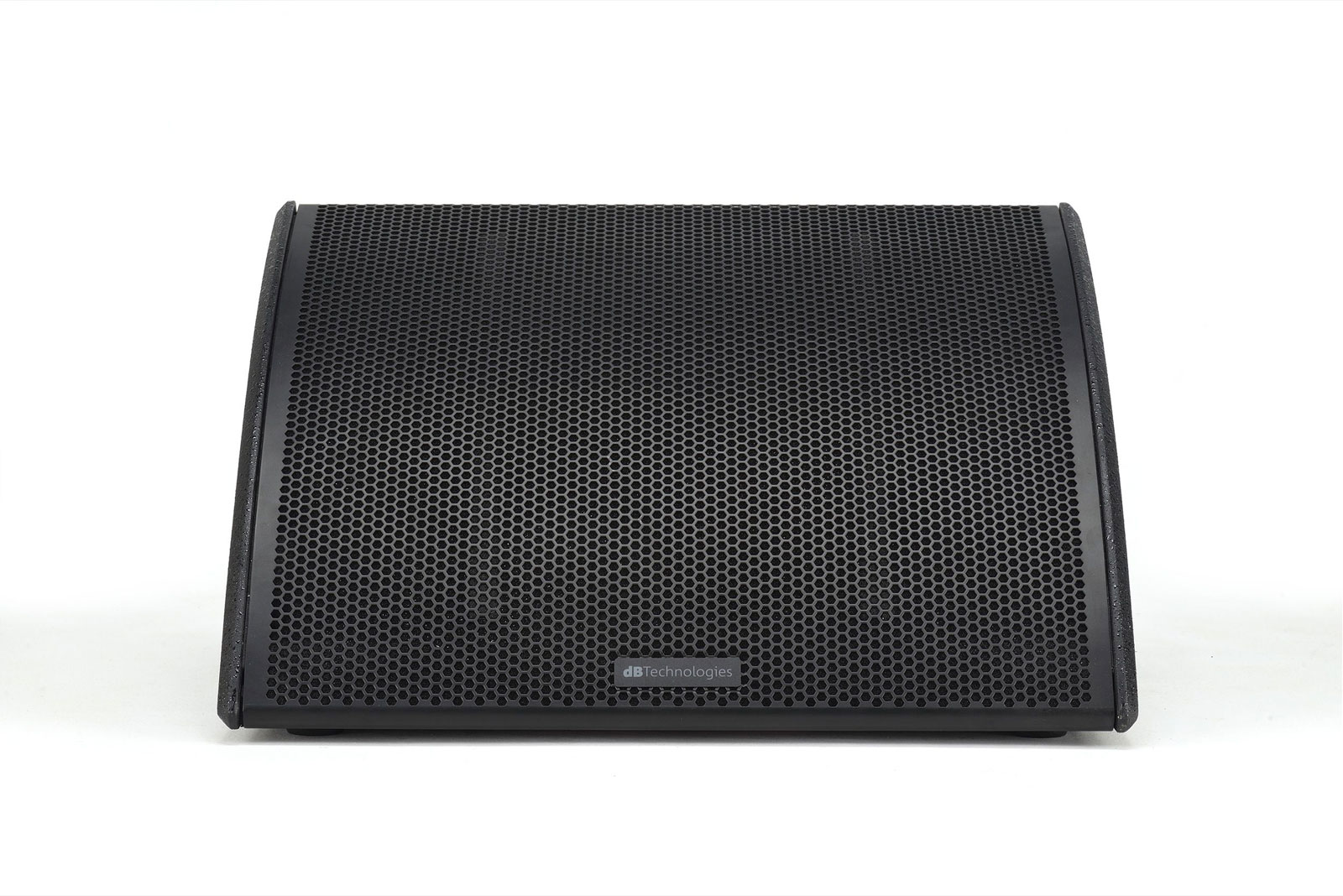

Essential Information About the dBTechnologies Flexsys FMX12 Coaxial Stage Monitor
- 12-inch 2-way coaxial for a coherent, precise sound image and excellent feedback rejection.
- Class D amplification 600 W RMS / 1200 W peak with linear phase FIR filter DSP for a natural response.
- Rotatable 60deg x 90deg directivity to adapt dispersion to the artist's or speaker's position.
- Built-in presets (8 presets), 36 mm socket, and bottom handle for quick and versatile setup.
At the Heart of the Flexsys FMX Range
The FMX12 sits at the center of the Flexsys FMX stage monitor series (10, 12, and 15 inches). It combines the compactness of the 10-inch and the solidity of the 15-inch, making it the versatile choice for stages where intelligibility and punch need to coexist.
For Which Uses and Musicians?
Designed for singers, guitarists, keyboardists, DJs, and sound engineers seeking a faithful and powerful monitor, the FMX12 works equally well as a floor wedge or as an auxiliary on a stand thanks to its side socket. Its controlled projection adapts to small stages as well as more demanding setups.
Technologies and Features for the Stage
Customizable Dispersion
The rotatable horn offers 60deg x 90deg (or 90deg x 60deg when rotated), maintaining coverage where you need it and limiting unwanted stage reinjections.
Musical DSP and Built-in Protections
The 24-bit/48 kHz processing with linear phase FIR filters ensures smooth response and clear transients. Eight presets optimize equalization according to use, while peak, RMS, and thermal limiters protect the system during shows.
Tour-Ready Construction
Plywood enclosure, front and rear grille, integrated handle, and wedge format facilitate mounting, transport, and durability on tour.
Technical Specifications
Acoustics
- Type: active 2-way coaxial stage monitor
- Frequency response (-10 dB): 52 - 19,000 Hz
- Max SPL: 128 dB
- Transducers: HF 1 inch (1.3-inch voice coil); LF 12 inches (2-inch voice coil)
- Crossover frequency: 1,740 Hz
- Slopes: 24 dB/oct
Directivity
- Rotatable horn 60deg x 90deg (reversible to 90deg x 60deg)
Amplification
- Class D: 600 W RMS / 1,200 W peak
- Limiters: peak, RMS, thermal
DSP and Processing
- 28/56-bit DSP controller; 24-bit / 48 kHz converters
- Linear phase FIR filters
- System presets: 8
Construction and Mechanics
- Enclosure: plywood, multifunctional wedge design
- Front and rear grille
- Integrated handle on the bottom face
- 36 mm stand socket (side-mounted)
Dimensions and Weight
- Width: 465 mm; Height: 297 mm; Depth: 444 mm
- Weight: 13.9 kg
