LD System Mon 10 G3 Stage Monitor

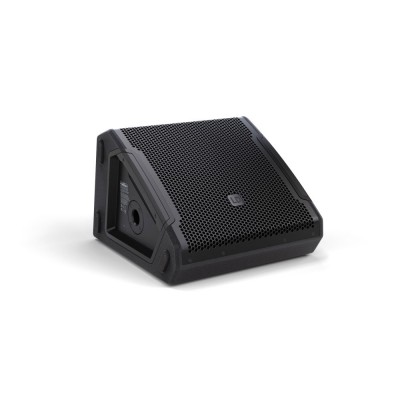

The MON 12 A G3 is part of an entirely new family of high-performance powered stage monitors. The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end returns generally used for rental by professionals, and puts this quality within everyone's reach. Examples include advanced technology coaxial loudspeakers, equipped with a 50° x 90° constant directivity horn: they constitute a true point source, an ideal solution from an acoustic point of view, guaranteeing exceptional audio performance, even in close listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the stylish look of LD systems.
For decades, 12"/1" stage monitors have set the standard for sound quality , sound pressure level and portability. With its coaxial design, intelligent electronics and professional appearance, the MON 12 A G3 brings this concept into the "modern era". The ideal dispersion of 50° x 90° (monitoring use) or 90° x 50° (front-of-house use) makes it a versatile tool that is always the right solution for many different tasks.
Connectors Return connections are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON base). This allows for elegant, clean cabling in multiple return or sound distribution installations.
- Compact, high-performance stage monitor with high-end technology
- Stage amplifier Class D power, 300 W RMS/1200 W peak, maximum level 127 dB SPL
- Coaxial design for a true point source with a 1.75" titanium diaphragm tweeter driver
- 12-inch woofer with 2.5-inch voice coil
- Optimized and practical dispersion thanks to the 50° x 90° constant directivity horn
- DSP DynX® processing (Gen. 2) for distortion-free sound even at maximum volume
- 3-band equalizer, notch filter, 4 application presets and delay function
- Professional power socket with feedback, powerCON compatible< /li>
- 35mm speaker pole well for PA applications
- Durable polyurea coating, solid front grille
Technical Specifications
General
- Product type: Returns scene
- Type: Active
- Color: Black
- System power (rms): 300 W
- System power (Peak): 1200 W
- Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
- Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD)
- Frequency response (-3 dB): 68 - 18000 HZ
- Frequency response (-10 dB): 55 - 20000 Hz
- Frequency response: 1400 Hz
< li class="left-item">Monitor angle: 33°- Dispersion angle (H x V): 50° x 90°
< li class="left-item">Width: 425 mm- Depth: 453 mm
- Height ( mm): 315 mm
- Features: Delay Line, 3-band EQ (High, Mid, Low), Notch filter
- Weight: 17.4
Boomer
- Boomer/midrange diameter: 12 "
- Boomer diameter: 304.8 mm
- Boomer magnet: Ferrite
- Boomer brand: Customized
- Speaker type: Coaxial speaker
- Boomer coil: 2.5 "
- Boomer coil (mm): 65 mm
- Cabinet finish: Bass Reflex
- Cabinet material: 15 mm birch plywood, 15 mm MDF panel
HF- Constant Directivity Horn (CD)
< li class="js-accordion__headline js-accordion__trigger specification__headline">Tweeter diameter: 1 "- Tweeter diameter (mm): 25.4 mm
- Tweeter magnet: Ferrite
- Tweeter brand: Customized
< li class="js-accordion__headline js-accordion__trigger specification__headline">Tweeter coil: 1.75 "- Tweeter coil (mm): 44.45 mm
< div class="js-accordion__headline js-accordion__trigger specification__headline">
Amplifier module (built-in)
- Amplifier: Class D
- Protection circuits: Multi-band limiter, Overload , Overheating, Overvoltage
- Using temperature: 0 - 40 °C
- Admissible humidity level: < 80% (non-condensed)
- Fuse: T4AL 250 V
- Settings: Rotary/push encoder, On/off switch
- Indicators: LC display
- Mains voltage: SMPS
- Mains voltage: 100 - 240 V, 50 - 60 Hz
- Power consumption: 150 W
- Power input/output: PowerCON compatible< /li>
- Line inputs: 2
- Line input connectors: Jack 6, 35 mm, Pass-through connection: XLR
