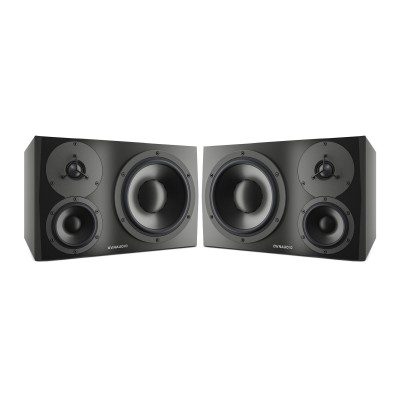

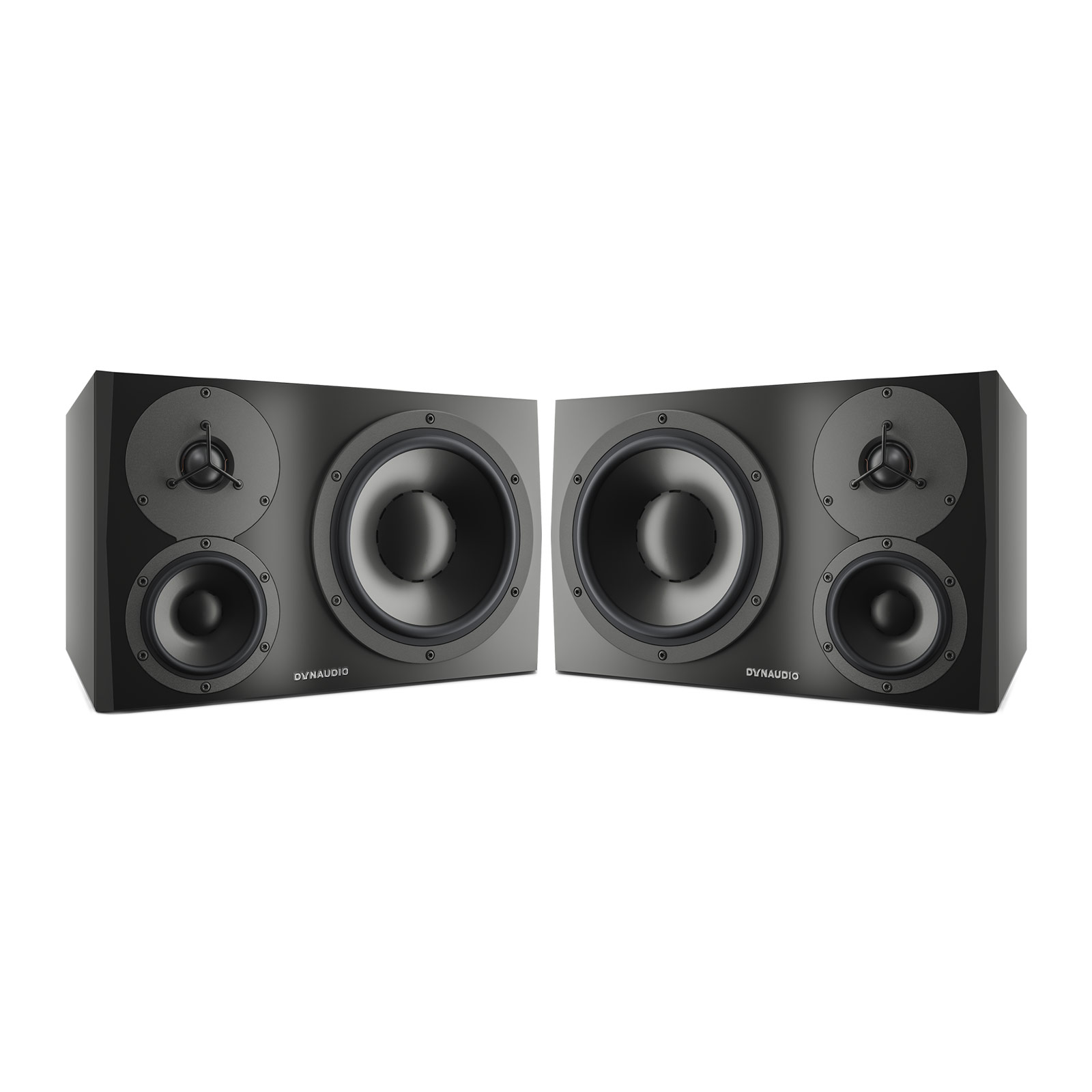

Building on the Dynaudio PRO LYD range of nearfield monitors, the LYD-48 is an all-new three-way design that achieves its flawless accuracy thanks to a new soft dome tweeter and Dynaudio’s MSP midrange and woofers. Each of its three drivers is handmade and powered by a powerful class-D amplifier and DSP filter, making the monitors perfect for nearfield and midfield applications. The ideal choice for unmatched accuracy at any volume, the LYD 48 combines precision with passion, delivering all the power needed at the right time.
Highlights
- Handmade 4/8" nearfield & midfield monitor
- 3-way design with advanced class D amplification
- Next-generation DSP to tailor the monitor to the mixing space
- Made in Denmark
Power and DSP
Each LYD-48 is tri-amplified (50 W Tweeter / 50 W Midrange / 80 W Woofer) by class-D amplifiers featuring 96 kHz / 24-bit resolution, plus a cleverly used DSP that offers the ability to extend or reduce the low-frequency response down to 10 Hz as needed; while the “Position” and “Sound Balance” controls ensure the best possible performance for any mixing or listening environment.
Handmade Drivers The LYD-48 benefits from Dynaudio’s legendary soft silk dome tweeter with a lightweight aluminum voice coil to reproduce highs in a natural and transparent way. The aluminum coating on the copper significantly reduces the moving coil’s weight while improving the driver’s thermal behavior (less thermal distortion). Furthermore, this type of tweeter does not resonate in the high frequencies, sparing you from the buzzing noise that can plague other designs. This allows you to work for long hours without auditory fatigue.
For mid and low frequencies, the 4" and 8" Dynaudio drivers are handmade from magnesium silicate polymer (MSP), which offers a perfect balance between stiffness, weight, and damping. Combined with the superior thermal behavior of aluminum and the woofer’s die-cast aluminum basket, the overall sound performance is improved with less thermal distortion. Using aluminum, which is lighter than copper, allows for a larger diameter voice coil. This results in increased cooling and enables our flat cone design to provide better off-axis frequency response and means the transient response is extremely fast.
Technical Specifications
- Nearfield and midfield monitor
- Handmade drivers – 1" Tweeter, 4" Midrange, and 8" Woofer
- Max SPL at 1 m: 114 dB
- Frequency response: 40 Hz – 21 kHz
- Bass Reflex
- Class-D amplifier HF 50W / MF 50W / LF 80W with 96 kHz / 24-bit resolution
- Adjustable input sensitivity
- Selectable automatic standby mode
- XLR and RCA inputs
- Available in white and black or all black
- Dimensions (W x D x H): 328 x 369 x 234 mm
- Weight: 12 kg
