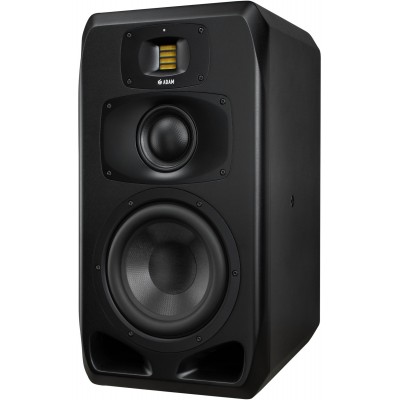

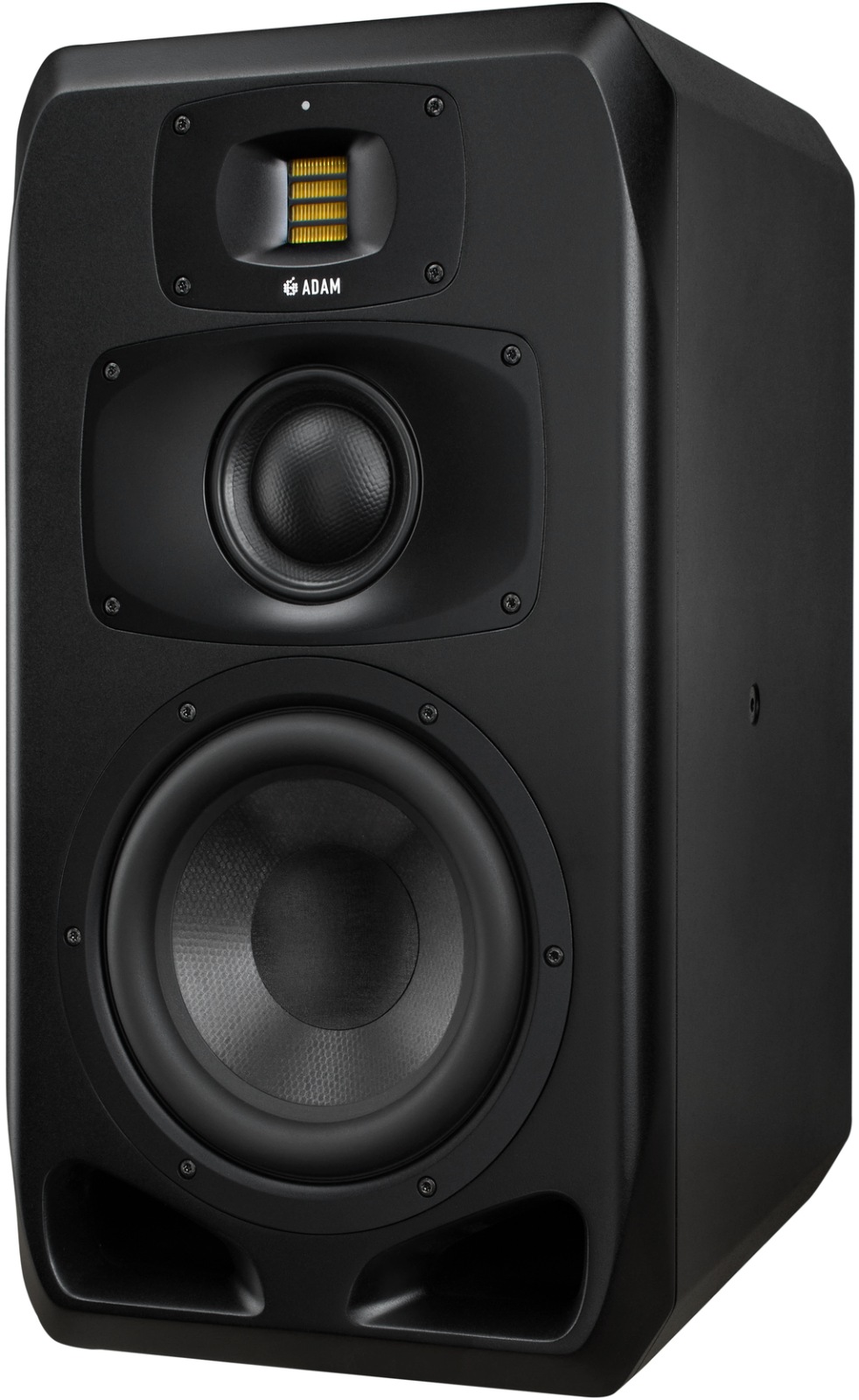

Essential Information About the ADAM Audio S3V Monitoring Speaker
- 3-way vertical design for nearfield monitoring, with an extended response from 32 Hz to 50 kHz and highly precise stereo imaging.
- Powerful and controlled bass thanks to the 9-inch ELE woofer and the SMA motor for linear excursion down to infrasonic frequencies.
- Detailed midrange via the 4-inch DCH driver and silky highs with the S-ART ribbon tweeter coupled with the HPS waveguide for a wide sweet spot.
- S Series DSP with equalization, preset memories, tweeter limiter, USB for updates/control, and AES3 for digital integration.
The S3V, a Vertical Pillar of ADAM Audio's S Series
Positioned at the heart of the range, the S3V carries the DNA of the S Series and incorporates the latest in-house developments: new ELE woofer, DCH midrange, redesigned S-ART tweeter, and HPS waveguide. Designed for vertical installation, it offers a stable soundstage and tonal precision that make it a benchmark in modern studios.
Intended Uses
Ideal for small to medium-sized control rooms, the S3V excels in mixing, mastering, sound design, and post-production. Its three-way configuration and expanded sweet spot facilitate work on placement, depth, and transients, whether at close range or in nearfield setups.
Key Features for Precision Monitoring
Next-Generation Transducers
The 9-inch ELE woofer, powered by SMA technology, delivers fast and deep bass. The 4-inch DCH midrange ensures exceptional clarity for vocals and instruments. The S-ART ribbon tweeter, guided by the HPS horn, extends the sweet spot while maintaining precise imaging and natural high-frequency airiness.
Built-in DSP and Room Adaptation
The optimized S Series DSP refines crossovers for a linear response and offers a full equalizer with memory presets to tailor the speaker to the room. It also manages the tweeter limiter, the AES3 digital stream, and supports upgrades via the USB port for firmware updates and software control.
Power and Dynamics
The onboard tri-amplification combines 500 W for the woofer and 300 W for the midrange in class D, plus 50 W in class A/B for the S-ART tweeter. The result is wide dynamics, exemplary bass control, and a maximum SPL of 124 dB (pair at 1 m).
Technical Specifications
Transducers
- 1 x 9-inch ELE woofer with SMA motor
- 1 x 4-inch DCH midrange driver
- 1 x 2-inch S-ART ribbon tweeter with HPS waveguide
Amplification
- 500 W (woofer) class D
- 300 W (midrange) class D
- 50 W (tweeter) class A/B
- Tri-amplified configuration
Performance
- Frequency response: 32 Hz - 50 kHz
- Max SPL: 124 dB (pair @ 1 m)
DSP and Control
- Integrated DSP with optimized crossovers
- Equalization: parametric EQ, bass and treble shelf filters
- Memory presets and adjustable input sensitivity
- Tweeter protection limiter
- USB port for firmware updates and software control
Connectivity
- Analog input: XLR
- Digital input and output: AES3
Power and General
- Universal internal power supply 100-240 V
- Dimensions: 536 x 380 x 293 mm
- Weight: 25 kg
- Orientation: vertical position (nearfield)
- Warranty: 5 years with product registration
