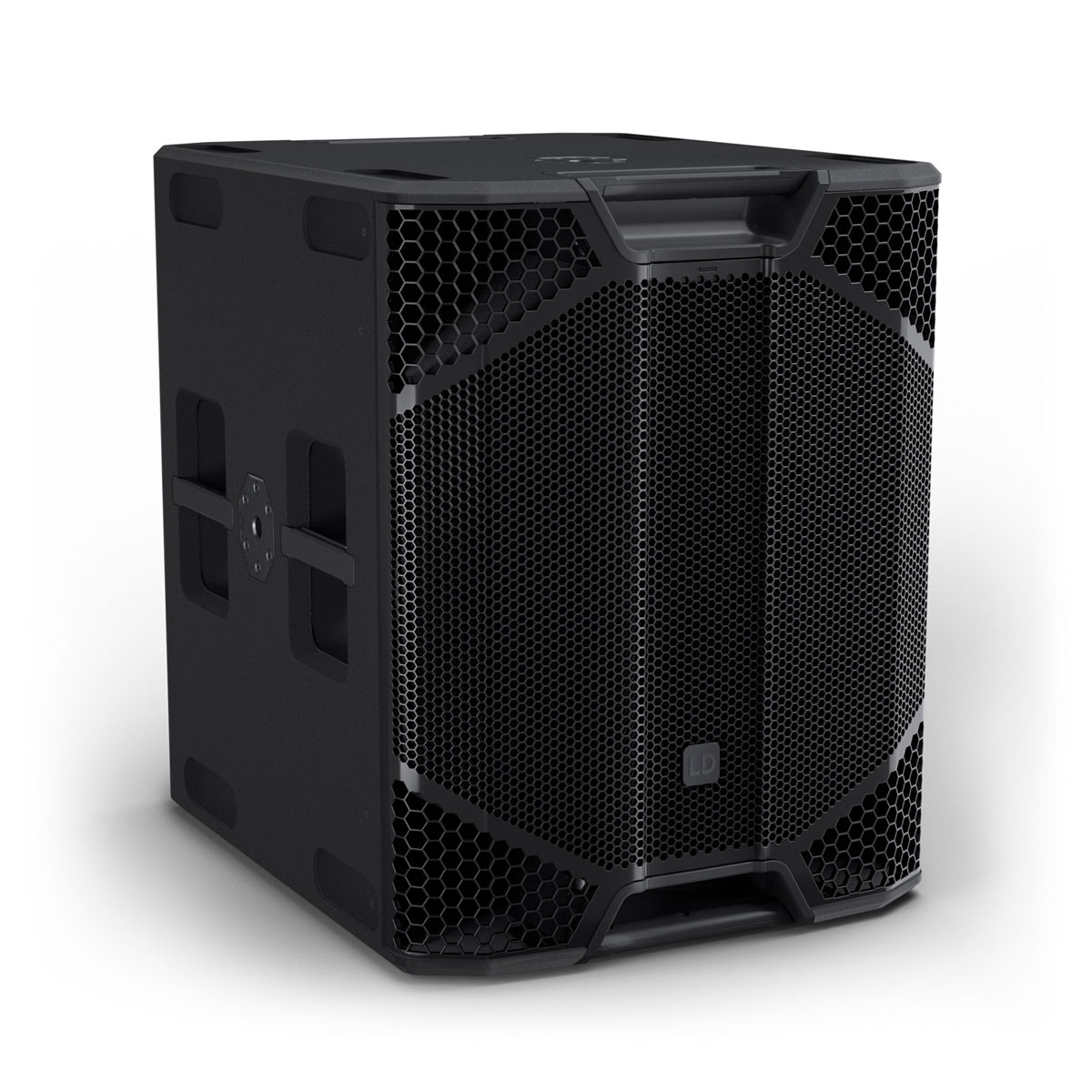

Essential Information About the ICOA PRO SUB 21 A Subwoofer
- Massive bass down to 29 Hz thanks to a 21-inch neodymium high-excursion driver and 4 oversized bass-reflex ports.
- Tour-grade power: Class D amplifier delivering 1500 W RMS (3000 W peak) for 136 dB SPL with a wide dynamic headroom.
- Advanced control: SysCore DSP with FIR/IIR filters, 4-band EQ, delay up to 50 m, and selectable crossover frequencies at 80/100/120 Hz.
- Road-ready: compact birch plywood enclosure, 8 handles, 2 M20 pole mounts, secure stacking, and PowerCON Loop-Thru.
A 21-Inch Driver That Redefines Compactness on the Road
Designed for tours and rental companies, the ICOA PRO SUB 21 A combines impactful infrasonic bass with a compact footprint. Its 15-18 mm birch plywood cabinet with a rugged textured finish withstands intensive use. At only 562 mm wide, it easily fits into the most common vans and stacks securely both horizontally and vertically thanks to molded stacking grooves.
Who Is It For and What Are Its Uses?
Ideal for mobile DJs, clubs, live stages, festivals, and fixed installations, this 21-inch subwoofer delivers a spectacular foundation while maintaining precise and fast response. Dedicated presets, including a cardioid mode, facilitate integration in stereo setups or subwoofer arrays, ensuring consistent low-frequency control in rooms of various sizes.
DSP, Control, and Simplified Integration
At the heart of the system, the SysCore DSP ensures clean sound protected by advanced limiters and thermal/electrical monitoring. The 4-band parametric equalizer and delay up to 50 m allow precise alignment of the subwoofer with any system. Three switchable crossover frequencies (80/100/120 Hz) optimize coupling with your tops. The user interface combines a color screen with a single encoder and the free "ICOA PRO" app (iOS/Android) for wireless control, networking multiple speakers, and quick creation of stereo configurations (up to two tops and four subs), with music streaming management via Bluetooth 5.1 and TWS. The front LED facilitates quick identification and limiter status at a glance.
On the connectivity side, two XLR inputs, two XLR-THRU outputs, and a PowerCON Loop-Thru mains output speed up cabling and system expansion.
Technical Specifications
Transducer
- 21-inch woofer with neodymium magnet
- 4.5-inch voice coil
- 4 oversized bass-reflex ports
- Extended low-frequency response down to 29 Hz
Amplification and DSP
- Class D amplifier: 1500 W RMS / 3000 W peak
- Maximum SPL: 136 dB
- SysCore DSP with FIR/IIR filters and advanced limiters
- 4-band parametric equalizer
- Adjustable delay up to 50 m
- Switchable crossover frequencies: 80 Hz, 100 Hz, 120 Hz
- Application presets: low latency, cardioid mode, etc.
Control, Audio, and Networking
- Color display with encoder control
- "ICOA PRO" app (iOS/Android) for wireless control
- Bluetooth 5.1 streaming with TWS
- Front LED: identification, power, limiter status
Connectivity
- 2 audio inputs on XLR
- 2 XLR-THRU outputs
- PowerCON Loop-Thru mains output
Construction and Ergonomics
- 15-18 mm birch plywood enclosure with rugged textured finish
- 2 threaded M20 inserts for speaker pole mounting
- Secure stacking via 2 x 4 stacking grooves
- 8 ergonomic handles
- Passive cooling system without fan, electronics cooled by airflow
- Subwoofer width: 562 mm
- Optional accessories: ICOA PRO SUB CB rolling dolly, protective covers
