Allen & Heath ZED16FX

As an intermediate model in the ZED series, the ZED-16FX is a compact, high-quality solution for mid-sized groups and small installations that want a reliable, warm, accurate sound console.

Versatility in everything.

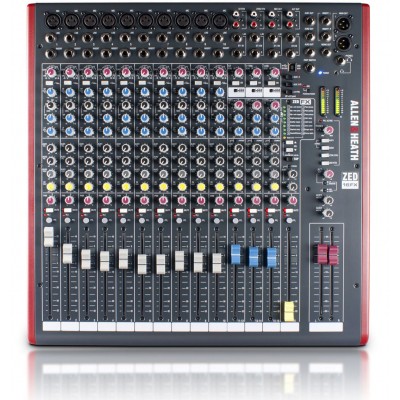

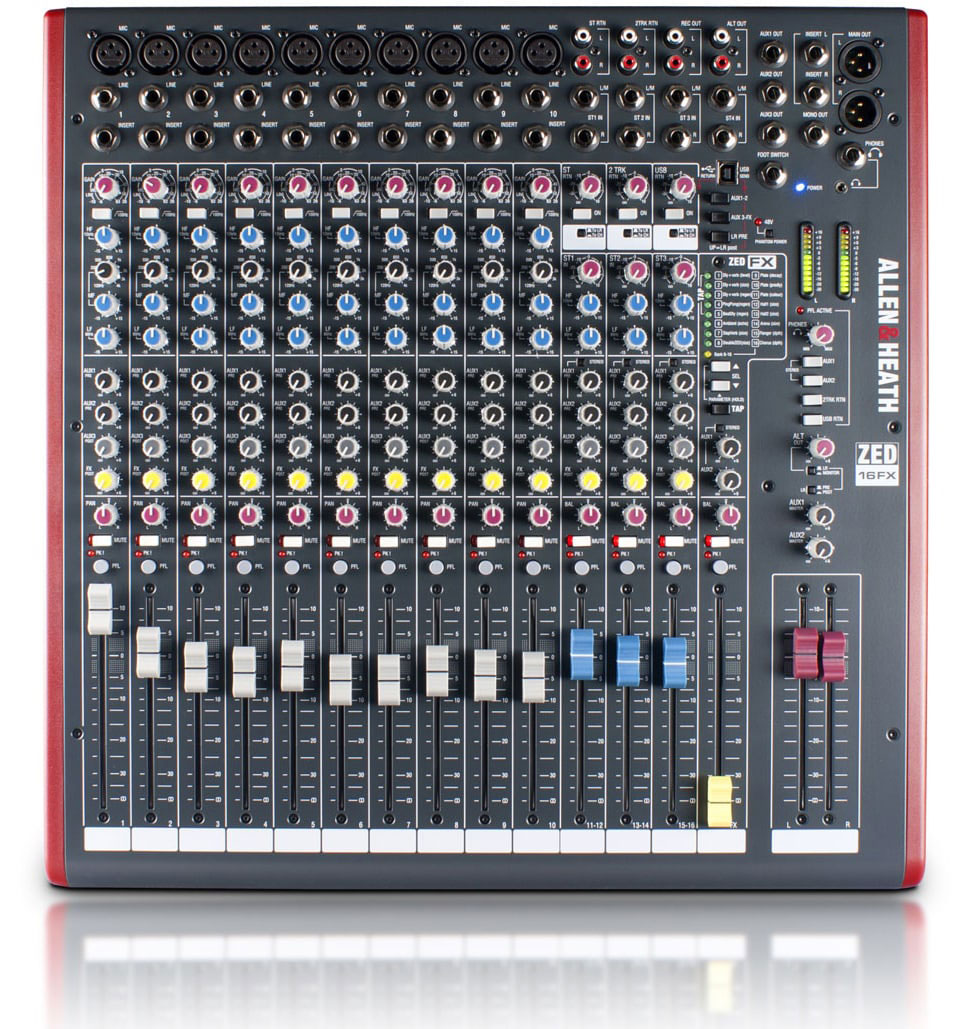

With its inimitable lines and two elegant red wings, this console is easily identifiable! Designed for groups looking for a complete analog console and small theaters, the ZED-16FX offers 10 mono channels, 3 stereo channels and a high-quality effect circuit, all in a rack-mountable format for all the situations !
A sound signature just inimitable.
To give you that warm, precise sound that's so much in demand by the sound engineers, the ZED-16FX incorporates DuoPre professional quality preamps. Specially developed for these consoles by Allen & Heath, they have a two-stage design that provides precise gain control evenly over a range of over 69 dB. In order to precisely control the level of each channel, each slice sports a 100mm ALPS fader of quality, while a 3-band EQ with semi-parametric midrange (2-band stereo) allows you to effectively sculpt your sound.
Very wide possibilities.
Notwithstanding the modest size, the ZED-16FX offers extensive connectivity and listening capabilities. Each channel is indeed equipped with a Mute and PFL function to work efficiently live and simply adjust the gain of each instrument. In addition to its dedicated effect slice that allows precise control of the overall effect level, it has 3 mono aux sends, 2 switchable in stereo on the appropriate slices, a send effect, and an insert on each mono channel and on the master to insert external effects. In addition to these numerous connections, there are switch-routing options that suggest configurations that you may not have imagined.
An all-terrain console.
The reputation of Allen & Heath in the design of mixing consoles for the live is over, as the image of the brand is inseparable from the greatest concerts of the last 40 years. Very comfortable on a stage or in a theater, the ZED-16FX is as much in its element in a recording studio or on a fixed installation thanks to its numerous analog and digital outputs. Delivered with Sonar LE audio acquisition software, the ZED-16FX has a USB interface that induces the sending and the return of a stereo signal between the computer and the console. Perfect to register, this interface is a real asset that eliminates the purchase of an external sound card, expensive and cumbersome.
Always more versatile and complete, the ZED-16FX is as comfortable on a stage in the studio or fixed installation thanks to its various advanced features. In fine, it will delight both music groups and directors of small theaters.

• 10 monaural mono balanced inputs on XLR / line on Jack. Insertion on Jack. 48V Common Ghost Switch. Adjustable gain. Low-cut filter. 3-band equalizer including 1 semi-parametric. 4 auxiliary sends (1 & 2 pre, 3 & 4 post-fader including 4 to internal effect without physical output). Panoramic. Level on fader ALPS 100 mm. Mute and PFL. Saturation indicator.
• 3 unbalanced stereo line inputs (1 Jack per channel). Adjustable gain. Fixed 2-band equalizer. 4 auxiliary sends (1 & 2 pre-fader switchable into 2 mono or 1 stereo, 3 & 4 post-fader including 4 to internal effects without physical output), balance. Level on faderALPS 100 mm. Mute and PFL. Saturation indicator.
• 2 stereo effects returns. Adjustable level and assignment to stereo channels No. 1, No. 2 or L / R bus.
• 3 aux sends on asymmetrical Jack, adjustable level (Aux 1 and 2).
• 16 multi internal effects on Aux 4 with 6.35 mm connector for external switch switch. • Stereo general output on 2 balanced XLRs with insertion + mono summation with unbalanced jack output. Faders 100 mm. Bargraph 12 segments.
• Headphone outputs on 1/4 "and 3.5mm Jacks listen to LR or PFL / AFL, adjustable level.
• USB port: stereo start to external PC = L / R bus orAux 1/2 orAux 3/4. Stereo Return to L / R or Stereo Channel # 3. 16-bit 32-48 kHz 16-bit A / D and D / A converters. Integrated power supply 100-240 V, 50/60 Hz.
Dimensions : L 464 x P 465 x H 45/100 mm. Weight: 8.5 kg. Racking possible (ZED18 / 16-RK).


Category: analog table
Number of channels: 16
Number of faders: 16
Fader Race: 100
Motorized faders: no
Number of auxiliary departures: 4
Number of mic preamps: 10
Integrated effects: yes
EQ: 3-band with mid semi-param and 3-band depending on slice
Filters: low cut
Line Inputs: 10 x mono jack, 4 x stereo
Mic inputs: 10 x XLR
Inputs (other): inserts: jack on each mono input, 2 x phono, USB

Main outputs: mono jack, 2 x XLR
Outputs (others): 2 x RCA, stereo headphone jack, stereo minijack headphones, 3 x auxiliary jack, RCA recording, alternative (RCA), 2 RCA tracks, USB
Insert: yes
PFL / AFL mode: yes
Scene memory recall: no
Recording: USB
Software Controller: No
Bluetooth: no
Phantom power: no
Rackable: yes
Dimensions (mm): 464 x 465 x 45
Weight (kg): 8.00
