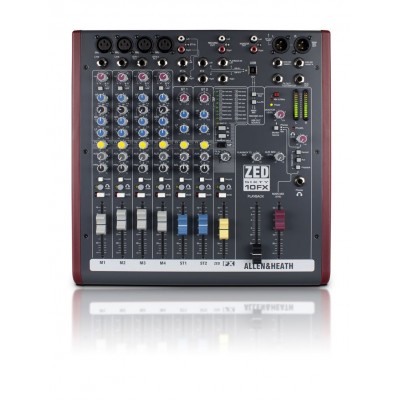

A premium version of the ZED-10FX, the ZED60-10FX sports a series of professional 60mm faders for superior accuracy and faster playback of each channel level.
Simple but expert. Built on the basis of the ZED-10FX, the ZED60-10FX is a compact analog console perfect for many applications. Very versatile, it is aimed at solo artists as well as small groups or audiovisual structures. The professional-grade 60mm faders that this model sports invite you to a unique mixing experience, and provide unparalleled readability of the level of each channel. The dream of every musician. The ZED60-10FX was developed by Allen & Heath to meet the demands of musicians and the most demanding users. Heir to Allen & Heath know-how in the design of professional mixers, the console incorporates high-gain preamps that sublimate the sound of your microphones and instruments without difficulty. Specially designed for guitarists, the 3 and 4 jack inputs are equipped with a high impedance circuit capable of handling the signal of an electric guitar without the addition of a direct box. These specially developed ZED inputs offer very close preamp playback through a Class A FET circuit. For very low-output instruments, Allen & Heath has integrated two switches on the back of the console, providing 26 dB boost that delivers a warm and rich sound. A console that lives up to your expectations. With a ZED-10FX-like design, the ZED60-10FX features a highly intuitive and efficient interface that is the strength of Allen & Heath's compact analog consoles, while retaining significant signal routing capabilities. The 3-band EQ with semi-parametric MusiQ optimized mic provides a very musical rendering that provides excellent control over your sound. In addition, the ZED60-10FX incorporates a user-acclaimed effects engine with 16 reverb and echo types that specifically target the needs of musicians. Farewell heavy effects modules to carry during rehearsals and concerts! This premium version of the ZED-10FX, complete with professional 60mm faders and a full-featured effects engine, will satisfy even the most demanding users seeking precision and increased control of the mix. A real plus, simply essential for live and professional applications!
The ZED60-10FX consoles are impressive tools for mixing small groups. Ideal for mobile use, they can be used to record live or in studio. They have configurable USB audio input / output, making it easy to capture stereo recordings. Guitars can be plugged directly into these mixers using the adjustable high-impedance inputs provided for this purpose, while you still have two stereo inputs for a CD / MP3 player or keyboard. They are also equipped with professional XLR stereo outputs, a flexible monitoring section and headphone output and speakers. In the FX version, an effects processor offers a range of 16 effects, mainly delays and reverbs and a flanger.
Category: analog table Number of channels: 10 Number of faders: 9 Fader Course: 60 Motorized faders: no Number of auxiliary departures: 2 Number of microphone preamps: 4 Integrated effects: yes EQ: 3-band with mid semi-param and 3-band depending on slice Filters: low cut Line inputs: 2 x jack, 2 x stereo jack, 4 x jack, 2 x stereo jack playback Mic Inputs: 4 x XLR Inputs (other): USB
Main Outputs: 2 x XLR Outputs (others): 2 x RCA, auxiliary jack, stereo headphone jack, stereo mini headphone, RCA recording, USB Insert: yes PFL / AFL mode: yes Scene memory recall: no Recording: USB Software Controller: No Bluetooth: no Phantom power: yes LED display Rackable: yes Dimensions (mm): 336 x 346 x 50 Weight (kg): 4.50
Brand reference number:SAE ZED60-10FX
