Bird BASIS MIXER BM602U

This product is currently not available for sale.

We recommend:

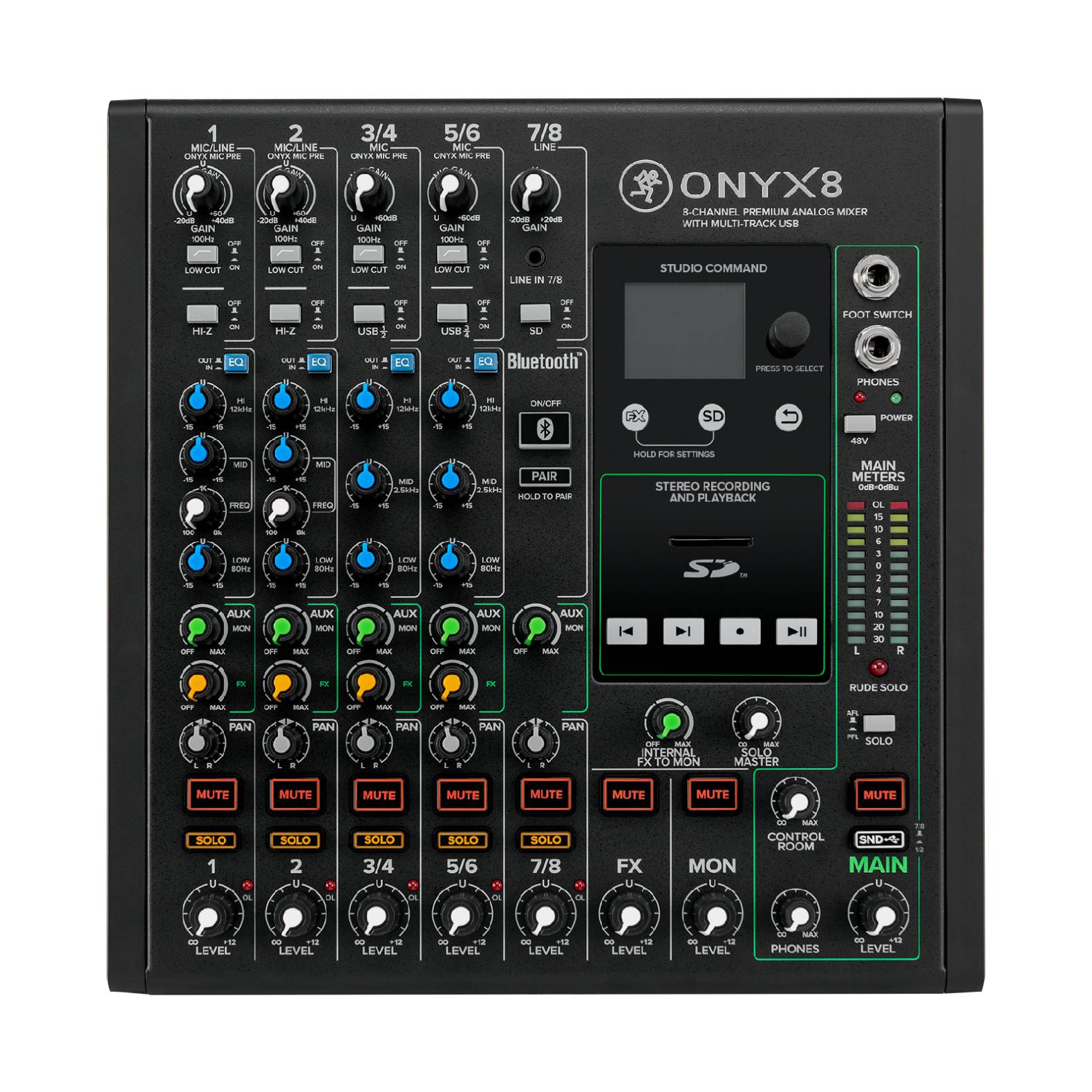

MACKIE ONYX 8

Mackie ONYX 8

349 €
or
Online
See the product sheet

Bird BASIS MIXER BM602U

reference icon
Ref.: 124922

Description

Easy to use, versatile and offering a minimal footprint, the Bird's BASIS series will convince the most demanding users on the lookout for efficiency.

Main features:

6 inputs (2 mono / 4 stereo) analogue mixing console
Mono inputs:
- XLR microphone input with +48V phantom power
- 1/4" Line input
Stereo inputs:
- 1/4" TRS Line input (Left input normalized as mono)
1/8" mini-jack CD input
2-band fixed frequency EQ per channel (±15dB @ 80Hz and 12kHz)
RCA (2TRK) stereo Input / Output
1 x 1/4" TRS plug output for return or external effect
Master Bus with 4-stage level indicator (-20 / -10 / 0 / Clip)
1/4" Master Output
Comes with power supply cord 12V / 1.5A (ext. neg / ins. Pos.) and microphone stand adaptor
USB interface allowing direct PC recording

Technical specifications:

- Frequency response: 20Hz  20kHz @ ± 1dB
- THD: < 0.008% @ + 10dBu
- Signal/Noise ratio
Main Output: - 103dB
Auxiliary Output: - 90dB

- Gain:
Mic Input: 0dB / + 45dB
Line Input: - 20dB / + 25dB

- Equalization:
Treble: ± 15dB @ 12kHz
Bass: + 15dB @ 80Hz

- Max Output:
Main Output + 21dBu
Auxiliary Output + 21dBu
Phones Output + 18dBu

- Impedance:
Mic Input 2.3kΩ balanced
Line Input 20kΩ balanced
RCA Input 24kΩ unbalanced
Main Output 120Ω
Auxiliary Output 120Ω
RCA Output 1kΩ
Phones Output 25Ω
- Level indicator (LED): -20 / -10 / 0 / CLIP

- Power consumption: 11W

- Dimensions:
220 x 160 x 68mm / 8.6" x 6.3" x 2.6"

- Net weight:
780g / 1.7lbs
Brand reference number: SWB 124922
