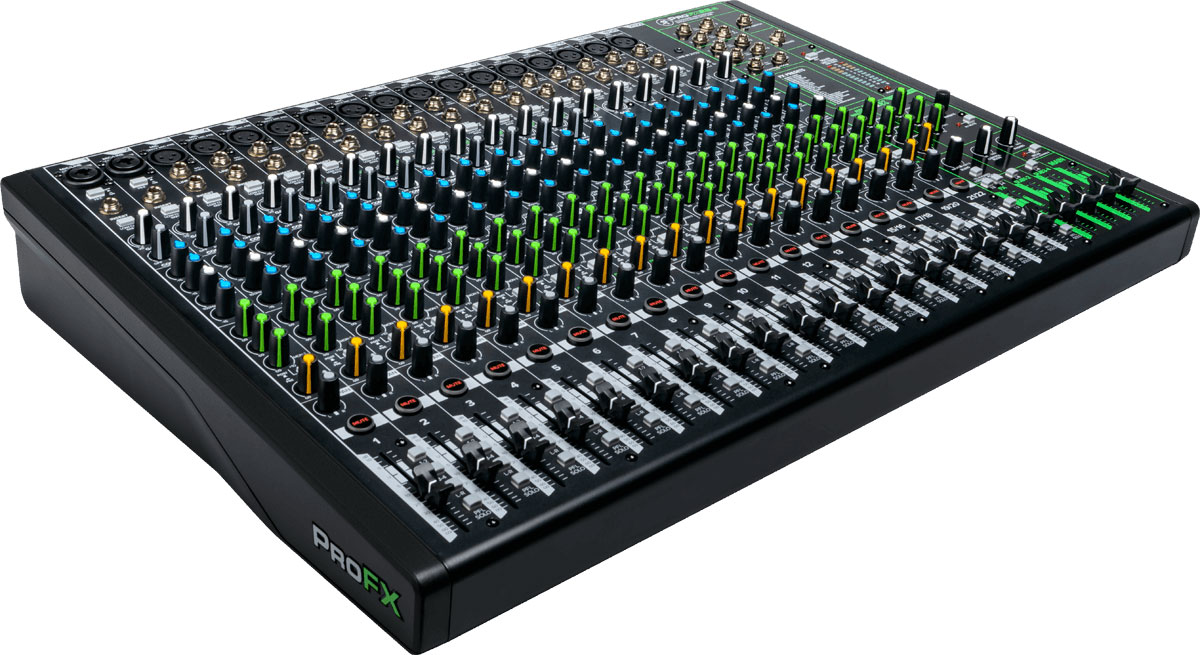

Essential Information About the ProFXv3 Mixing Console
- Stage and Studio Versatility: numerous mic/line inputs, channel inserts, 2 subgroups, and full routing for live, recording, and streaming.
- Built-in Processing: compressors on channels 1 to 12, 3-band EQ (semi-parametric mids), 100 Hz high-pass filters, and dedicated volume/mute/solo/pan controls.
- USB Audio Interface: playback/recording with "USB/DIRECT" mix control on the headphone and Control Room outputs for zero-latency monitoring.
- GigFX Effects: 24 musical presets with foot control to enhance vocals, instruments, and mixes in a snap.
The ProFXv3 Series, a Benchmark for Versatile Consoles
An evolution of a highly acclaimed range, the ProFXv3 emphasizes touring reliability and home studio simplicity. It combines transparent preamps, efficient onboard processing, and a convenient USB interface. Inserts, subgroups, and multiple outputs ensure clean integration into any sound reinforcement or production setup.
Who Is It For and What Are Its Uses?
Ideal for bands, small venues, schools, places of worship, and content creators, this console covers live sound capture, multitrack rehearsal recording, streaming, and podcasting. Flexible monitoring (headphone and Control Room) facilitates personalized foldbacks and mix control at every stage.
Key Features for a Smooth Workflow
Inputs and Channel Processing
The mic/line inputs feature inserts, generous gain (up to 60 dB), and a 100 Hz high-pass filter. The first channels benefit from an integrated compressor to tame dynamics, while the 3-band EQ with semi-parametric mids allows precise shaping (channels 15/16 have a 3-band EQ).
USB Interface and Monitoring
The USB port handles playback and recording. The "USB/DIRECT" control on the headphone and Control Room outputs allows custom monitoring, useful for overdubs, live streaming, and quick soundchecks.
Routing, Effects, and Outputs
Two subgroups facilitate managing groups (drums, choirs, keyboards). The GigFX multi-effect with 24 presets, footswitch controllable, adds reverbs, delays, and modulations. The main outputs in XLR and 6.35 mm TRS, as well as FX, Monitor, Control Room, and headphone outputs, cover all scenarios.
Technical Specifications
Inputs and Channels
- 2 mono combo XLR/TRS balanced inputs with insert, adjustable gain (60 dB), Hi-Z switch, and 100 Hz high-pass filter
- 12 mono mic/line XLR and 6.35 mm TRS balanced inputs with insert, adjustable gain (60 dB), and 100 Hz high-pass filter
- 3 mono/stereo mic/line inputs with 2 x 6.35 mm TRS balanced jacks
- 1 stereo minijack input with gain control
Channel Processing and Controls
- Volume, mute, solo, pan controls
- 1 FX send and 3 monitor sends (including 3 pre/post switchable)
- Signal indicator and 3-band EQ with semi-parametric mids per channel (except 15/16: 3-band EQ)
- Compressor on channels 1 to 12
- 48 V phantom power
USB Interface and Monitoring
- USB port (playback and recording)
- "USB/DIRECT" mix control on headphone and Control Room outputs
Routing and Outputs
- 2 subgroups with independent outputs
- Main L & R outputs in XLR and 6.35 mm TRS balanced with 12-segment LED level meter
- FX and Control Room outputs in 6.35 mm TRS balanced with independent volume control
- Headphone output 6.35 mm jack with volume control
- Monitor and FX outputs in 6.35 mm TRS balanced
Built-in Effects
- GigFX multi-effect with 24 presets and footswitch control
Dimensions and Weight
- Dimensions: 434 x 612 x 112 mm
- Weight: 9 kg
Included Software
- Includes: "Waveform OEM" and the "DAW Essentials" collection featuring 16 effects plug-ins compatible with any DAW
