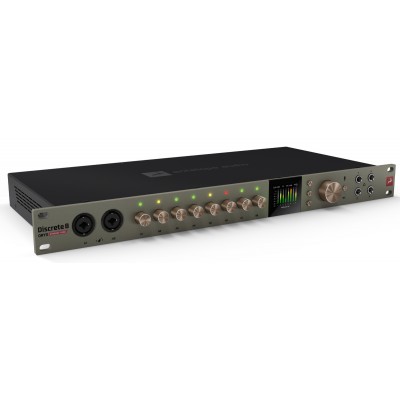

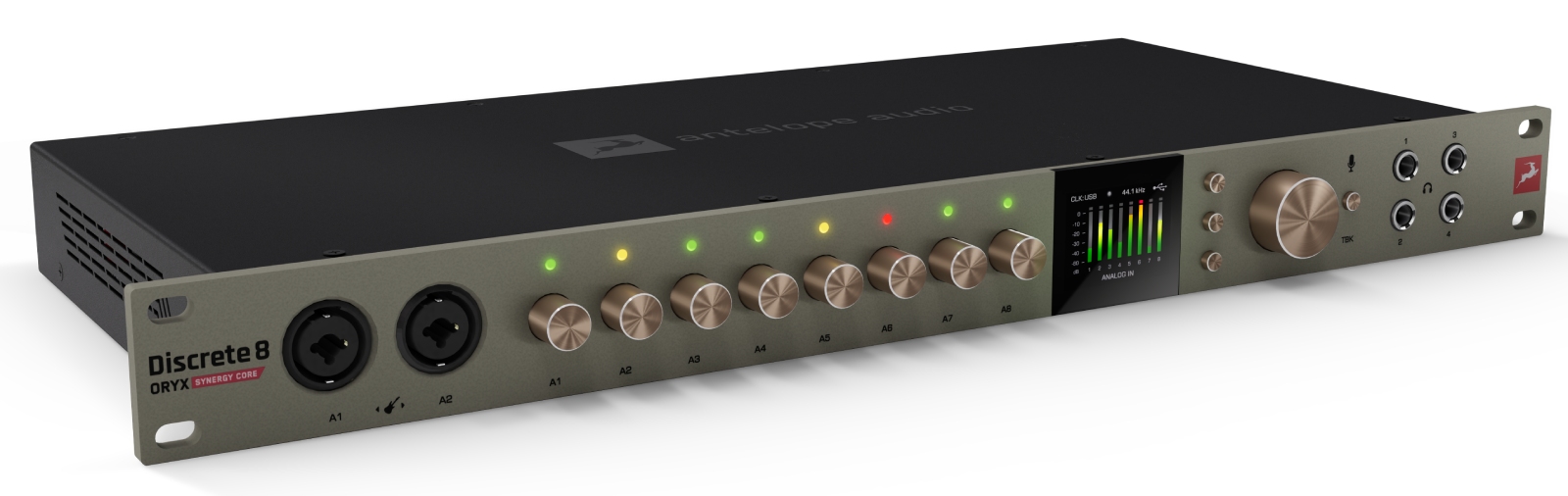

Antelope Discrete 8 Oryx

The essentials to know about the Antelope Audio Discrete 8 Oryx audio interface

• High-end conversion and clocking: latest generation AD/DA converters (up to 130 dB dynamic range) and 64-bit AFC clocking technology for precise stereo imaging and enhanced depth.
• 8 discrete preamps: 6-transistor topology inspired by consoles, designed for detailed recordings, with excellent signal-to-noise ratio and comfortable gain headroom.
• Synergy Core real-time effects: embedded platform combining 2 DSP chips and 1 FPGA chip, with 37 built-in effects for recording and monitoring with imperceptible latency.
• Studio hub ready for hybrid setups: virtual patchbay, rich analog and digital connectivity (ADAT, S/PDIF, Wordclock, reamp, DB25) and simultaneous I/O usage for multi-instrument setups.

Discrete 8 Oryx: Antelope DNA, designed as a modern studio centerpiece

The Discrete 8 Oryx condenses Antelope Audio's historical strengths into a rack format focused on production: particular attention to synchronization (64-bit AFC) and conversion, while adding a "integrated studio" dimension thanks to real-time effects and advanced routing. Within the lineup, it positions itself as an interface capable of being the centerpiece: multi-source capture, refined monitoring, and easy integration into a hybrid workflow combining instruments, external gear, and DAW environment.

Intended uses: production, multi-instrument recording, and band tracking

Designed for producers, engineers, and musicians who want to record quickly and cleanly, the Discrete 8 Oryx excels as sessions get dense: drums, guitars, vocals, synths, or live recording in a home studio. Its multiple combo inputs facilitate switching between mic, line, and Hi-Z, while monitoring and routing allow building dedicated headphone mixes, integrating external processing, or feeding specific outputs for reamping and stage use.

Conversion, preamps, and effects: a complete chain for uncompromising recording

AD/DA conversion and 64-bit AFC clocking: precision, width, and stability

The core of the Discrete 8 Oryx relies on conversion up to 192 kHz and a dynamic range rated up to 130 dB, supported by Acoustically Focused Clocking (AFC) 64-bit technology. The goal is clear: stable playback, more readable stereo localization, and more natural depth, both in recording and playback, enabling faster mixing decisions.

8 discrete preamps: "console" character and clean capture

The 8 discrete 6-transistor preamps target those who want detailed and solid capture without harshness. The design emphasizes low noise and controlled dynamics, useful on demanding vocals as well as transient sources (snare, percussion) or more delicate sources. The 48 V phantom power allows working confidently with condenser microphones, while the Hi-Z inputs simplify direct recording of guitars and basses.

Synergy Core: real-time effects for monitoring and recording

The Synergy Core platform (2 DSPs and 1 FPGA) enables real-time processing, with monitoring latency under 1 ms when using SC effects. In practice, this is an immediate advantage for recording vocals with an inspiring chain (compression, EQ, reverb), tracking guitar with amp sound, or offloading the computer from the most demanding processing during takes.

A pack of 37 effects is included, covering essential studio needs: modeled preamps, equalizers, compressors and limiters, guitar amps and cabinets, cleaning tools (expanders, noise gates), reverb, and tuner. This provides a coherent environment for tracking, session preparation, and creative monitoring directly from the interface.

Extended routing and connectivity: virtual patchbay, reamp, ADAT, and Wordclock

The Discrete 8 Oryx is designed to "connect everything": analog I/O, digital expansions, and synchronization. The virtual patchbay facilitates complex routings (multi-headphones, inserts, external effects returns, stems), and ADAT and S/PDIF connectivity allows expanding channel count to support studio growth. Dedicated reamp outputs also simplify switching from DI takes to an amp or effects chain without hassle.

Technical specifications

Interface and platform

• USB audio interface
• 26x38 USB 2.0 audio interface with integrated real-time effects
• Synergy Core embedded platform with 2x DSP and 1x FPGA chip

Conversion and audio performance

• AD/DA conversion: up to 64 bits / 192 kHz
• Up to 130 dB dynamic range
• Equivalent input noise (EIN): -128 dBu (A-weighted)
• Dynamic range: -122 dB (A-weighted)
• THD: -116 dB

Preamps and microphone power

• 8 discrete 6-transistor preamps
• Maximum gain: 65 dB
• 48 V phantom power

Effects and processing

• 37 SC analog-modeled effects
• Latency under 1 ms for real-time monitoring with SC effects

Analog inputs

• 6 combo Mic/Line inputs: XLR/jack
• 2 combo Mic/Line/Hi-Z inputs: XLR/jack

Analog outputs and monitoring

• 1 DC-coupled line output (8 channels) via D-Sub 25
• 1 monitor output L/R: 6.3 mm jack
• 2 Reamp outputs: 6.3 mm jack
• 2 stereo headphone outputs: 6.3 mm jack with separate level control

Digital connectivity and synchronization

• 2 ADAT inputs/outputs (up to 16 channels)
• 1 S/PDIF input/output
• 1 Wordclock input
• 3 Wordclock outputs
• Acoustically Focused Clocking (AFC) 64-bit locking technology
• Digitally expandable via ADAT (16 channels) and S/PDIF (2 channels each)

Included and practical information

• Included: USB 2.0 type B cable and power adapter
• Dimensions (W x H x D): 483 x 44 x 220 mm
• Weight: 3.1 kg
