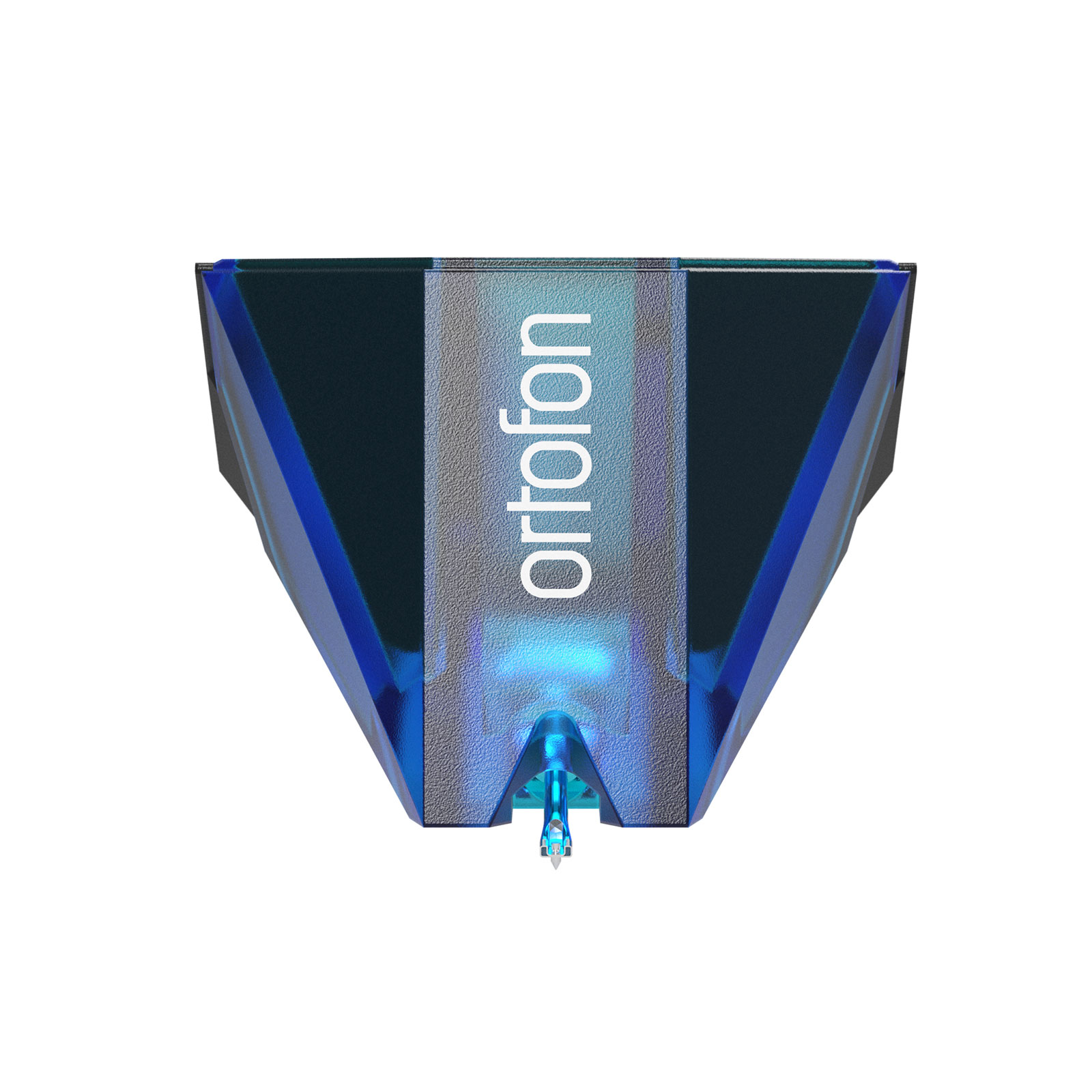

Ortofon Hifi 2MR BLUE

199
or
icon-cart Add
favorite_border
Online : sent within 15 days
shipping icon
Shipping: Shipping cost calculated on next step
warranty icon
This item is warranted for 3 years
reference icon
Ref.: 387928
Register here and stay informed about the next restock

Description

The Essentials to Know About the 2M Blue Phono Cartridge

  • Detailed and musical sound thanks to a nude elliptical diamond, ideal for revealing the nuances of your vinyl records.
  • Comfortable output level (5.5 mV) for easy pairing with most MM phono preamps and phono inputs.
  • Controlled stereo balance and good channel separation for a more stable and better-defined soundstage.
  • Upgradeable and practical : replacement 2M Blue diamond interchangeable with 2M Red and 2M Silver.

An MM Reference Designed to Take Your Vinyl Playback to the Next Level

The 2M Blue belongs to the family of MM (moving magnet) phono cartridges, designed to offer an audible upgrade without complicating the setup. It targets users who want to gain in definition, tracking cleanliness, and transient precision, while maintaining the broad compatibility and ease of use typical of an MM cartridge.

Who Is It For, and In What Uses?

This cartridge is aimed at discerning vinyl enthusiasts, DJs focused on listening/selection (rather than "battle" use), as well as hi-fi and home studio setups where playback must remain reliable and expressive. It is particularly suitable for turntables used for extended listening, digging sessions, or record recordings (rips) where a good balance between dynamics, finesse, and timbral accuracy is sought.

With a tracking force range of 1.6 to 2.0 g (recommended 1.8 g), it is easy to set up and remains tolerant, provided that alignment and tonearm adjustment are carefully done. Its excellent stated frequency response of 20 to 20,000 Hz (+2 / -1 dB) makes it a versatile solution, comfortable on both very clean modern pressings and older records.

Features and Innovations

The 2M Blue adopts a nude elliptical stylus, a choice appreciated for its ability to read grooves with more precision than a standard elliptical tip, limiting information loss and improving micro-detail reproduction. In terms of performance, the cartridge offers a channel separation of 25 dB at 1 kHz (15 dB at 15 kHz) and a channel balance of 1.5 dB at 1 kHz, values that contribute to a more coherent stereo image.

Electrical compatibility is clearly MM-typed: recommended load resistance of 47 kOhm and recommended load capacitance of 150 to 300 pF. With an internal impedance of 1.3 ohms and internal inductance of 700 mH, pairing with a properly adjusted phono preamp (load/capacitance) will optimize transparency and tonal balance. Finally, the diamond's lifespan can reach up to 1000 hours with proper care, making it a relevant choice for regular listening, provided records and stylus are kept clean and the recommended tracking force is respected.

Technical Specifications

Type and Diamond

  • Type: MM (Moving Magnet)
  • Diamond: Nude / Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking angle: 20 degrees
  • Replacement diamond: 2M Blue (interchangeable with 2M Red and 2M Silver)
  • Diamond lifespan: with proper care, up to 1000 hours possible without performance degradation

Audio Performance

  • Output voltage at 1000 Hz, 5 cm/sec: 5.5 mV
  • Channel balance at 1 kHz: 1.5 dB
  • Channel separation at 1 kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency response: 20-20,000 Hz (+2 / -1 dB)

Tracking, Compliance, and Tracking Force

  • Tracking capacity (315 Hz with recommended tracking force): 80 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Tracking force range: 1.6 to 2.0 g (16 to 20 mN)
  • Recommended tracking force: 1.8 g (18 mN)

Electrical Parameters and Recommended Load

  • Internal impedance: 1.3 ohms
  • Internal inductance: 700 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF

Design, Colors, and Weight

  • Cartridge and stylus color: Black/Blue
  • Weight of 2MR cartridge: 6 g
  • Weight of Verso 2M and 2M cartridges: 7.2 g
  • Weight of pre-mounted 2M cartridge: 16.7 g
Brand reference number: 9030_2MR_BLU
