Description

- Type: MC (Moving Coil) - Diamond: Nude Tip / Line Contact Shibata - Cantilever: Bore - Output voltage at 1000 Hz, 5 cm/sec. - 0.33 mV - Channel balance at 1 kHz - < 0.8 dB - Channel separation at 1 kHz -> 27 dB - Channel separation at 15 kHz -> 20 dB - Frequency response 20 Hz - 20 kHz - +1.5/0 - Tracking capacity (315 Hz with recommended tracking force): 90 µm - Compliance, dynamic, lateral: 16 µm/mN - Stylus tip radius: - r/R 6/50 µm - Tracking force range: 2.0-2.5 g (20-25 mN) - Recommended tracking force: 2.3 g (23 mN) - Tracking angle: 20° - Internal impedance: 5 Ohm - Recommended load impedance: > 10 Ohm - Cartridge body material - Stainless steel Aluminum - Cartridge color - Black/Black - Cartridge weight - 10.7 grams

Brand reference number: 9030_MC_CAD_BLA

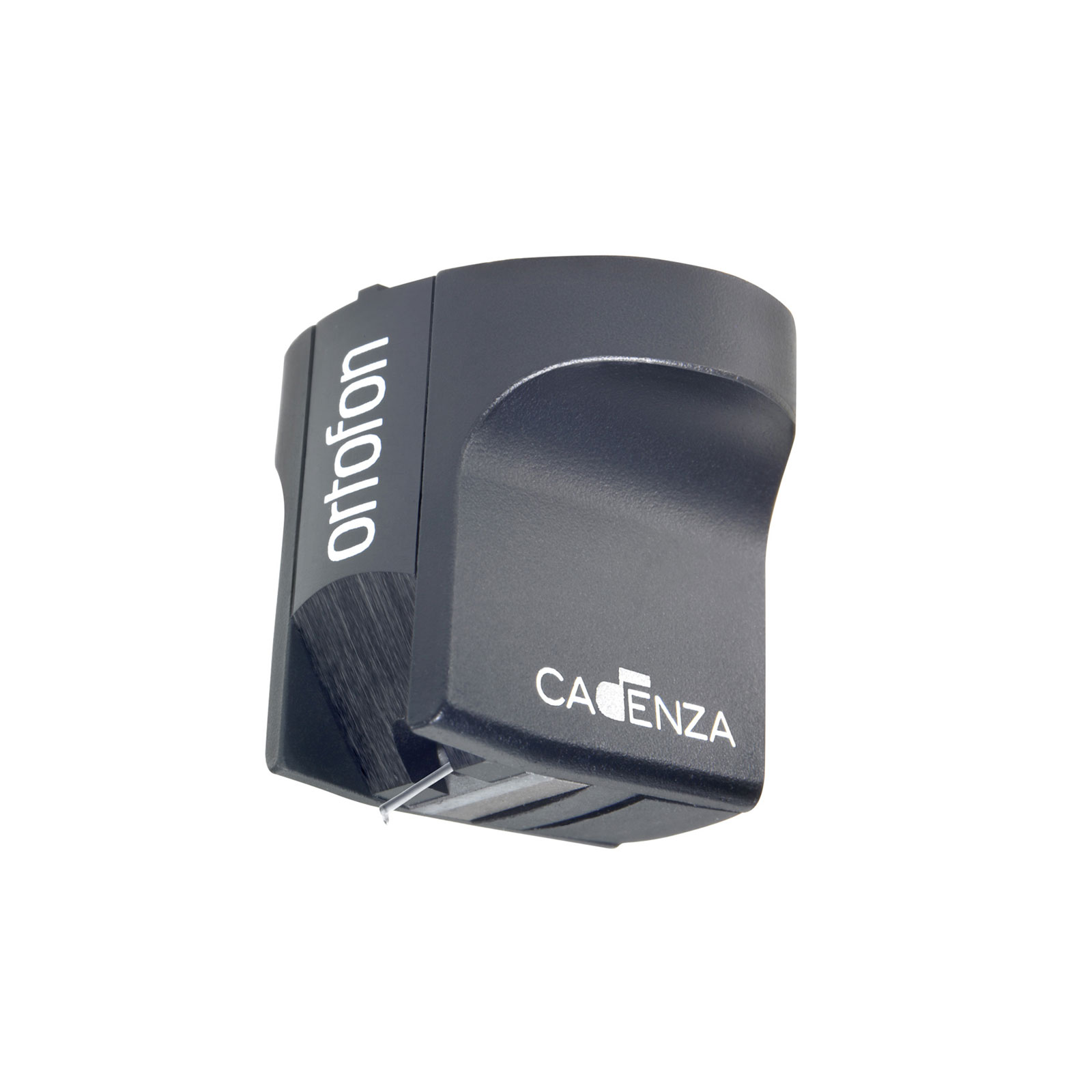

Ortofon Hifi MC CADENZA BLACK

Ortofon Hifi MC CADENZA BLACK
