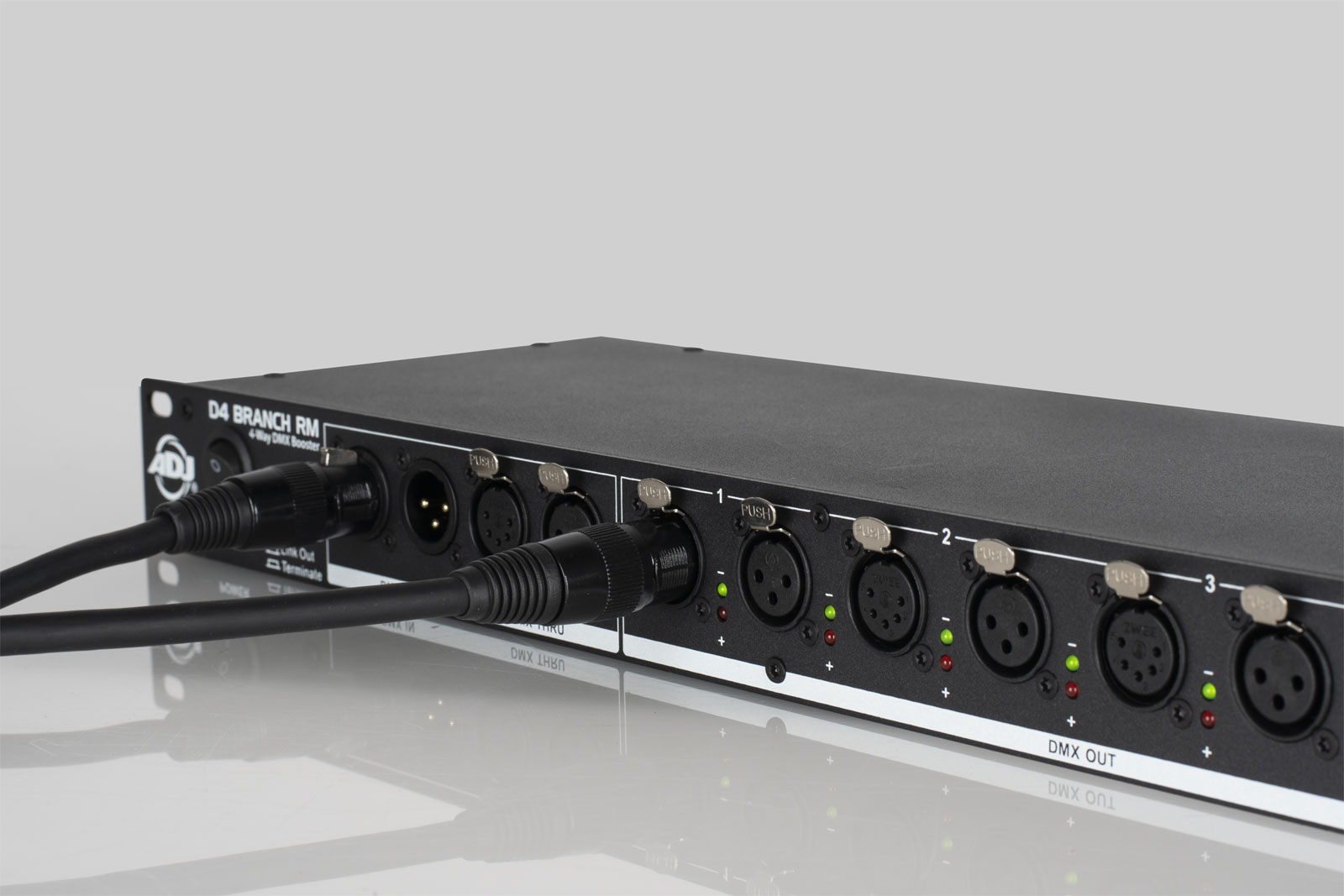

ADJ - D4 Branch RM - 4-Way BoosterThe D4 Branch RM? is a 4-way distributor/booster, single rack space, with 3- and 5-pin XLR input and output connectors. This unit takes the incoming DMX signal and splits it to four (4) separate outputs which are electronically isolated from each other to ensure uninterrupted data. Additionally, each output has dedicated drivers to boost the incoming signal, and the unit includes a Link/Terminate button to facilitate troubleshooting.
Features:
- 4-way DMX data splitter / Fully DMX512 (1990) compliant
- "Link / Terminate" button for easy troubleshooting
- DMX status LED indicator
- (1) isolated 3-pin + (1) 5-pin XLR inputs
- (1) passive loop-through 3-pin XLR output + (1) 5-pin
- (4) isolated 3-pin XLR outputs + (4) 5-pin
