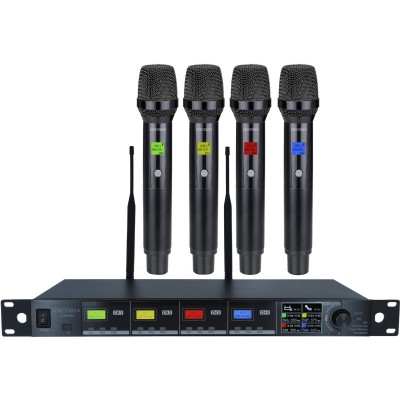

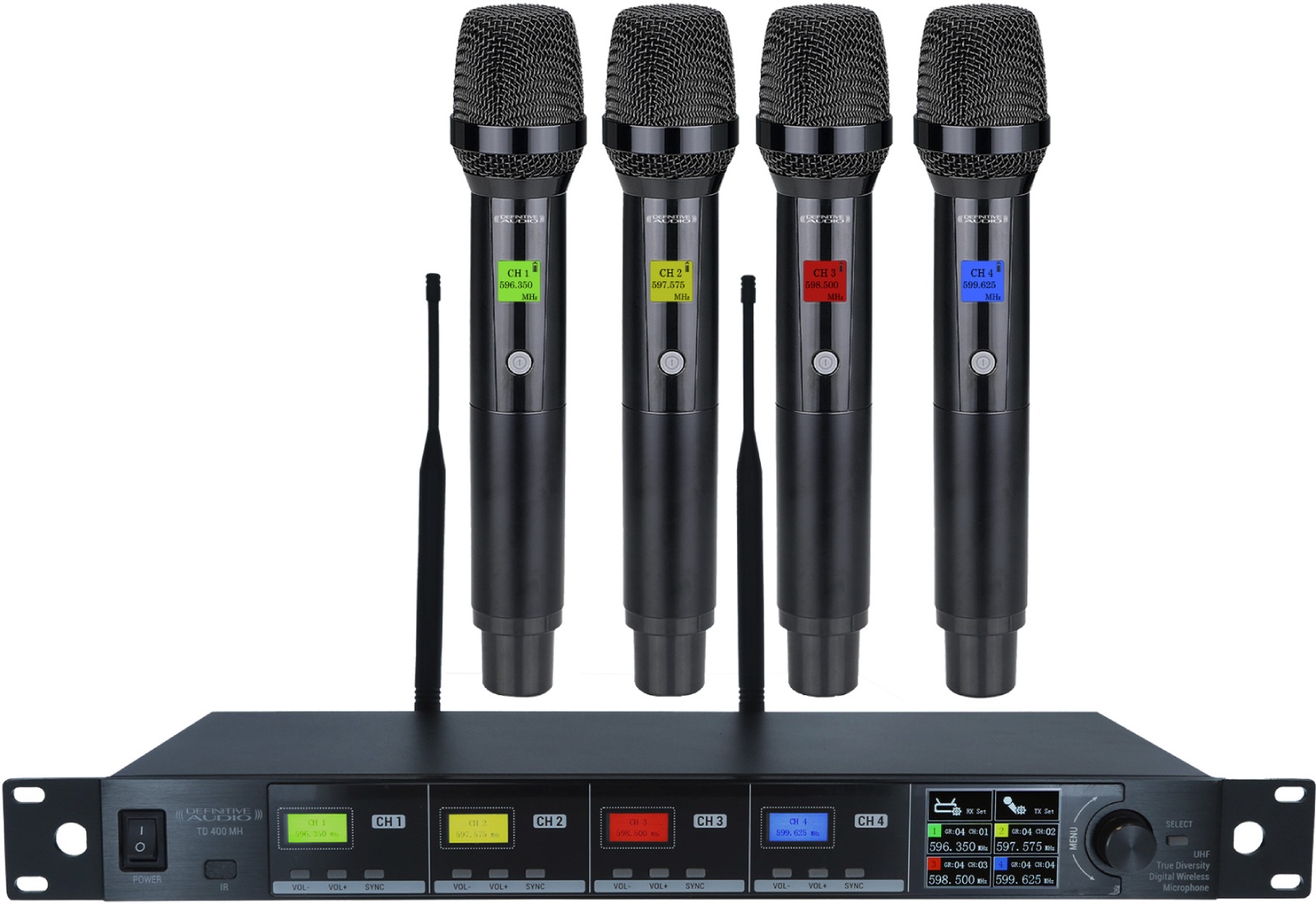

- Quad Main UHF True Diversity 4-channel microphones - UHF band, PLL phase-locked loop, stable characteristics, low harmonic radiation. - UHF frequency range 580 - 608 MHz - 7-band adjustable equalization processor. - Maximum transmission power: 13dBm (depending on region). - Integrated antenna distribution system - Frequency group design - Up to 50 MHz tuning bandwidth for up to 2000 switchable frequencies (depending on region). - 4 color LCD displays. - Adjustable background color of sub-display design - 1 main control + 4 sub-channels with LCD color display to show functions. - 1U chassis. - Rack brackets supplied - 2 antenna sockets - 2 separate antennas for better reception - 4 balanced XLR outputs - Balanced Mix Out jack output - ACT function: wireless transmitter synchronization via infrared interface. - Frequency response range from 50Hz to 16KHz with flat response.
Technical parameters Receiver : - Receiving channel: single channel - Oscillation mode: Phase-locked PLL Frequency synthesis - Modulation mode: FM modulation - RF sensitivity: Input 6dB?V, S/N>80dB - Working range: 60 m linear distance. - Silent control mode: audio code and noise lock - Integrated frequency response: 50Hz to 18KHz (± 3 dB) - Built-in THD: <0.5% at 1KHz - Panel display: LCD + LED - Dimensions (mm): 483 x 46 x 162 - Weight: 4.60 Kg
Handheld microphone x4 : - Oscillation mode: PLL phase-locked frequency synthesis - Capture gain: fixed gain - Transmit power: up to 30 mW, depending on region - Current consumption: <130mA - Color LCD display - Microphone capsule: cardioid
