The P3R is a wireless stereo bodypack receiver for use with the PSM300 Personal Monitor System.
With 24-bit digital audio clarity and up to 90 meters of range , the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode® technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.
Includes zippered bag and 2 AA batteries.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Frequency Band: K3E: 606 ? 630 MHz
Features ? Slim, lightweight, durable form factor ? Frequency scan and IR sync quickly finds and assigns a clean channel ? MixMode® technology enables adjustment of two independent monitoring mix levels ? Stereo mode enables adjustment of left/right balance ? Easy to adjust volume knob and mix control ? 2 AA batteries provide up to 7 hours of continuous operation ? Power save mode preserves battery life when earphones are not connected ? Power and battery status LED

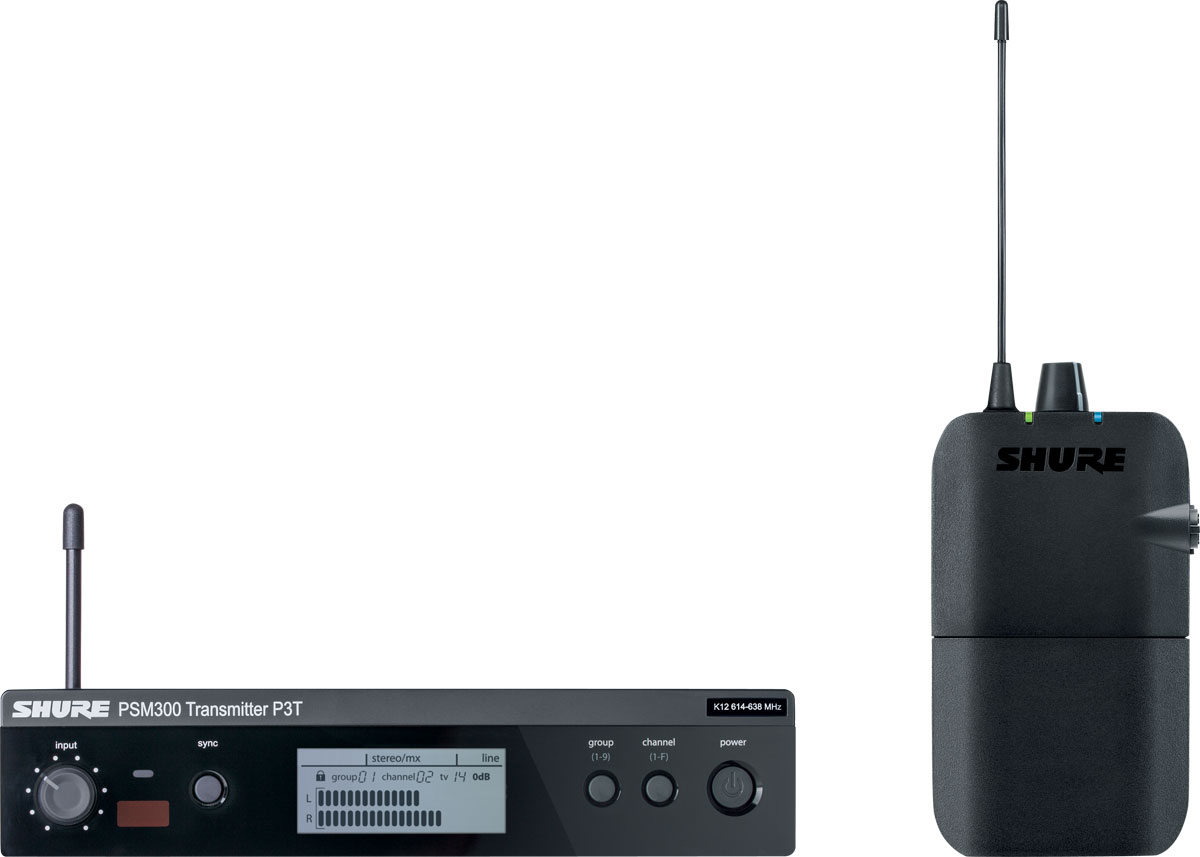

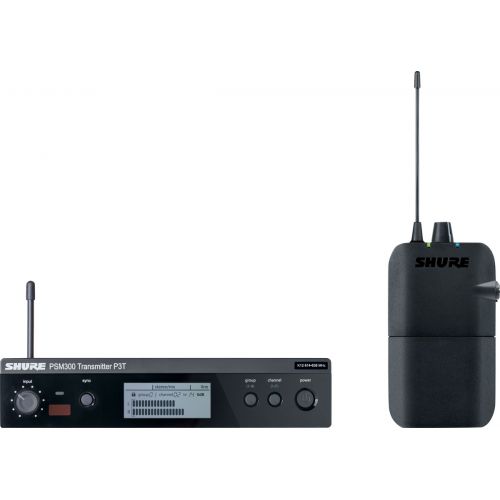

The P3T is a wireless transmitter for use with the PSM300 Personal Monitor System. Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.
Includes rack mount and hardware kit, ¼ wave antenna, power supply, and user guide.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Frequency Band: K3E: 606 ? 630 MHz
Features ? Single channel, half-rack transmitter with included rack mount kit ? Sends a stereo or mono mix wirelessly to performers onstage ? Rock-solid wireless connection to PSM300 receivers over a 90 meter range ? One-touch IR sync instantly links transmitter to receiver ? Up to 30 mW output power (region dependent) ? Up to 24 MHz tuning range (region dependent) ? ¼? (6.3 mm) TRS balanced inputs and loop outputs ? High-contrast LCD screen with left/right audio output meters ? Detachable ¼ wave antenna ? Selectable line/aux level ? RF Output Power: 10 - 30 mW (varies by region) mW ? Input Impedance: 40 Ohm
