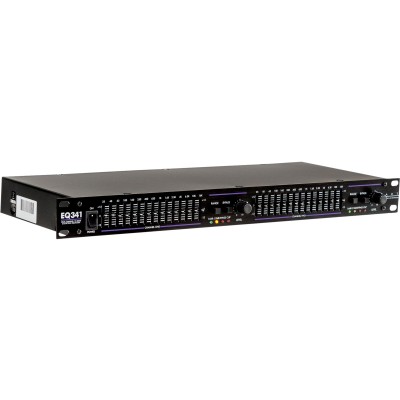

ART's 341 Dual Channel 15 band 2/3 octave graphic equalizer features: constant Q circuitry with a 3% center frequency accuracy, 20mm center detent sliders, selectable boost/cut range of 6dB or 12dB, active balanced and unbalanced input and output connect-ions, variable input level control, clip level indicators, ground lift switch, internal power supply and selectable line voltage switch. A range control switch is provided allowing you to set the maximum boost or cut for each band of equalization to either 6dB or 12dB. Each channel has its own bypass switch with LED indicator. The rugged, all-steel constructed chassis occupies 1U rack space and is intended for installation in standard 19"" equipment racks.
Features
- Dual Channel 15-Band Graphic Equalizer
- Constant-Q Filtering
- Balanced XLR, Active Balanced 1/4"", and Unbalanced RCA Input and Output Connectors
- +/- 6dB or +/-12dB Level Adjustments
- 20mm Center Detented Frequency Band Sliders
- Independent Level and Bypass Controls Per Channel
- Designed for Years of continuous, reliable performance
- Rugged All Steel Construction
- Dimensions: 1.75"H x 19"W x 8.5"D (44.45mm x 482.6mm x 215.9mm)
- Weight: 4.5lbs (2.5kg)
