Features:

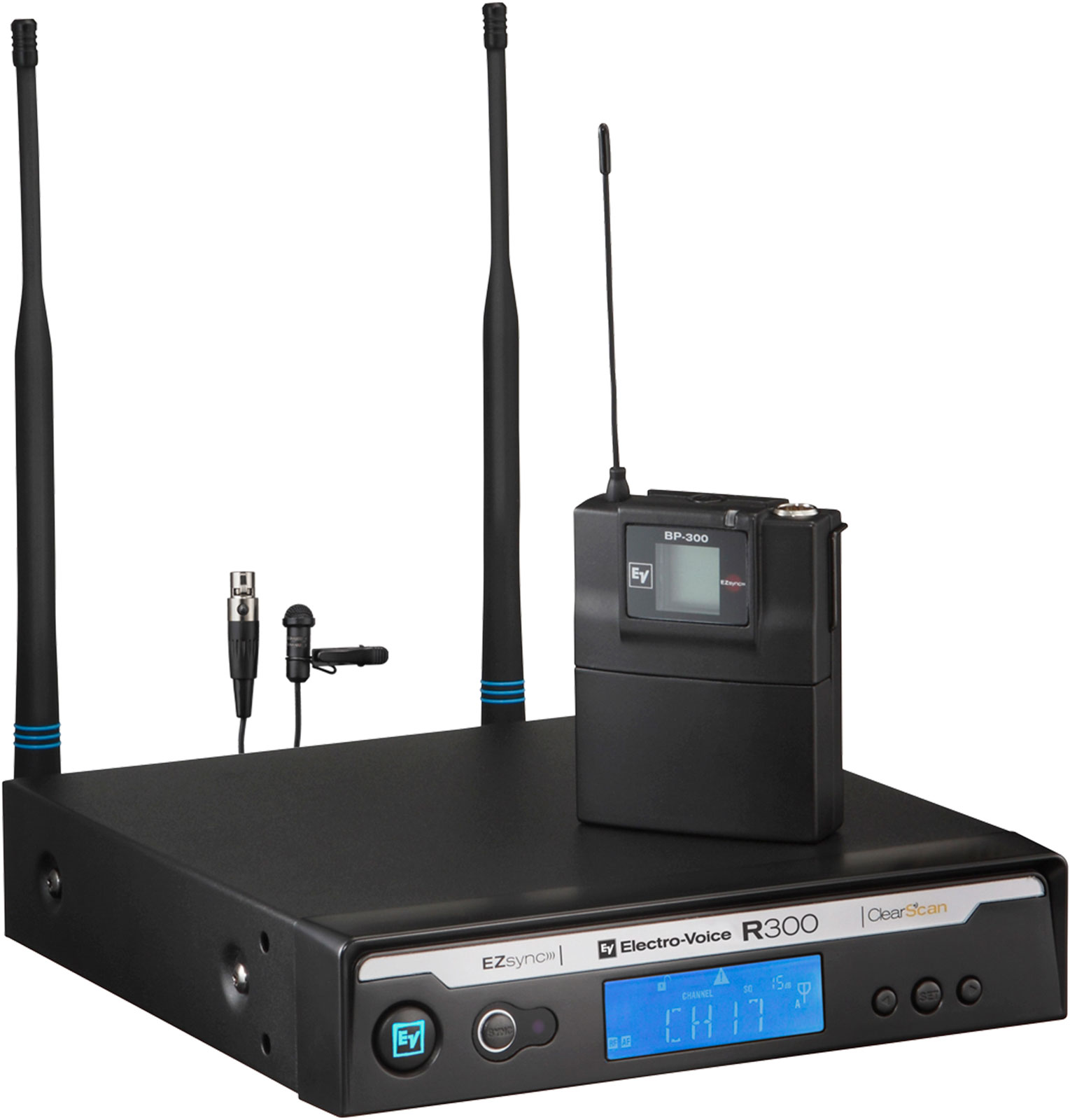

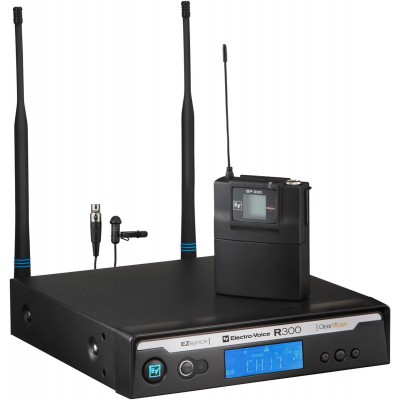

- Electro-Voice R300-L/B
- Wireless lavalier set, including:
- Electro-Voice ULM18
- Lavalier microphone
- Condenser capsule
- Polar pattern: Cardioid
- Frequency response: 100 Hz - 16 kHz
- Impedance: 200 Ω
- Max SPL: 120 dB
- Output level: 5.6 mV
- Sensitivity, open circuit voltage, 1 kHz: 10.0 mV/pascal
- Connector: TA4F
- Cable: 1.8 m
- Supplied with: clothing clip
- Dimensions: 80 x 80 x 20 mm
- Weight: 22 g
- Electro-Voice BP-300-B
- Bodypack transmitter
- Carrier frequency band: B (678 MHz - 694 MHz)
- 32 preset channels
- Channel selection: ClearScan
- Remote channel synchronization: EZsync
- Transmission power: 8 mW
- Display: Backlit LCD screen
- Connector: TA4F connection
- Pin 1: Ground
- Pin 2: Microphone input
- Pin 3: +5V bias
- Pin 4: +5 V via 2.2 kΩ
- Power supply: 2 x 1.5V AA batteries (LR6)
- Battery life: > 14 hours
- External flexible 1/4 wave antenna
- Robust metal housing
- Dimensions: 84 x 66 x 23 mm
- Electro-Voice R-300-B
- Receiver for wireless microphone system
- Carrier frequency band: B (678 MHz - 694 MHz)
- 32 preset channels
- Modulation: +/- 40 kHz
- Antenna diversity
- RF sensitivity: < 1.0 µV for 12 dB SINAD
- Image frequency rejection: > 55 dB
- Frequency response: 80 Hz - 18 kHz
- Distortion: < 1.0 %, 0.4 % typical
- Signal-to-noise ratio: > 100 dB A-weighted
- Dynamic range: > 95 dB
- Background noise suppression
- Channel selection: ClearScan
- Remote channel synchronization: EZsync
- Transmission power: 8 mW
- Display: Backlit LCD screen
- Connectors: XLR + 6.35 mm Jack
- Power supply: 12V 0.5A power adapter included
- Robust metal housing
- Dimensions: 210 x 206 x 43 mm
Brand reference number:
ELER300LB
