Shure SSR AD4DE-B - B Stock

BSTOCK
- 5%
3800 €
Woodbrass price
3999 €
or
icon-cart Add
favorite_border
Online : immediate shipping
shipping icon
Shipping: from 10000 €
warranty icon
This item is warranted for 3 years
reference icon
Ref.: 416441

Similar items

How Woodbrass rates it

A B-Stock product may have slight cosmetic defects such as traces of use, micro-scratches or minor bumps, and its original packaging may be altered or replaced. These imperfections in no way affect its functionality or use.

Description

WARNING this is a Stock B item, find the description of the new product belowStock-B Product Details: signs of use: NO USER MANUAL / MINOR SCRATCHES
Only 1 product available

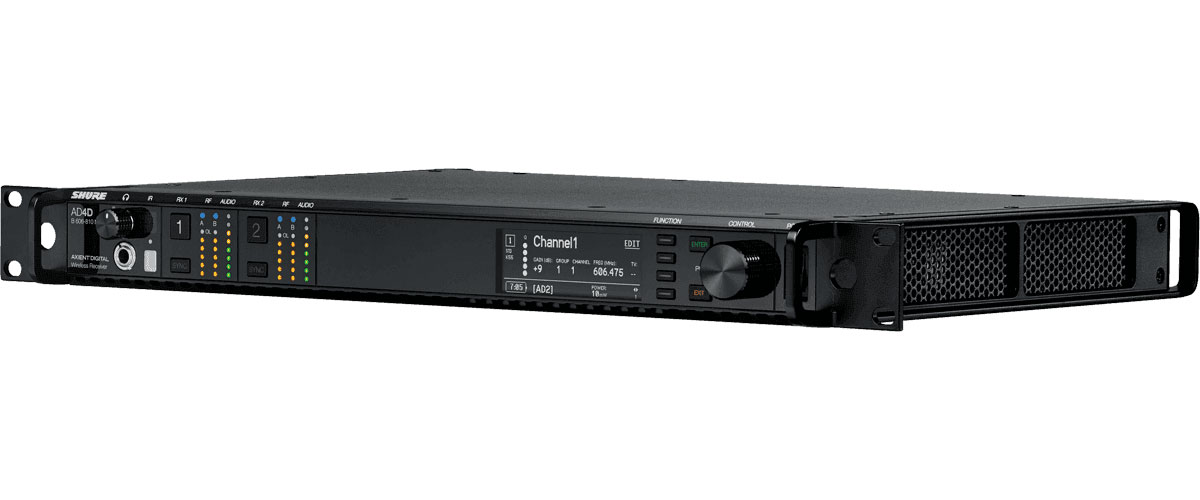

True Diversity digital receiver with two channels in a 1U/19-inch format with universal internal power supply. Switchable analog XLR outputs for mic/line. Power and control lock. Single display to centralize information with three possible views. Advanced headphone monitoring circuit with CUE and BROWSE functions. It comes with front antenna remote, an Ethernet cable, 4 BNC straps, a locking power cord, a male-female power strap, and a pair of wideband half-wave antennas.


Specifications

  • - Interchangeable capsule: No
  • Display screen: No
  • Additional specs:
  • RF bandwidth: 184 MHz (usage limited to 694 MHz in France)
  • Number of compatible channels per 8 MHz TV channel:
  • 23 in standard mode
  • 63 in high-density mode
  • Group and channel frequency scanner
  • Interference detection with alerts
  • AES-256 encryption
  • Transmitter sync via IR link
  • A/D and D/A conversion: 24 bits – 48 kHz
  • Analog output audio dynamic range: > 120 dB A-weighted
  • Dante/AES output audio dynamic range: > 130 dB A-weighted
  • Latency: 2 ms (standard mode) – 2.9 ms (high-density mode) Receiver features AD4D and AD4Q
  • Compatible with AD and ADX series transmitters
  • Combined True Diversity digital reception
  • High-density mode for more frequencies
  • Interference avoidance (ADX transmitters)
  • Frequency Diversity function (AD1, ADX1, ADX1M, ADX2FD transmitters)
  • Audio and RF bargraph with peak indication
  • Digital RF signal quality indication
  • Talk Switch function (ADX transmitters)
  • Cue functions allowing monitoring via Dante network of different channels
  • Browse functions allowing monitoring of any Dante device on the network
  • Password access control
  • 400 Hz / 1000 Hz audio generator with level control
  • Analog audio outputs: transformer-isolated balanced XLR and 6.35 mm jack
  • Digital audio outputs: AES and Dante (with or without redundancy)
  • Word Clock input/output: 48 kHz or 96 kHz frequency
  • RF cascade ports
  • Quadversity function: cascade ports switched as inputs C and D (AD4Q only)
  • Configurable 4-port Gigabit switch including 2 PoE ports
  • Split redundant mode: 2 Ethernet ports / 2 Dante ports
  • Switched mode: 4 Ethernet / Dante ports
  • Network management with Wireless Workbench and ShurePlus Channels
  • Power supply unit / 24 V DC optional Provided with the receiver:
  • Screw kit
  • Through-adapter, BNC
  • Wideband half-wave antenna (2) Varies by region
  • Short BNC-BNC coaxial RF cable for through mounting
  • Long BNC-BNC coaxial RF cable for through mounting
  • Cascade coaxial RF cable
  • Locking AC power cable
  • Flying AC power cable
  • 3 ft Ethernet cable
  • Flying Ethernet cable
    • Brand reference number: SSR AD4DE-B_4
