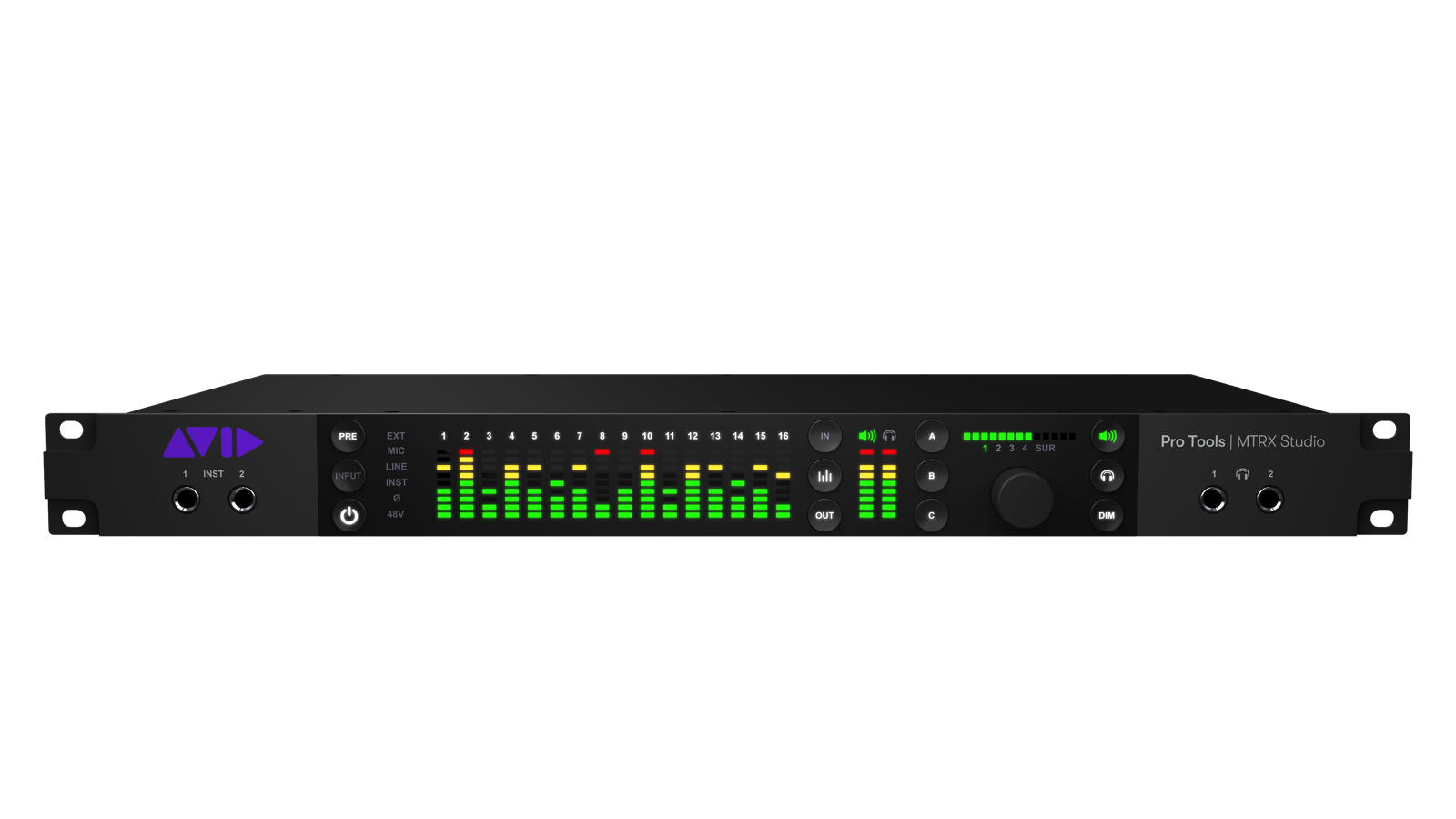

Essential Information About the Avid MTRX Studio Audio Interface
- Native Pro Tools | HDX and HD Native Compatibility via 2 DigiLink ports (up to 64 I/O) for ultra-low latency streams.
- Ultra-flexible 512x512 Routing with digital matrix and summing to create custom monitoring profiles, up to Dolby Atmos.
- All-in-one Modern Connectivity: 16 analog I/O on DB25, 16 ADAT, 64 Dante, mic/instrument inputs, and 2 balanced monitor outputs.
- Built-in SPQ Calibration with 256 filters and delay management for precise control of your listening room.
At the Heart of Avid's Range for Modern Studios
Positioned as the "Swiss Army knife" solution of the Pro Tools ecosystem, the MTRX Studio combines conversion, advanced routing, audio-over-IP networking, and multichannel monitoring in a single chassis. It simplifies setups that were once spread across multiple units and centralizes control for music and post-production environments.
Designed for Music, Post-Production, and Broadcast
The MTRX Studio targets artistic directors, mixers, and sound designers who demand a flexible architecture. It allows aggregation of multiple sources (mics, instruments, ADAT, Dante), routing them to any destination, and instantly adapting stereo, surround, or immersive monitoring with dedicated monitoring profiles.
Extended Connectivity and Immersive Monitoring Without Compromise
Dante, ADAT, and Analog Network
With 64 Dante channels, 16 ADAT channels, and 16 analog I/O on DB25, you can quickly connect converters, consoles, additional workstations, or dubbing rooms. The 2 instrument inputs and 2 front-panel headphone outputs facilitate quick tracking and monitoring.
512x512 Routing Matrix and Summing
The internal matrix allows routing any input to any output, creating buses, downmix/upmix, and monitoring scenes. Switch from stereo listening to a Dolby Atmos setup in just a few clicks.
SPQ Calibration and UCON Integration
The SPQ module refines your speaker response with 256 filters and delay management. The UCON protocol ensures unified system control for a consistent workflow, whether recording, editing, or mixing.
Technical Specifications
Analog Connections
- 2 front-panel instrument inputs on 6.35 mm jack
- 2 mic inputs on XLR
- 16 analog inputs / 16 analog outputs on DB25
- 2 balanced monitor outputs on 6.35 mm jack
- 2 front-panel headphone outputs
Digital Connections
- 16 ADAT in/out
- 2 DigiLink ports with 32 in/out each (total 64 in/out)
- Sampling rates: 44.1 kHz to 192 kHz
Audio Network
- 64 Dante in/out
- Dante synchronization
Routing and Monitoring
- 512x512 digital matrix
- Summing matrix for monitor profile management
- Built-in SPQ monitor calibration with 256 filters and delay management
Control and Integration
- Integrated UCON protocol
- Pro Tools | HDX and HD Native compatibility via DigiLink
Clocks and Synchronization
- Word Clock and Loop Sync via BNC
