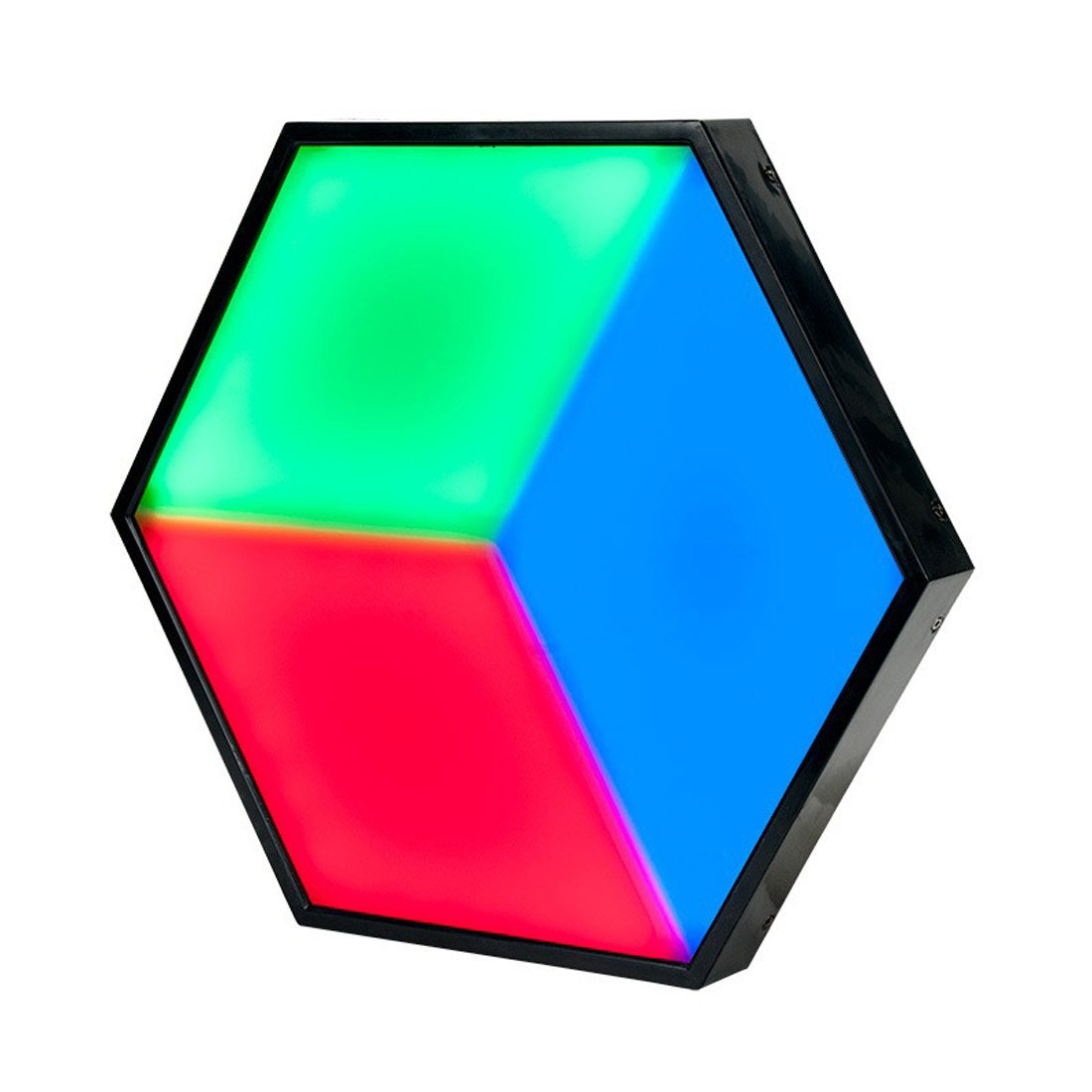

ADJ - 3D VISION PLUS
Hexagonal LED panel creating fantastic visual effects when used in multiple units. Designed for Clubs, Bars, Amusement Centers, stages, festivals, and mobile DJs. The 3D Vision Plus includes a 4-button navigation LCD display. Direct control via DMX. Art-Net or KlingNet control requires the use of ADJ's EZ-Kling. Connect multiple panels together via Locking Power inputs/outputs and RJ45 ports for DMX data transmission using the 3-pin RJ45-DMX adapter (1154000037 ACRJ453PFM, sold separately). The panels assemble with quick-lock connectors. For suspension on structures, rigging bars are also available. On the back of the panel, there is an M10 for attaching a hook to hang the panel on 50mm structures as well as 4 holes for wall mounting.
Measuring 400mm x 400mm, the front face of the 3D Vision Plus is composed of an acrylic panel diffusing light emitted from 72 integrated 3-in-1 RGB LEDs across three different zones simulating a 3D cube effect with a viewing angle of 180 degrees.
Features:
- 3D effect LED panel. Use multiple units to create dynamic effects
- Modular system allowing different configurations
- Quick suspension system for easy assembly/disassembly
- 10mm threaded hole on the back for mounting a hook on structures
- Control protocol: DMX512
- 3 DMX modes: 3, 9, and 13 DMX channels
- Master/Slave configuration
- 3 operating modes: Music Mode, Auto Mode, and DMX Mode
- Data connection: Locking RJ45 input/output (DMX protocol only)
- Dimensions: 400x400x68mm
- Number of LEDs/unit: 72 pieces
- LED type: 5050 SMD, 3-in-1 RGB
- Locking Power input/output
- Safety eyelet on the back
- Maximum power consumption: 13W
- Multi-voltage power supply: 100-265V 50/60Hz
- Weight: 2.74kg
- Front material: frosted white acrylic PVC
- Viewing angle: 180 degrees
- Operating temperature: -20° to +60° C / -4° to 140° F
- Estimated LED lifespan: 50,000 hours
What is included:
- 1 3D Vision Plus panel
- 1 Locking Power In/Out daisy chain cable
- 1 RJ45 network daisy chain cable
- 1 safety sling
Sold separately
- 3-pin Male DMX to RJ45 adapter: 1154000037 ACRJ453PM
- 3-pin Female DMX to RJ45 adapter: 1154000038 ACRJ453PFM
- 5-pin Male DMX to RJ45 adapter: 1154000040 ACRJ455PM
- 5-pin Female DMX to RJ45 adapter: 1154000039 ACRJ455PFM
- Rigging Bar: 1226300062 3D VISION RB1
- Panel Lock: 1226300063 3D VISION PL
- Control software: 1310000051 MyDMX3.0
- Power and extension cables of various lengths
