How Woodbrass rates it
? Control 8 LED fixtures up to 8 channels each? Free patchable channels? Total fixture control by 8 faders? 16 Scenes & 16 Chases ? 2 Aux channels to connect foggers and strobes
Description

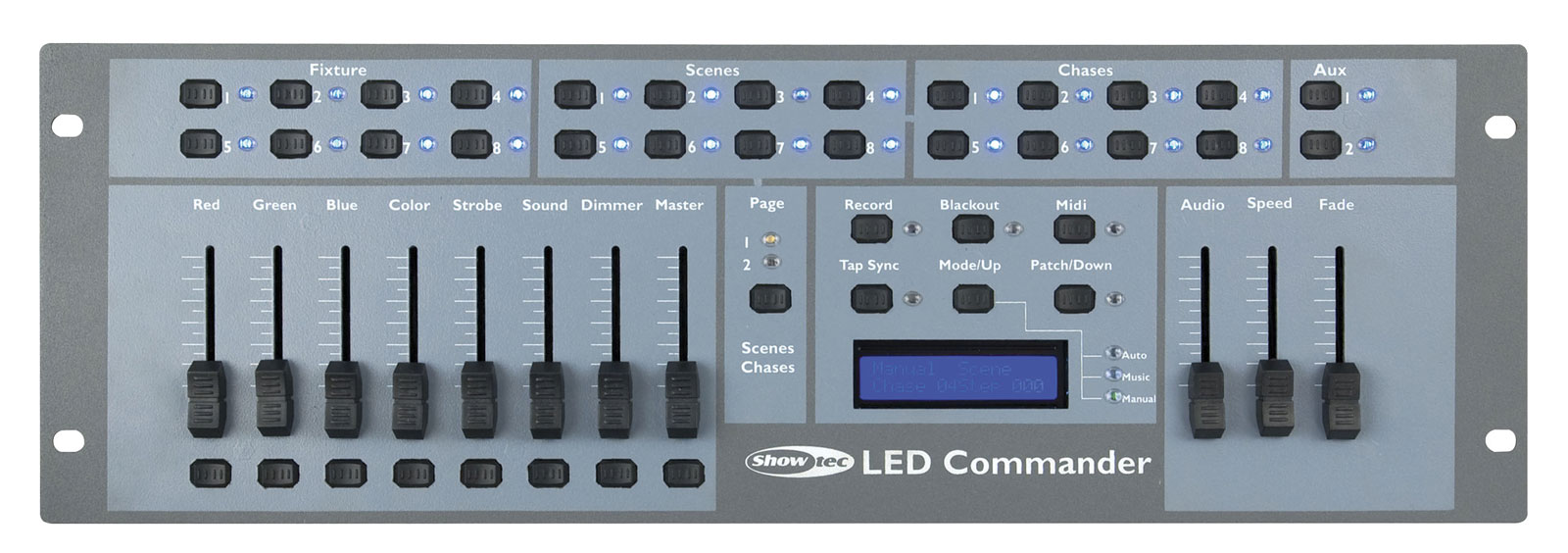

The LED Commander is a truly versatile LED Controller which can control nearly every LED Parcan on the market. It can control up to 8 different group of fixtures simultaneously. In order to control each function it has 8 faders. Each fader can be patched to the desired function. Furthermore the unit has 16 scenes (8 scenes on 2 pages) and 16 chases (8 chases on 2 pages). Moreover, it is equipped with 2 Auxiliary channels to connect your fogger or strobe. In order to make programming easy and simple the LED Commander is equipped with a bright and clear LCD display.
Specifications
Display: 2x 16 Character LCD DMX connector: XLR 3 Pole Midi connector: 5p DIN (IN/OUT/THRU) USB connector: 5V (light device) Audio input: RCA 100mV – 1Vpp DMX channels: 8 x 16 & 2 aux, 130 total Max steps in chase: 1750 Max total steps: 1750 Dimensions: 482x 156 x 75mm (LxWxH) 19" rackmountable: Yes Weight: 2,48Kg Power comsumption: 20Watt DC input: 9-12V 800mA Power supply: AC-12V (included) European flat groundless plug power adapter Weight (including packaging)2,9 kg Dimensions (packaging included)50,0 x 20,0 x 10,0 cm
