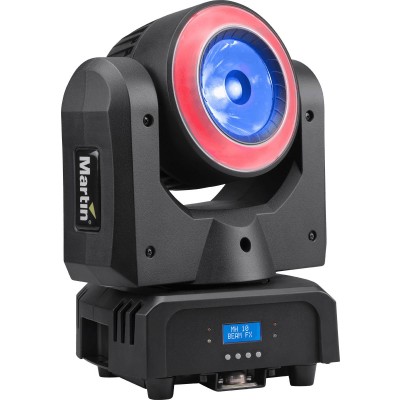

Description
Physical data
Dimensions: 275 x 188 x 325 mm Weight : 7.5 kg
Dynamic effects
Color composition, beam: RGBW Color composition, ring: RGB, grouped or 24 individual pixels Virtual color wheel: 33 colors, virtual rotation effect, random colors (independent ring and beam) Pre-programmed effects: FX (macros) on the ring at programmable speed and direction, synchronization and dowels on multiple devices Dimming: 0-100%, fast and fine adjustment (ring and independent beam) Electronic shutter: Strobe, pulsations, black and full dry fire (independent ring and beam) Pan: Continuous rotation or 540° indexing Tilt: Continuous rotation or 270° indexing Stroboscope: Adjustable 3 - 20 Hz, pulse and random mode Electronic dimmer: 0 - 100%, 4 dimming curves
Optics
Beam source: Osram 60 W RGBW LE RTDUW S2WP Ring sources: 24 LED 0.25 W RGB Beam width: 4.4°. LED life: 20 000 h (>70% of initial flux)* Values obtained under manufacturer's test conditions
Control and programming
Control options: DMX, RDM, standalone mode, Master/Slave DMX channels: 24 or 93 Stand-alone mode options: Musical or stand-alone Autonomous mode capacity: 4 animations Addressing and configuration: Backlit LCD control panel Pan & Tilt Speed: Adjustable via DMX or control menus DMX compatibility: USITT DMX512/1990 RDM compatibility: ANSI/ESTA E.120
Construction
Color: Black Body: Fire-resistant thermoformed plastic Protection class: IP 20
Installation
Mounting point: 1/4 turn base for standard hook Placement: Dry sites only. Fixed to a structure or surface Orientation: All Minimum distance to illuminated surfaces: 200 mm Minimum distance to combustible materials: 100 mm (4 in.) Minimum space around vents and ventilations: 100 mm
Connections
Power supply (input and recopy) : Neutrik powerCON TRUE1 DMX/RDM input/recopy: XLR 3 and 5 pins
Electricity
Mains: 100-240 V nominal, 50/60 Hz Power supply : Self-adaptive switching electronics Fuse : T 2.0 A Typical current and power: 0.49 A, 108W. FP 0.99
Measurements at rated voltage, all LEDs at full current. Consider a deviation of +/- 10%.
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
CEM EU : IN 55015; IN 55032; IN 55103-1,-2; IN 61000-3-2,-3; IN 61000-4-2, -4, -5; IN 61547
Thermal data
Cooling: Forced air (regulated temperature, silent) Maximum ambient temperature: 40° C Minimum ambient temperature: 0°C
Supplied accessories
Power cable, 1.5 m (4.9 ft.) 18AWG/0.75mm2 without plug Omega base for standard hook
Accessories
Power supply cables, 16 A, for mains connection
Power cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 NAC3FX-W without plug, 1.5 m : P/N 91611797 Power cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 NAC3FX-W without plug, 5 m : P/N 91611786 Power cable, SJOOW, AWG 12, Neutrik TRUE1 NAC3FX-W without plug, 1.5 m : P/N 91610173 Power cable, SJOOW, AWG 12, Neutrik TRUE1 NAC3FX-W without plug, 5m : P/N 91610174
Copy cables, 16 A, for cascade wiring
Power cable, H07RN-F, 2.5 mm2, Neutrik TRUE1 to TRUE1, 0.45 m : P/N 91611784 Power cable, H07RN-F, 2.5 mm2, Neutrik TRUE1 to TRUE1 1.2 m : P/N 91611785 Power cable, H07RN-F, 2.5 mm2, Neutrik TRUE1 to TRUE1 2.5 m : P/N 91611796 Power cable, SJOOW, AWG 12, Neutrik TRUE1 to TRUE1, 0.45 m : P/N 91610170 Power cable, SJOOW, AWG 12, Neutrik TRUE1 to TRUE1, 1.2 m : P/N 91610171 Power cable, SJOOW, AWG 12, Neutrik TRUE1 to TRUE1, 2.5 m : P/N 91610172
