Create a wireless connection with any active speaker
Description

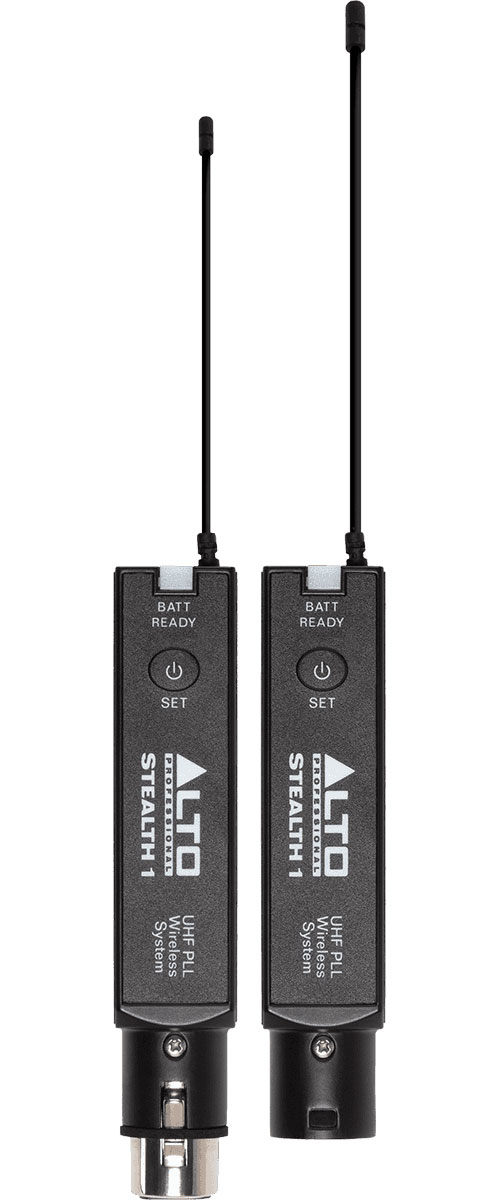

Professional Stealth 1 Mono XLR UHF Wireless System
Alto Professional's easy-to-use Stealth Wireless System replaces hundreds of meters of audio cables with a reliable wireless connection. Compatible with all active loudspeakers, as well as traditional passive loudspeaker/amplifier setups, this expandable two-channel system delivers interference-free sound.
Save time. Save money
Enjoy faster setup and teardown, and eliminate complicated or unsightly cable runs, anywhere. The Stealth Wireless system quickly creates a robust, invisible connection between the output of your mixer or DJ controller and the inputs of your active speakers. There is no need to meander, secure or hide wiring during installation. After the show, just unplug the system and go, without having to wind up the cables at the end of the evening.
This complete system, ready to use, contains a stereo transmitter (2 channels), as well as two single channel receivers. The transmitter is equipped with XLR+1/4" combo inputs to accommodate almost any type of mixer or other audio source. Each receiver has a single XLR output. Two XLR cables are included. The Stealth Wireless includes also an assortment of mounting hardware, used to secure the receivers in place.
Easy Setup
First, connect the transmitter. Connect the main outputs of your mixer or DJ controller to the Stealth Wireless transmitter, using the XLR or 1/4" inputs.
Then connect the receivers. Take the XLR output from the Stealth Wireless Receiver and connect it to the input of your active speaker, or the input of your amplifier/speaker combination. Repeat this step for the second receiver.
Turn on the transmitter first, then the receivers. It's as simple as that. Select one of 16 reliable UHF channels to minimize interference. The squelch control can be manually set to one of three levels for optimal performance. If your needs change, you can add more receivers to your system with the Stealth Wireless Expansion Pack.
Features
Add wireless audio connectivity to any active speaker
Enjoy faster setup and teardown
Eliminate complicated cable runs
Two-channel transmitter (x1) with two XLR+1/4 outputs
Single channel receivers (x2) with XLR output (per unit)
Replaces up to 200' of console-to-system wiring
No compromise on audio quality
Reliable UHF band; 16 selectable channels
Adjustable squelch eliminates interference
Expand your system using the Stealth Wireless Expander Pack* (sold separately)
Transmitter: (2) XLR+1/4 combo inputs
Receiver: (1) XLR output (per receiver)
Technical characteristics
Issuer:
Type: Two Channel Transmitter
RF frequency: 540 - 570 MHz
Oscillation type: PLL
Preset channels: 16 channels (stereo)
Frequency response: 50Hz ~ 17kHz / 3dB
Bandwidth: 24 MHz or 30MHz
Frequency stability: 0.005%.
Frequency deviation: 20 kHz
LED Indicators: Power On/Off, Sig/Clip
Power supply External adapter, 12 VDC/300 mA
Output power: ＜10mW
Controls: Power Switch, Channel Select, Mono/Stereo Switch
Dimensions: 6.32 x 5 x 4 inches (with antennas)
Weight: 10.2 ounces (290 grams)
Receiver:
Type: Single Channel Receiver
Preset channels: 16 channels
RF frequency: 540 - 570 MHz
S/N ratio: ＞100dB/A
RF Sensitivity: -100dBm
Image rejection: ＞70 dB
T.H.D. : ＜ 0.5％ ﹫1kHz
LED indicator: Power on, RF/AF LED indicator
AF Output Impedance: 660Ω Balanced
Squelch: 3 steps and pilot tone
Operating voltage: 12VDC，300mA
Dimensions: 4.58 x 2.74 x 1.24 inches (with antenna)
