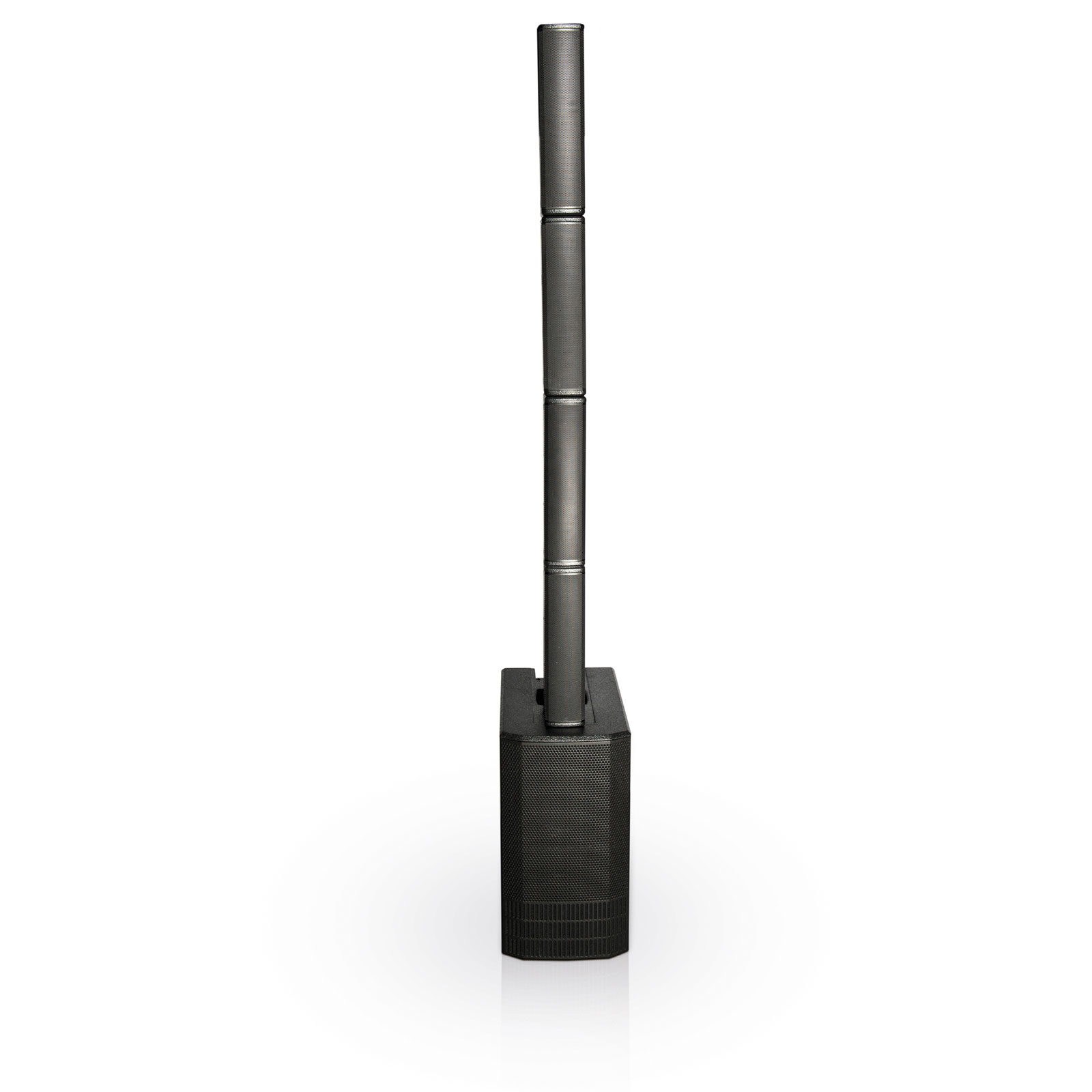

Essential Information About the dBTechnologies ES 1203 Active Stereo Sound System
- Tri-amplified 2400 W peak column system with 2 x 12" subwoofer and two 4 x 4" tops.
- Advanced DSP with OLED interface, 3 configuration modes (mono, stereo, double column) and 2 directivity modes (near, far).
- 5-channel digital mixer, combo MIC/Instrument/Line inputs, balanced XLR output, and integrated Bluetooth.
- Quick setup, plywood enclosures, carrying bags and transport accessories included.
A Versatile Member of the "ES" Family by dBTechnologies
Designed to deliver professional sound reinforcement in a compact format, the ES 1203 combines two passive wooden satellites and an active subwoofer. Its latest generation Digipro G4 amplification and column architecture ensure controlled coverage and excellent intelligibility, while remaining easy to deploy on stage or in installations.
Who Is It For and What Are Its Uses?
The ES 1203 is aimed at mobile DJs, acoustic bands, rental companies, conferences, and venues hosting spoken word events. In stereo on stands or in mono with coupled columns, it adapts to the room and event, from intimate cocktails to live performances requiring extended reach.
Key Technologies and Features
Each satellite houses 4 x 4" drivers aligned in a Logarithmic Curved Column Array, offering asymmetrical vertical coverage and widened horizontal dispersion thanks to dedicated phase plugs. The 56-bit DSP provides guided presets, equalization, near/far modes, and the choice of mono, stereo, or double column via an intuitive OLED screen.
The integrated mixer handles up to three microphones simultaneously via XLR/Jack combos, one MIC/Instrument channel with anti-feedback filter and 3-position gain, plus a stereo Bluetooth channel. The balanced XLR output can serve as a link, auxiliary, or left/right send to a second ES 1203 in double column mode. The package includes a subwoofer bag, tops bag, 35 mm telescopic pole, two 7 m Speakon cables, and power cable for a ready-to-use solution.
Technical Specifications
Technical Data
- System type: 3-amplifier stereo system with two full-range speakers and one subwoofer
Acoustic Data
- Frequency response (-10 dB): 35 - 20,000 Hz
- Max SPL level: 132 dB
- MF/HF section: 8 x 4", 1" voice coil
- MF/HF type: Neodymium
- LF: 2 x 12"
- Directivity: 97 x 60
Amplifier
- Technology: Digipro G4
- Class: D
- Peak power: 2400 W
- Controls: 1 x OLED screen with rotary encoder and button, 1 x audio signal control LED, 1 x USB port (service data)
- Power supply: Full range with PFC
- Power connection: VDE socket
- Cooling: Convection
Processor
- Controller: 56-bit DSP
- AD/DA conversion: 24 bit / 48 kHz
- Limiters: Peak, RMS, thermal
- LF-MF crossover frequency: 160 Hz
- Directivity modes: rise / fall / distance
Inputs / Outputs
- 1 x combo microphone/instrument input (XLR/Jack)
- 2 x combo MIC/Line inputs (XLR/Jack)
- Integrated Bluetooth audio receiver (stereo)
- Mix output: 1 x balanced XLR (mix/monitor/aux; left/right in double column mode)
Mechanical
- Subwoofer enclosure: Plywood with full metal grille
- Top enclosures: Plywood with full metal grille
- Pole mount: 36 mm (M20 thread)
- Subwoofer handles: 1 x top and 1 x side
- Top dimensions (W x H x D): 110 x 460 x 160 mm (4.33" x 18.11" x 6.30")
- Subwoofer dimensions (W x H x D): 360 x 680 x 545 mm (14.17" x 26.77" x 21.46")
- Top weight: 3.3 kg (7.27 lbs)
- Subwoofer weight: 29.3 kg (64.59 lbs)
