DB Technologies ES 503

Stereo system with 3 DB technologies ES 503 amplifiers

The ES503 is a 1000W Power Amp Peak sound system composed of 2 Full-strain Slavic 4x tops and a subwoofer Master 12 ". The components and the design of dbtechnologies allow an amazing SPL/Size ratio: 95x355x137 mm and 1.9 kg for the tops and 465x400x430mm 16.4 kg for the subwoofer for a global SPL of 121 dB. The Subwoofer hosts an Digipro G3® amplification module with Auto-strain PSU and a 3-channel blender with Bluetooth connection. A powerful DSP manages all the functions of the on -board digital blender, making ES503 a real jewel in terms of sound performance and versatility. The internal design of the toupies allows asymmetrical vertical coverage (thanks to the LOGARITHMIC CURVED COLUMN Array technology) and a single "double ring" phase socket widens the horizontal cover and guarantees perfect voice intelligibility. This allows ES503 to adapt to all situations, whether with an audience seated or standing.

ES503 is the most eclectic of portable systems, allowing 3 different configurations adapted to hundreds of different occasions:

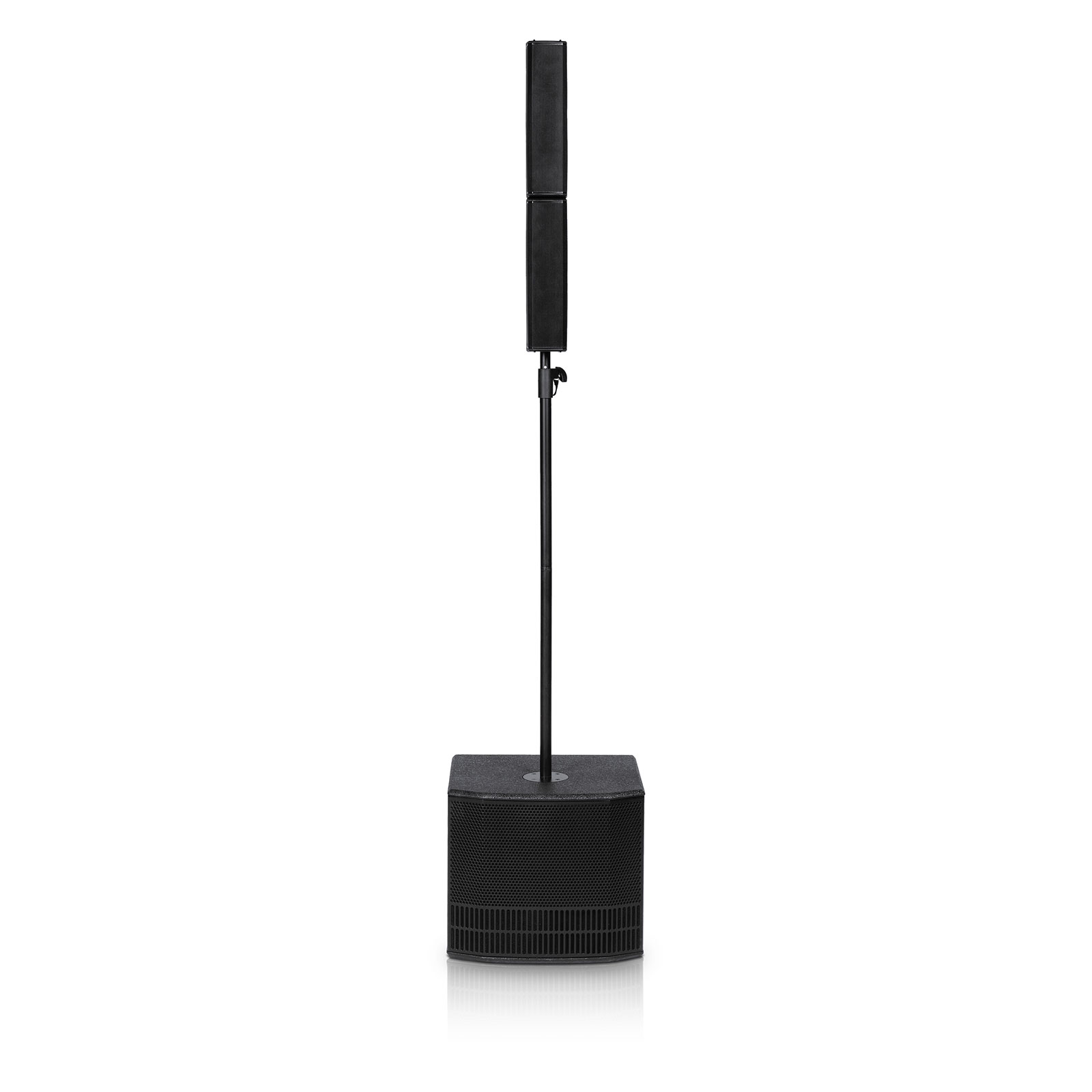

? 1 Mono mode: The two satellites are connected in top-on-Top (thanks to a fast and easy zipper connection system) and are placed on the subwoofer through a D25mm pole.
? 2 Stereo Mode: Each satellite is placed on a tripod.
? 2b Stereo mode: 1 satellite on a pole, 1 on a tripod

3 Double column mode: an ES503 system in mono mode becomes the master of a second ES503 supplying the signal thanks to the integrated symmetrical output channel. In this way, the two systems are controlled by the master's mixer and any configuration is guided by the Master's OLED screen.

The ES503 is equipped with a three -channel mixer, and an integrated bluetooth ? stereo module, which receives audio of devices such as mobile phones, tablets or any other audio device.

The Bas-Reflex Basse box houses a 12-inch woofer and the amplification module. In addition to the input connectors and the user interface controls, there are two Speakon outputs and a VDE power connector. The robust and elegant case is made of birch plywood covered with a durable black layer and stripes resistant, which makes it really ready for the road. Two handles (one side) facilitate transport.

Characteristic:

? Stereo system with 3 amplifiers
? 2 Fullrange tops+1 active subwoofer
? HF-MF 8x3 "(for each speaker)
? L F 12 "(for each speaker)
? Crest power of 1000 W
? Max 121 DB SPL
? Stereo or mono configuration
? OLED display interface
? Integrated 3 -channel mixer
? 3 input channels (micro/instrument/line)
? Customizable output channel (mix/monitor/aux)
? Bluetooth stereo streaming

Technical characteristic:

Technical data
? Type of stereo system speaker with 3 amplifiers with two full range speakers and a subwoofer

Acoustic data
? Frequency response [-10dB] 37 - 15,000 Hz
? NPA max121 DB
? MF - HF8X 3
? MF type - Hfneodymium
? LF12 inch
? Directivity 95x65

amplifier
? Amplidigipro® G3 technology
? Ampliclass-D class
? Crest power of the amplifier1000 W

Processor
? 24 -bit/48 kHz controller
? Presets of the factory preference system + defined by the user
? Active, ridge, rms, thermal limit
? Crossover frequency LF-HF206 Hz

Entrance
? Micro/instrument channel1x Combo (XLR/Jack) Symmetrical/asymmetrical input
? Line channels2x Symmetrical/Asymmetrical Combined Inputs (XLR/Jack)
? Integrated Bluetooth® Média1x Recipter Channel
? Mixing outlet1x XLR symmetrical outlet

mechanical
? Case (subwoofer) plywood from 15 mm painted in black
? Polypropylene pp polypropyle
? Handles2x side side (subwoofer)
? Width (above) 95 mm (3.74 in)
? Height (top) 360 mm (13.98 in)
? Depth (above) 137 mm (5.39 in)
? Width (subwoofer) 465 mm (18.3 in)
? Height (subwoofer) 400 mm (15.7 in)
? Depth (subwoofer) 430 mm (16.9 in)
? Weight (upper part) 1.9kg - 4.19lbs
? Weight (subwoofer) 16.4kg - 36.16lbs
? Stereo system with 3 amplifiers
? 2 Fullrange tops+1 active subwoofer
? HF-MF 8x3 "(for each speaker)
? LF 12 "
? 1000W of ridge power
? Max 121 DB SPL
? Stereo or mono configuration
? OLED display interface
? Integrated 3 -channel mixer
? 3 input channels (micro/instrument/line)
? Customizable output channel (mix/monitor/aux)
? Bluetooth® stereo streaming

Technical characteristic:

Technical data
? Type of speaker: 3-lamp stereo system with two full-strang tops and a subwoofer

Acoustic data
? Frequency response [-10dB]: 37 - 15,000 Hz
? Maximum acoustic pressure level: 121 dB
? MF - HF: 8x 3 "
? HF coil: Neodymium
? Directivity (HXV): 95x65 °

amplifier
? Amplifier technology: Digipro® G3
? Amp class: Class-D
? Crest power: 1000 W

Processor
? Controller: DSP 24 bit/48 kHz
? System preferences: factory preferences + defined by the user
? Limiter: Dual Active, Peak, RMS, Thermal
? LF-HF cross frequency: 206 Hz

Entrance
? MIC/Channel instrument: 1x combo (XLR/Jack) Balanced/Unspected input
? Line channel: 2x Combo inputs (XLR/Jack) balanced/unpaid
? Media Channel: 1x Integrated Bluetooth® receiver
? Mix output: 1x xlr balance output

mechanical
? Box (subwoofer): 15mm plywood painted black
? Box (tops): Polypropylene pp
? Handle: 2x side side (subwoofer)
? Width (above): 95 mm (3.74 in)
? Height (above): 360 mm (13.98 in)
? Depth (above): 137 mm (5.39 in)
? Width (subwoofer): 465 mm (18.3 in)
? Height (subwoofer): 400 mm (15.7 in)
? Depth (subwoofer): 430 mm (16.9 in)
? Weight (upper part): 1.9kg - 4.19lbs.
? Weight (subwoofer): 16.4kg - 36.16lbs.
