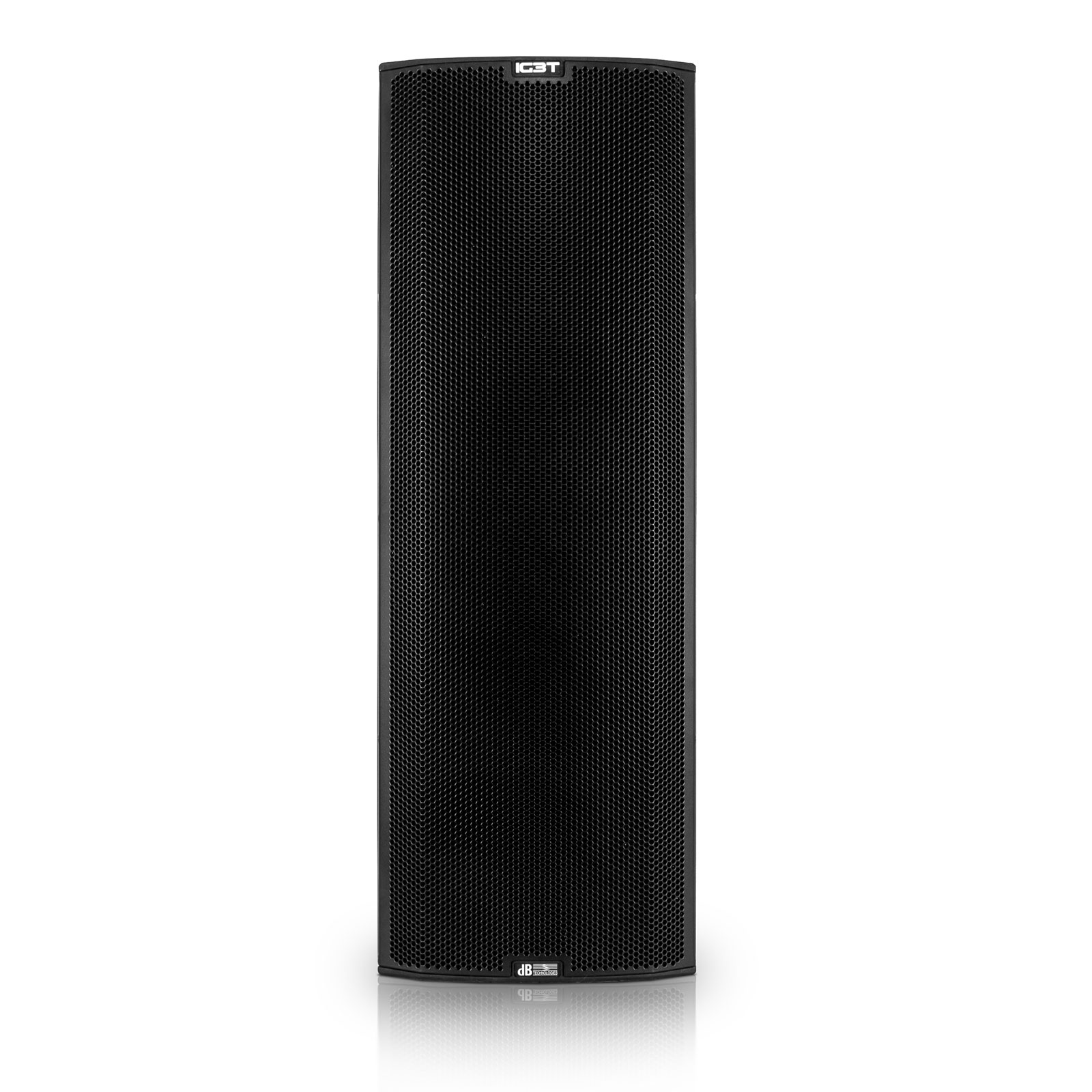

DB Technologies INGENIA IG3T

Register here and stay informed about the next restock

Description

Active pregnant 2 -way DB Ingenia Ig3 T technology t

The Ingenia IG3 T is equipped with 2 low frequency transducers of 10 "and a compression speaker of 1.4".

All models in the series are designed to operate individually, but they can also be coupled by simply turning an enclosure and placing it on the other.

Thanks to infrared technology, Ingenia detects the presence of a second speaker, and an on -board configuration assistant automatically configures the system to ensure the best coverage and the best acoustic consistency.

The design of the ingenia pavilion is symmetrical horizontally and asymmetrical vertically: in this way, the horizontal dispersion is wide and constant while the vertical dispersion is narrow in the upper and wider in the lower part. Thanks to this characteristic, when 2 Ingenias are coupled, high frequencies add up by avoiding any interference. In addition, a sophisticated digital steering function treats each direction of the enclosure in order to adjust the dispersion without moving the case. Thus, the whole public benefits from perfect intelligibility.

Users can easily control the system with an intuitive OLED screen. Indeed, behind this simple interface hides a cutting -edge treatment which manages mixing, the orientation of the cover, the levels of the equalizers and the input devices.

Ingenia can be easily coupled and safely thanks to an LP-IG accessory that adapts to the 4 Ingenia models. In addition, feet and reinforcements on the top and bottom of the enclosure ensure perfect alignment of the speakers, avoiding any incorrect configuration operation.

Ingenia's Flybar DRK-IG adapts to all the enclosures in the series and allows you to fly the coupled speakers in a vertical set.

Characteristic:


? Operates as an autonomous or torque system
? 1.4 "HF 2x10" LF
? 1800W Peak
? CEC pavilion technology (asymmetrical vertical cover)
? Management digital coverage
? Detection of the element position (IR port)
? speakers with neodymium magnets
? OLED DSP interface
? Unique speaker locking system

Technical characteristic:



Technical data
? Type of speaker: 2 -way active speaker

Acoustic data
? Frequency response [-10dB]: 53 - 20,000 Hz
? Frequency response [-6db]: 57-19.200 Hz
? Maximum acoustic pressure level: 132 dB
? HF: 1.4 "
? HF coil: 3 ''
? Directivity (HXV): 110 x 90 ° (+20 °/- 70 °)
? HF type: Neodymium Compression Driver
? Pavilion: vertical asymetric
? cutting frequency: 1100 Hz
? BF: 2x10 ?
? LF acoustic coil: 2.5 "
? LF type: Neodymium

amplifier
? Amplifier technology: Digipro® G3
? Amp class: Class-D
? Crest power: 1800 W
? RMS power: 900 W
? User interface: OLED DISPLAY + Rotative Knob W/Switch
? Self-rotating screen: yes
? Positioning: EPD (element position detection)
? Display screen: yes

Processor
? Controller: DSP 56 bit
? AD/DA converter: 24bit/48khz
? System preset: factory preset + defined by the user
? Limiter: Dual Active Peak, RMS, Thermal
? DSP treatment: FIR linear phase

Entrance
? Signal input: 1 x Combo in (XLR + Jack 6.3mm)
? Signal output: 1 x xlr link out
? USB connector: Yes - Mini USB

mechanical
? Box: polypropylene pp reinforced
? Grid: Full /Invisible Screws
? Stacking: yes
? Handle: yes
? Masting assembly: Yes
? Width: 280 mm (8.98 in)
? Height: 806 mm (8.98 in)
? Depth: 315 mm (12.40 in)
? Weight: 20.8kg (45.86 lbs.)
Brand reference number: 1030102160C
