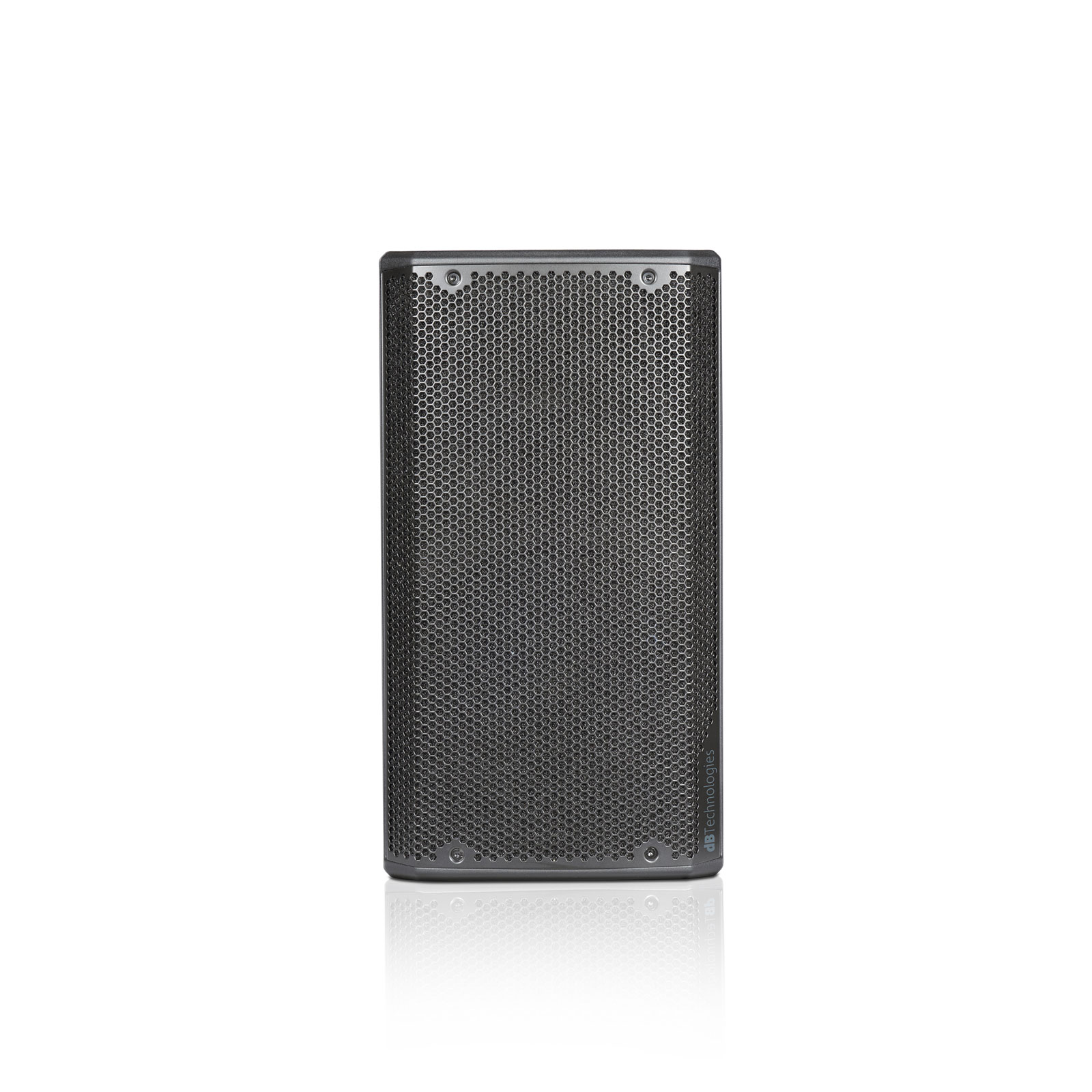

Essential Information About the dBTechnologies Opera 10 Active Speaker
- 600 W RMS / 1200 W peak with Class D amplification for comfortable dynamic headroom.
- Redesigned asymmetric horn offering homogeneous and precise coverage.
- 56-bit DSP with FIR filters and 8 EQ presets for immediate adaptation.
- Two selectable XLR input and output channels, also usable as a stage monitor.
The Opera Series, an Accessible Benchmark in Modern Sound Reinforcement
Designed to deliver clear and powerful sound without complexity, dBTechnologies' "Opera" series has established itself as a reliable choice for musicians, DJs, and professionals demanding a high-performance portable speaker. The Opera 10 sits at the heart of this range with a versatile 10-inch format, easy to transport and capable of reaching a high SPL level while maintaining a balanced timbre.
For Whom and For What Uses?
Ideal for small to medium gigs, rehearsals, bars, conferences, or DJ sets, the Opera 10 excels both as a front-of-house speaker and as a stage wedge. Its lightweight design and pole-mount capability make it practical for quick-deploy events, while its built-in presets facilitate adaptation to vocals, instruments, or music playback.
Acoustic and Electronic Design Serving Clarity
The asymmetric directivity horn optimizes vertical dispersion and horizontal projection so every listener benefits from a consistent spectrum. Advanced digital processing, based on linear phase FIR filters, stabilizes the response and improves mix intelligibility even at high volumes. Class D bi-amplification delivers clean and controlled power, with Peak, RMS, and thermal limiters for effective protection under real conditions. Finally, the dual input and selectable XLR output (CH1 Link or Mix) simplify small setups without a mixer.
Technical Specifications
Features
- Peak power: 1200 W
- Continuous power: 600 W RMS
- Newly designed asymmetric horn
- Advanced DSP with FIR filters
- 2 input channels (Mic-Line / Mic-Instrument)
- Selectable output channel (Link CH1 / Mix CH1+2)
- 8 EQ presets
- Full protective grille, new design
- Can be used as a stage monitor
Technical Data
- Type: 2-way active speaker
Acoustic Data
- Frequency response (-10 dB): 58 - 20,000 Hz
- Frequency response (-3 dB): 70 - 19,600 Hz
- Max SPL level: 128 dB
- HF driver: 1-inch exit, 1.4-inch voice coil, compression driver
- LF speaker: 10 inches, 2-inch voice coil
- Horizontal dispersion: 100 degrees
- Vertical dispersion: 85 degrees (+25 / -60)
- Horn: asymmetric
Amplifier
- Power supply: SMPS with dual voltage range
- Amplification class: Class D
- RMS power: 600 W
- Peak power: 1200 W
Processor
- Controller: 56-bit DSP
- AD/DA conversion: 24-bit / 48 kHz
- System presets: rotary encoder (8 presets)
- Crossover frequency: 2000 Hz
- Limiters: Peak, RMS, Thermal
- Advanced functions: linear phase FIR filters
Inputs / Outputs
- Input CH1: 1 x combo (XLR / 6.3 mm Jack) Mic/Line
- Input CH2: 1 x combo (XLR / 6.3 mm Jack) Mic/Instrument
- Output: 1 x male XLR (CH1 Link or Mix Out, selectable)
Mechanical
- Enclosure: polypropylene
- Grille: full coverage
- Handles: 1 on the left side, 1 on top
- Mounting points: 2 x M10 on top + 1 x M10 at the rear
- Pole mount: 36 mm diameter
- Monitor angle: 45deg
- Dimensions (W x H x D): 300 x 552 x 301 mm
- Weight: 12.3 kg
