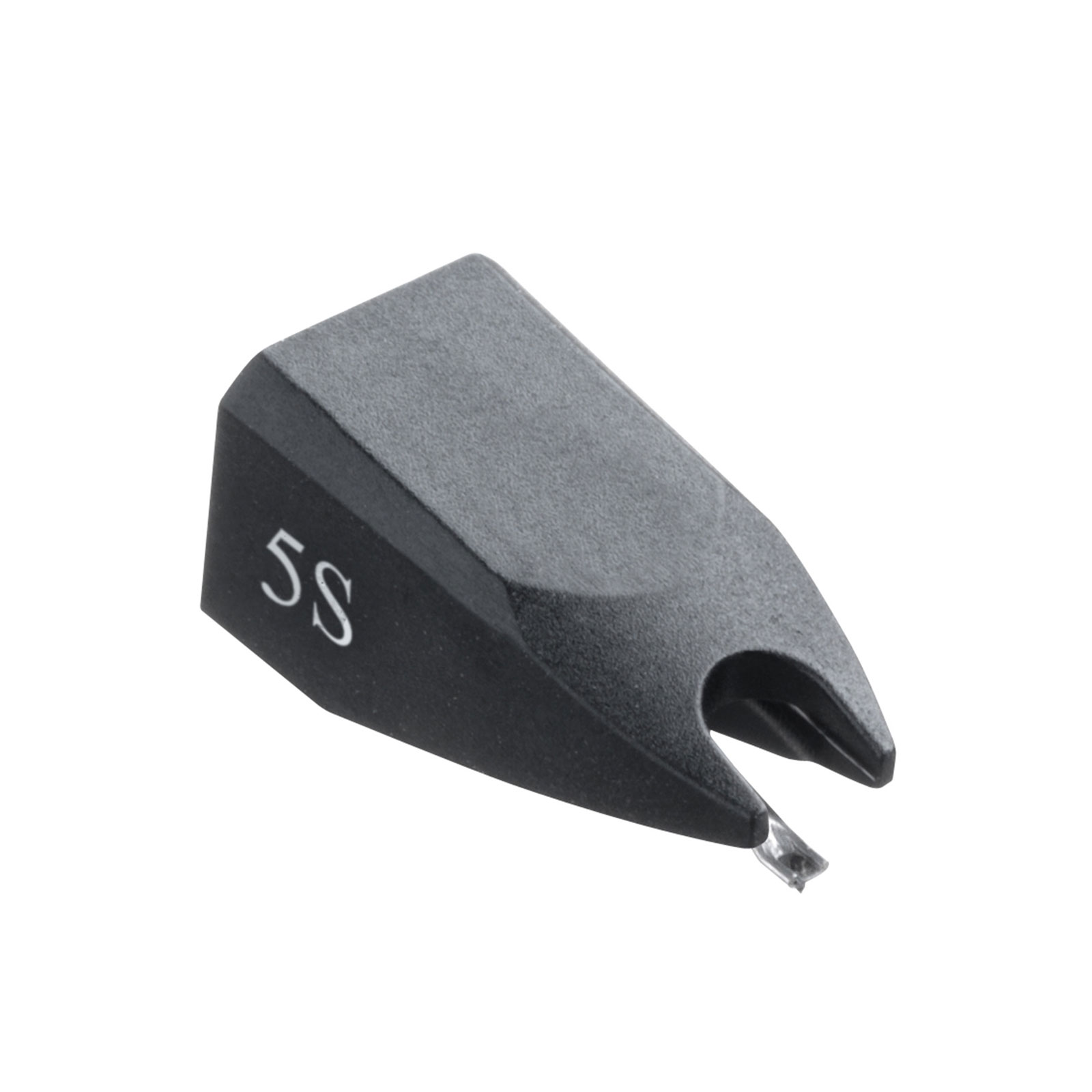

- Diamond: Spherical - Output voltage (1000 Hz, 5 cm/sec.): 4.5 mV - Channel symmetry (1 kHz): 2 dB - Channel separation (1 kHz): 20 dB - Channel separation (15 kHz): 12 dB - Frequency response: 20 - 22000 Hz - Frequency response at -3 dB: 20 - 20,000 Hz - Tracking capacity (315 Hz with recommended tracking force): 60 µm - Compliance, dynamic, lateral: 20 µm/mN - Stylus tip radius: R 18 µm - Tracking force range: 1.5 - 2.0 g (15-20 mN) - Recommended tracking force: 1.75 g (17.5 mN) - Tracking angle: 20° - Internal impedance: 750 ohm - Internal inductance: 450 mH - Recommended load impedance: 47 kOhm - Stylus color: black - Weight with counterweight: 5 g - Weight without counterweight: 2.5 g
Brand reference number:
9032_STY_5S
