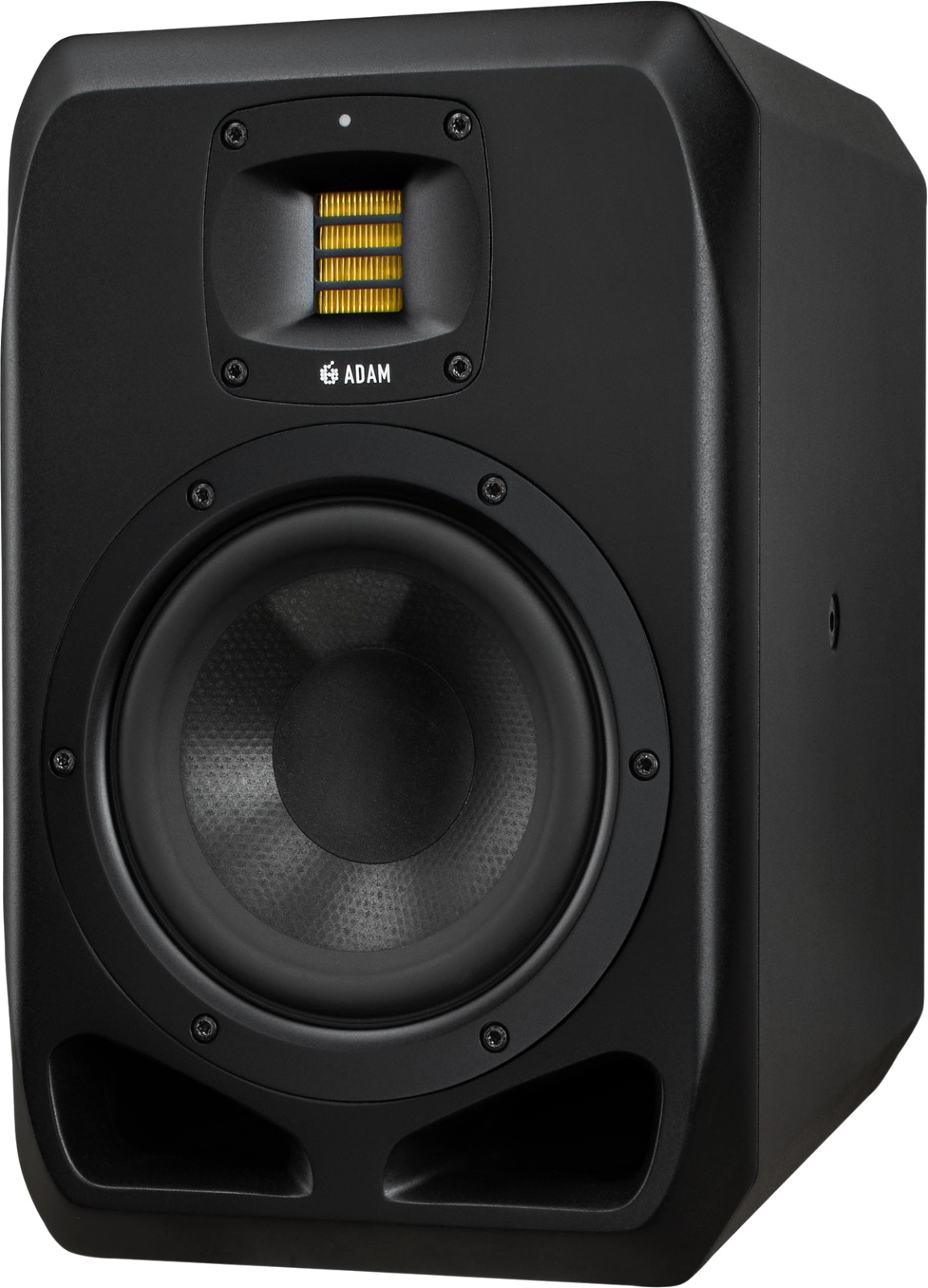

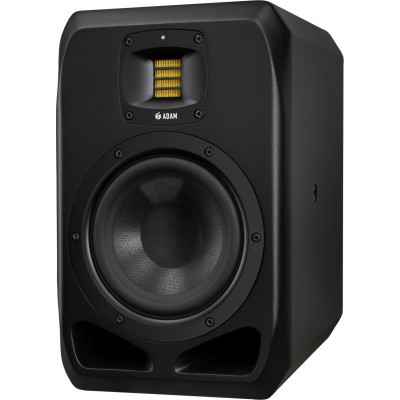

Essential Information About the Adam Audio S2V Monitoring Speaker
- Powerful Bi-amplification: 300 W Class D for the woofer + 50 W Class A/B for the S-ART tweeter, high dynamics and controlled distortion.
- Extended Precision: frequency response from 35 Hz to 50 kHz, up to 120 dB SPL per pair, and stable stereo imaging via HPS waveguide.
- Integrated DSP: optimized crossovers, room equalizer, tweeter limiter, AES3 digital inputs, and USB-updatable firmware.
- New Generation 7-inch Woofer: deep, fast, and controlled bass up to 3 kHz, ideal for nearfield monitoring.
At the Heart of the S Series: ADAM Audio's Reference Nearfield
The S2V is part of ADAM Audio's prestigious "S Series," designed for demanding studios. It carries the brand's DNA with the handcrafted S-ART tweeter made in Berlin and the HPS directivity waveguide, while introducing a completely redesigned 7-inch woofer. Positioned as the nearfield model in the range, it combines compactness with level reserves worthy of professional setups.
Intended Uses and Studios
The S2V targets sound engineers, producers, and creators working in small to medium-sized control rooms. Its spectral precision and coherent imaging facilitate mixing, editing, and pre-mastering tasks. Versatile, it maintains clarity and translation across electronic, urban, pop/rock music, and broadcast formats.
Key Technologies for Uncompromising Monitoring
Drivers and Amplification
The new generation 7-inch woofer delivers deep, tight bass with a wide dynamic range. The S-ART tweeter, combined with the HPS waveguide, expands the listening area while preserving transient accuracy. Dedicated bi-amplification (300 W Class D for the woofer, 50 W Class A/B for the tweeter) ensures optimal control across the entire range.
DSP, Calibration, and Integration
The internal DSP linearizes crossovers, offers a room adaptation equalizer, and integrates a tweeter protection limiter. It also manages signals from the AES3 inputs. Via the USB port, the S2V accepts software updates and can be controlled through dedicated software to save your settings and guarantee perfect consistency between pairs.
Technical Specifications
Drivers & Amplification
- Type: 2-way active nearfield monitoring speaker
- Woofer: 7-inch, new generation S Series
- Tweeter: S-ART (handcrafted) with HPS waveguide
- Amplification: 300 W (Class D) for woofer + 50 W (Class A/B) for tweeter
- Dual active amplification
Performance
- Frequency response: 35 Hz - 50 kHz
- Max SPL: 120 dB (per pair)
- Woofer coverage band: 35 Hz - 3 kHz
Digital Processing & Control
- Internal DSP: optimized crossovers and room adaptation EQ
- Tweeter protection limiter
- Digital inputs: AES3
- Firmware updates and DSP control via USB port and dedicated software
Connectivity & Levels
- Analog input: XLR
- Input impedance: 48 kOhms
- Maximum input level: +24 dBu
Dimensions & Weight
- Dimensions (H x D x W): 346 x 338 x 222 mm
- Weight: 11 kg
Miscellaneous
- Warranty: 5 years after product registration
- Packaging: price per speaker (sold individually)
